CS-4D1S1G1
Changsheng
8465960000

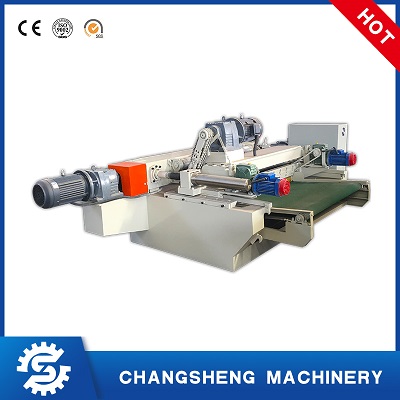

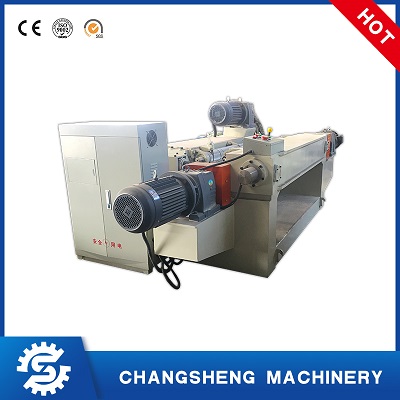

Spindleless veneer peeling machine is used for make veneer .
And it is suitable for the eucalyptus, pine, cotton wood and another log.
The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
Veneer peeling machine is a very technical equipment in plywood line equipment.
Main feature
This machine is used for the low speed rotary cutting of softwood with diameter lower than 500mm,easy to operate.
1,Use cylinder to hit wood core(This model does not, customer can be selected)
2.Alloy lead screw and zinc based alloy nut
3.Easy adjust knife seam function and convenient disassembly
4.The peeled veneer is smooth on both sides
5.Auto trimming function of residual tail plate,thickness error plus and minus 0.05mm
6.Advanced control system and core technology.
7.Automatic speed down when peeling end.
8.Normally the running current only the 50% of the rated current.
9.Rotary cutting knife and shear knife are combination in one machine and work at the same time.A two-in-one structure, peeling and cutting together, reduces both the space and operators.Your costs is greatly lowered.

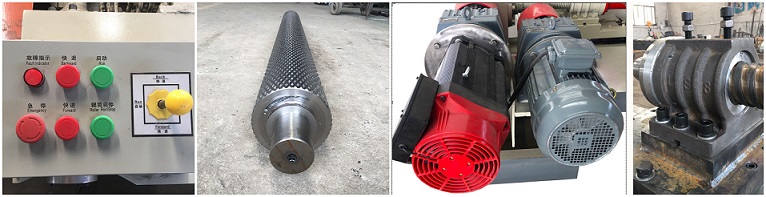

Machine detail
Technical detail
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5 |
| Power of Double Roller Motor | KW | 7.5 |
| Power of Screw Feeding Motor | KW | 7.5 |
| Power of Clipper Motor | KW | 1.5 |
| Power of Rubber Roller Motor | KW | 1.5 |
| Total Power | KW | 25.5 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | 80 | |
| Rubber Roller Reducer | 80 | |
| Segments of single roller | 2 | |
| Segments of double roller | 1 | |
| Diameter of single roller | MM | 125 |
| Diameter of double roller | MM | 125 |
| Peeling Knife Size | MM | (L)1500*(W)140*(T)12.7 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 450 |
| Min. Last Core Diameter | MM | 32 |
| Veneer Output Speed | M/MIN | 43 |
| Veneer Thickness | MM | 0.5-3.0 |
| Machine Size | MM | (L)4420*(W)1950*(H)1700 |
| Suitable for | Poplar, cotton wood, etc |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
Q: A FACTORY OR A DEALERS?
A: We are a factory more than 20 years in making wood based panel machines, not a dealers.
Q: DELIVERY TIME?
A: Generally 20 days after receiving the down payment.
Q: CAN WE GO TO VISIT YOUR FACTORY?
A: Yes, you can visit our factory for free.
Q: SERVICE SYSTEM?
A: One-year warranty, and we supply parts and service all the time.
Q: MOQ?
A: Our MOQ is 1 set.
