Automatic Spindleless 8 Feet Rotary Veneer Peeling Making Machine

The main part of this equipment is fixed by positioning keys without welding points, which makes this equipment run stably, more precisely, with less error of the rotary cutting veneer, more durable, and the accuracy of the general rotary cutting machine is increased by 15%.

Machine Weight:
Veneer Thickness:
Max. Log Diameter:
Quantity:
  • CS-8D2S2G11K-1
  • Changsheng
  • 8465960000

Automatic Spindleless 8 Feet Rotary Veneer Peeling Making Machine


Overview


      The wood peeling machine is the main equipment in the production of plywood. It is a continuous veneer strip that converts logs of a certain length and diameter into a veneer of a certain size after cutting. The veneer rotary cutting machine is closely related to the production and quality of plywood.

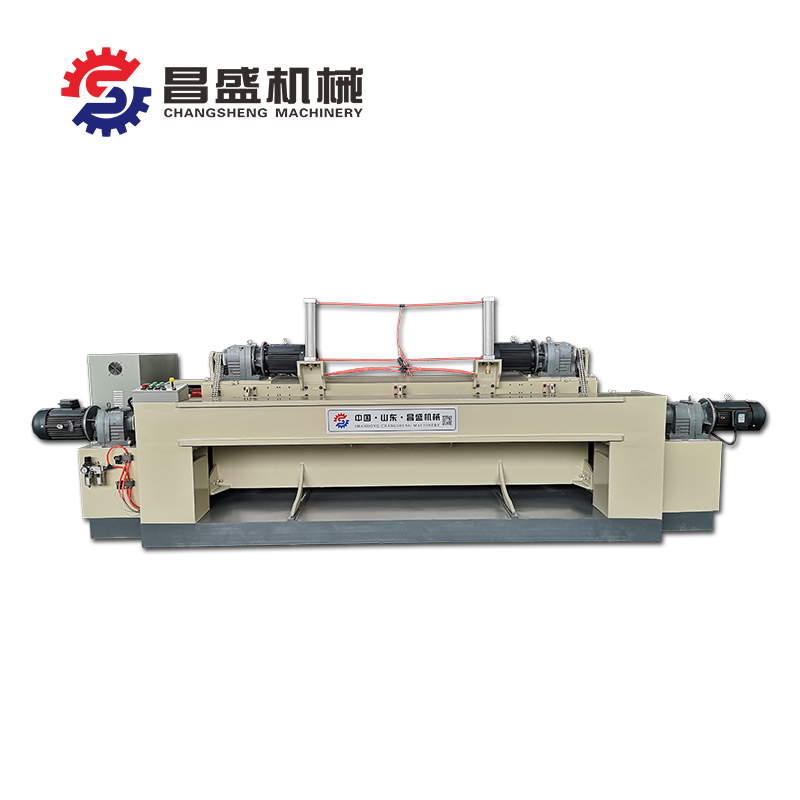

veneer rotary cutting machine

      This rotary cutting machine is a heavy-duty veneer peeling machine with a weight of 15,000 kg, which can guarantee the quality of veneer. It is suitable for hard woods such as eucalyptus, cologne and miscellaneous wood.


       Equipped with touch screen, it is very convenient to change parameters such as thickness.


        The peeling speed is as high as 20-100m / min, and the efficiency is very high.


Product Description

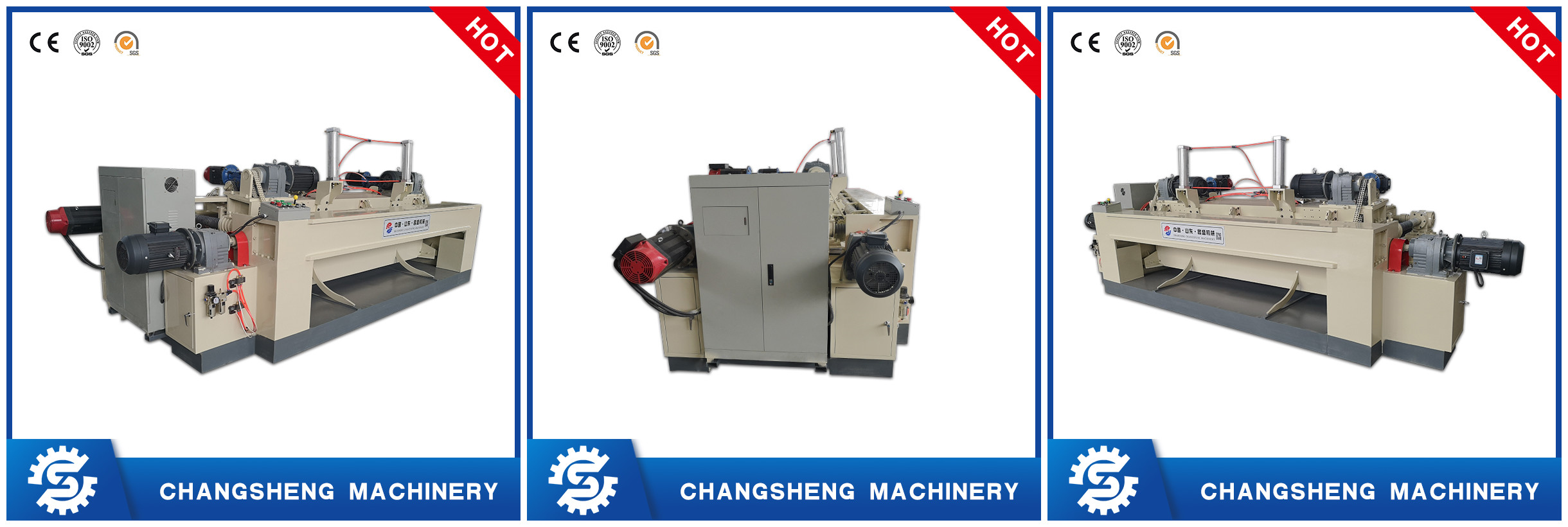

8 feet veneer peeling machine

      The main part of this equipment is fixed by positioning keys without welding points, which makes this equipment run stably, more precisely, with less error of the rotary cutting veneer, more durable, and the accuracy of the general rotary cutting machine is increased by 15%.

      This is just one type of rotary cutting machine we produce, we also have other types of rotary cutting machine for you to choose。

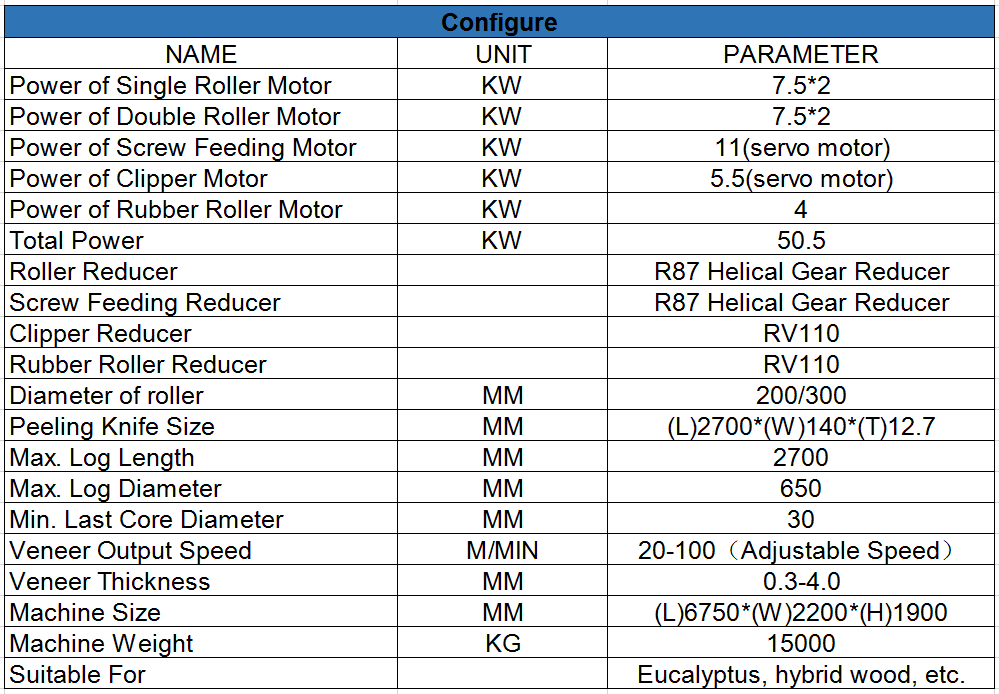

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 11(servo motor)
Power of Clipper Motor KW 5.5(servo motor)
Power of Rubber Roller Motor KW 4
Total Power KW 50.5
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV110
Rubber Roller Reducer
RV110
Diameter of roller MM 200/300
Peeling Knife Size MM (L)2700*(W)140*(T)12.7
Max. Log Length MM 2700
Max. Log Diameter MM 650
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 20-100(Adjustable Speed)
Veneer Thickness MM 0.3-4.0
Machine Size MM (L)6750*(W)2200*(H)1900
Machine Weight KG 15000
Suitable For
Eucalyptus, hybrid wood, etc.

Can be customized according to customer requirements.

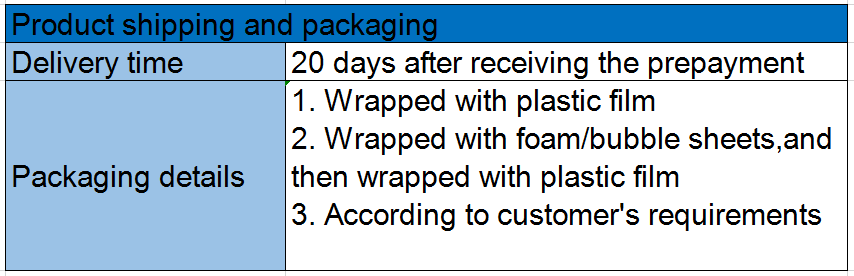

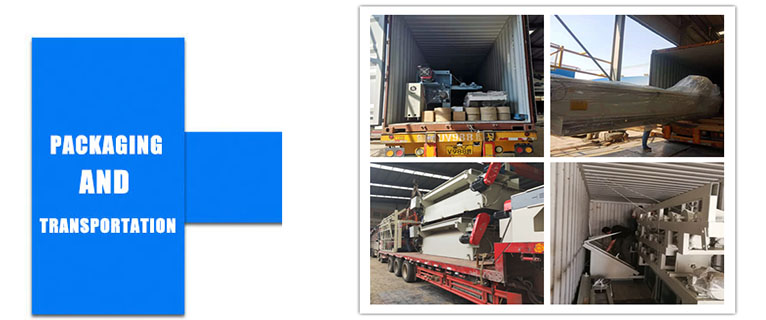

Packaging & Shipping

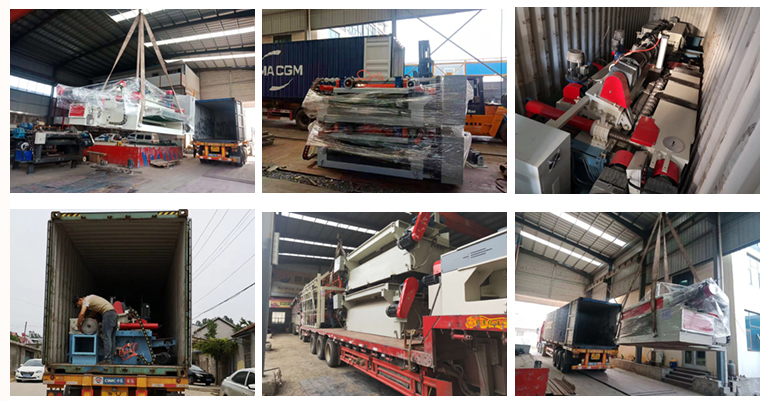

发货-1

Our delivery time is 20 days after receiving the prepayment.

Product packaging according to customer requirements

Our Services

Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible

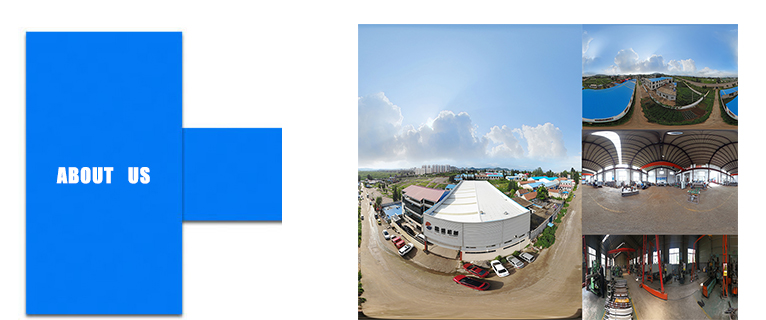

Company Information

未标题-1

       Feixian Changsheng Machinery is located in Feixian County, Shandong Rotary Cutting Machine Production Base.

The company was founded in 1996 and is one of the earliest rotary cutting machine manufacturers in Shandong Province. Our main product includes veneer peeling machine, log debarking and rounding machine, automatic stacker, log feeding machine as well as whole plywood veneer production line customizing and parts including rotary cutter, rubber roller,conveyor belt etc. Since its establishment, the company has more than 20 years of experience in the manufacture of rotary cutting machines. Our factory has always adhered to the business philosophy of "survive by quality, develop by innovation", and guided by the six core values of "customer value, teamwork, serious responsibility, courage to bear, grateful attitude, healthy and fresh". We constantly improve the structure, improve the details, provide customers with better equipment and create value for customers. Changsheng people are willing to use high-quality products, perfect service to provide you with a plywood veneers production line solution

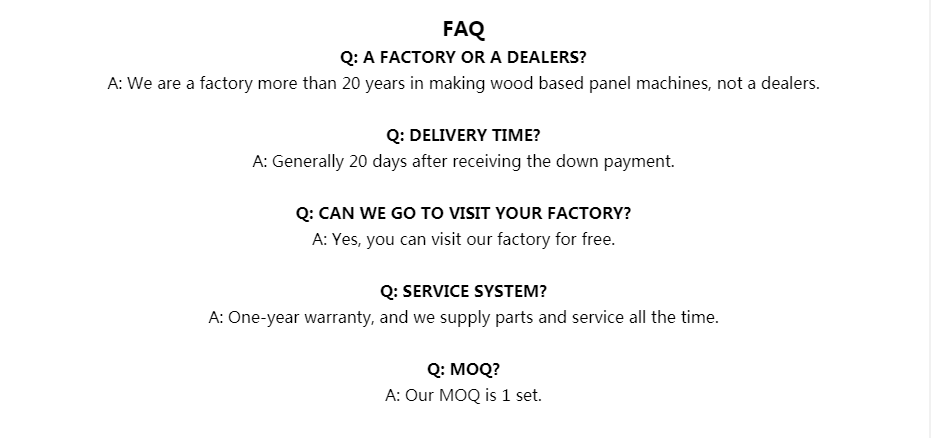

FAQ
