The spindle veneer peeling machine is a traditional machine. There is a core in the machine. If the core is smaller than a certain diameter, the spindle veneer peeling machine cannot be rotated, but we often need to cut wood with a smaller diameter. The spindle veneer peeling machine has a big limitation. In addition, there is often a phenomenon of knife jumping in the spindle veneer peeling machine, resulting in a large thickness of the board and a low utilization rate of wood. In order to save wood and improve the utilization rate, a spindleless veneer peeling machine was invented, which can well cut logs with small diameters into veneers, and the utilization rate of wood is greatly improved, and this kind of mechanical cutting The system is very flexible, further improving the degree of automation.
How to distinguish a spindle veneer peeling machine and a spindleless veneer peeling machine?
First of all, spindle veneer peeling machine is suitable for wood with large diameter, and the spindleless veneer peeling machine is used for wood with small diameter. The spindle veneer peeling machine means that the rotary cutting machine fixes the wood by using two clips to clamp the two end sections of the wood to make the wood rotate. The spindleless veneer peeling machine is a rotary cutting machine without a card head, and the way it makes the wood rotate is to squeeze the wood by three squeezing and rolling at the same time, so as to meet the requirements of the work.

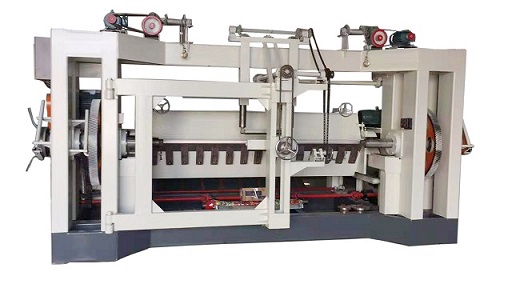

A spindle veneer peeling machine is a rotary cutting machine that is stuck at both ends of the wood with a chuck and then performs rotary cutting. The diameter of the chuck of the veneer peeling machine is generally about 100mm, which will cause the wood core within 100mm. To the effective use, these wood cores are very considerable at a time when wood resources are becoming increasingly scarce. A kind of rotary cutting machine without clamping head for rotary cutting the remaining wood core - the spindleless veneer peelin machine came into being. The advantage of this kind of rotary cutting machine is the high utilization rate of wood.

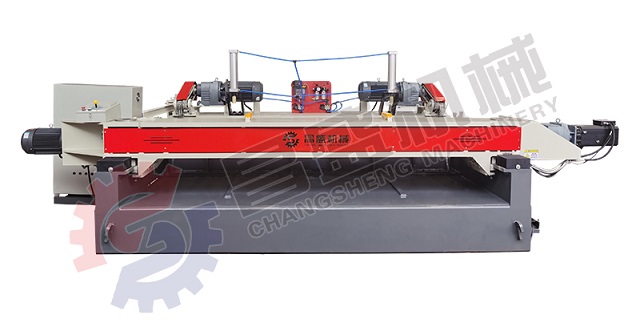

The spindleless veneer peeling machine can not only continue to rotary cut the remaining wood core from the rotary cutting machine to veneer, but also can rotary cut small-diameter wood into veneer, which improves the utilization rate of wood. The spindleless veneer peeling machine system is more flexible and the degree of automation is further improved. It can accurately control the moving speed of the rotary cutter to control the thickness of the rotary cutting plate. The system is simple to operate, the rotary cutting veneer flows smoothly, and the peeling precision is high.
What are the advantages of carded and spindleless veneer peeling machines?
As for which one to choose, this needs to be analyzed on a case-by-case basis. Generally speaking, if it is normally around 20, you can use a rotary cutter without a card shaft, and it depends on the shape of the wood, the use of the board, and the quality requirements. If the wood is larger, you should use a rotary cutter with a card to peel it off first. For the outer circle, if there is a large wood, it can be rotated to the small card shaft at one time and then put down with a non-card shaft rotary cutter. In short, there must be a card without a card.
To sum up, the spindleless veneer peeling machine has the advantages that the spindleless veneer peeling machine cannot compare with the spindlele veneer peeling machine. The system is simple to operate, the rotary wood flow is smooth, and the precision is high.
