Spindleless veneer peeling machine debugging process

Views:12     Author:Site Editor     Publish Time: 2019-08-23      Origin:Site

3

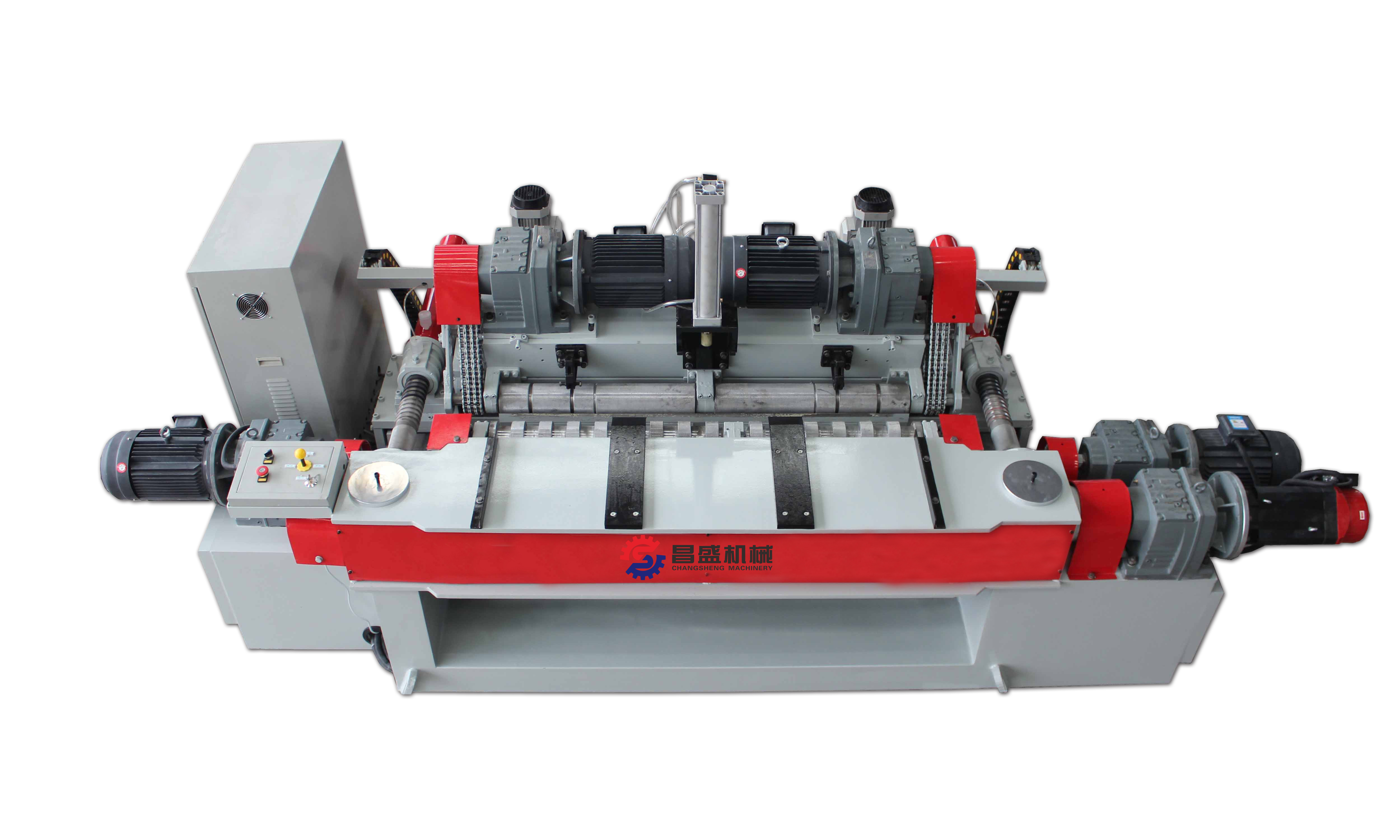

Before the wood veneer peeling machine is used, it needs to be adjusted to ensure the normal use of the rotary cutter. Now, let's take a 4-feet high-speed spindleless plywood veneer peeling machine as an example to explain the debugging of the rotary cutter before use.

Take the example of rotary cutting 1.7mm poplar.

接通电源1_副本

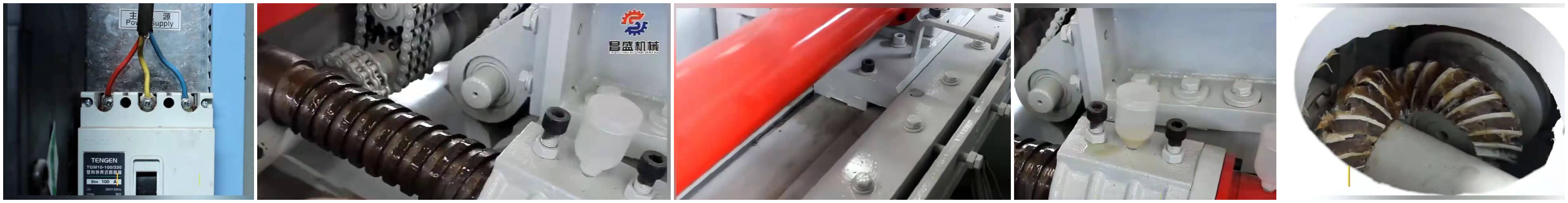

First, please connect the power supply first, and then apply the lubricating oil to the bevel gear of the machine at the groove, at the screw, at the silk socket, and at the forward and reverse shaft.

微信图片_20190823113807-2

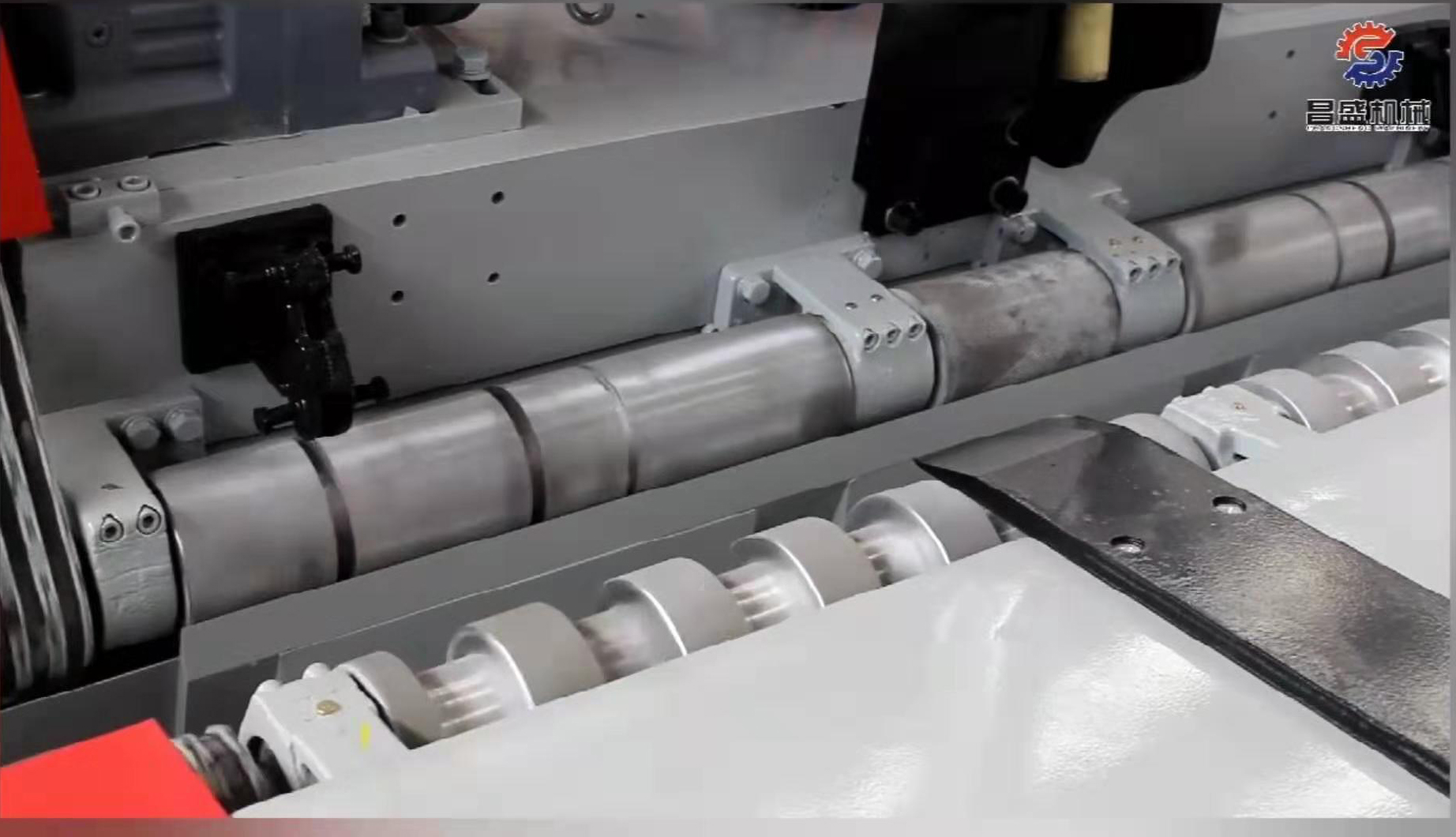

When the preparation is complete, start the machine. First check if the single and double rollers are reversed. If there is a reversal phenomenon in one place, you can exchange any two of the wiring. If all are reversed, swap any two main power wirings.

微信图片_20190823134419-1

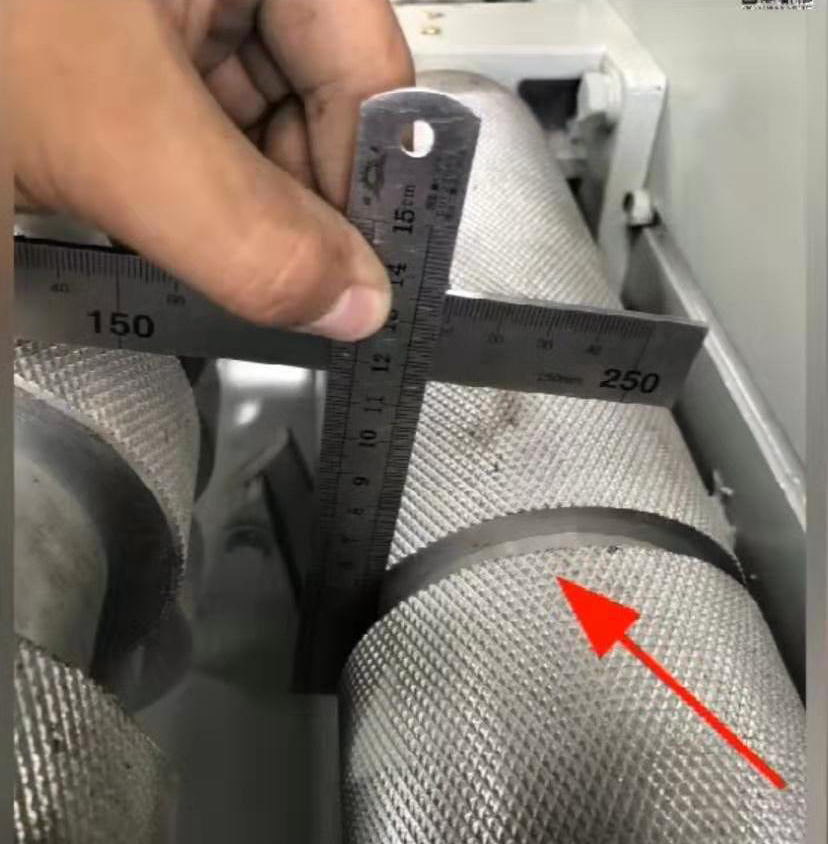

Start measuring the knife height below. Prepare one of the ruler and the small 20 mm ruler, and use the long end of the ruler against the double roller. Then take out the small ruler and the zero scale end on the tip. The scale read must be the one that is turned into the ruler.

微信图片_20190823134734-1

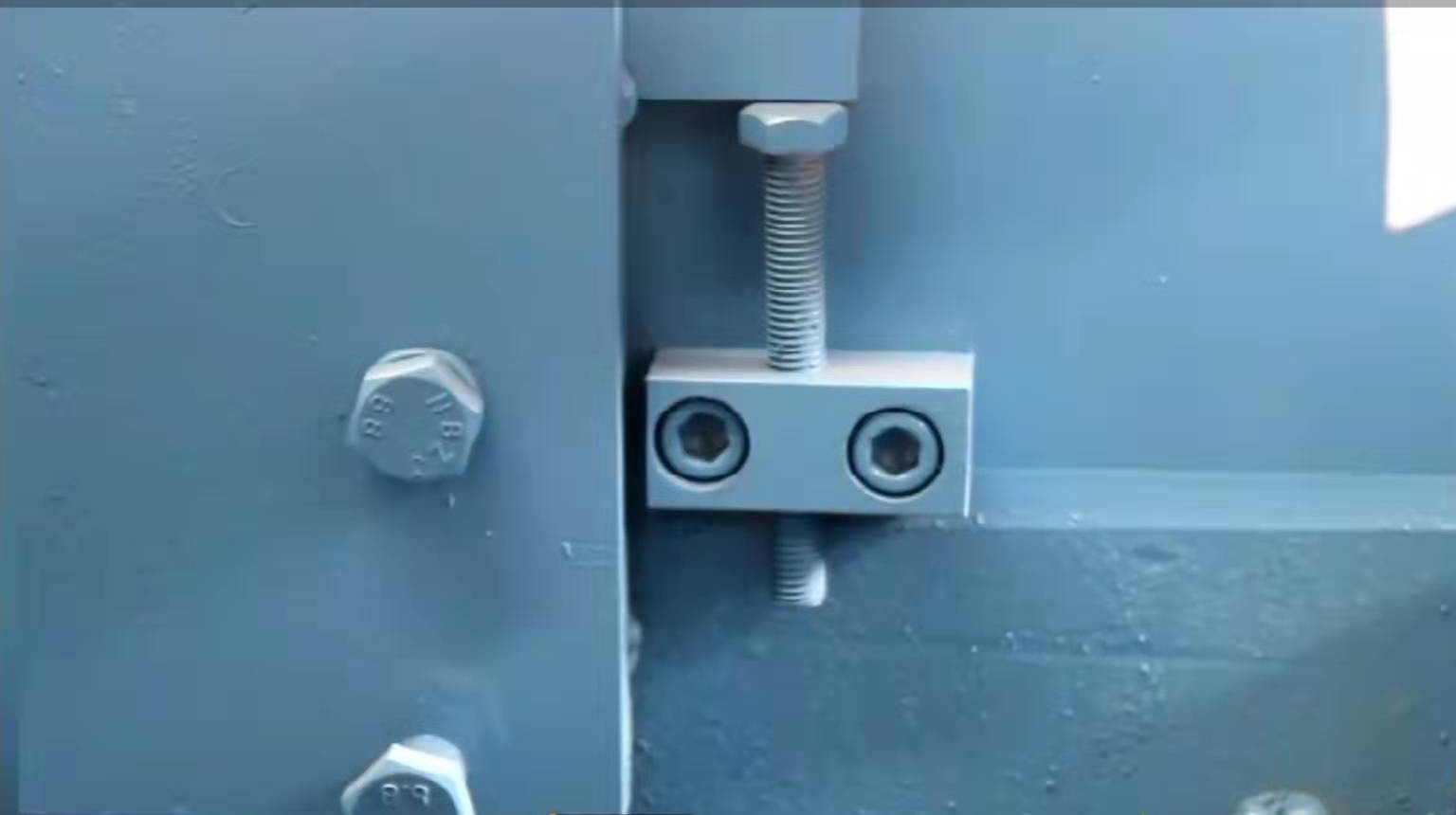

After measuring the knife height, adjust the knife height. First find the top wire that adjusts the knife height, clockwise up, the knife height will become smaller. Turning counterclockwise, the knife height will become larger. For the actual knife height, please refer to the machine manual.

daofeng_副本

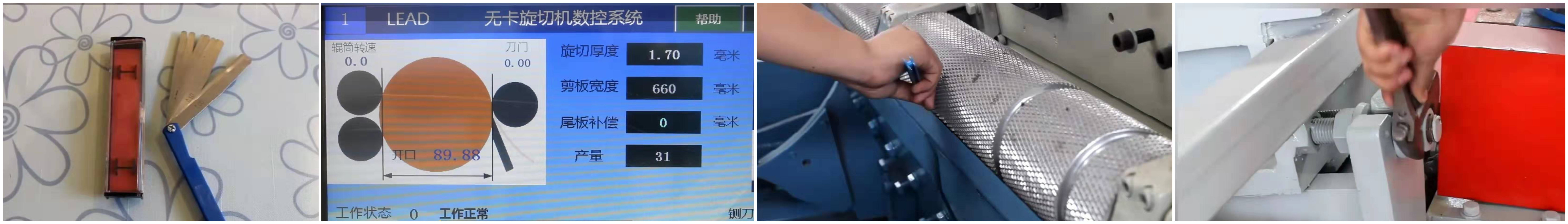

Then start measuring the seam. Prepare the feeler gauge first. Find out that you need to cut the thickness of 1.7mm and adjust the machine opening to about 80mm. Then pass the 1.7 mm feeler gauge from left to right and test it back and forth along the seam.

1_副本

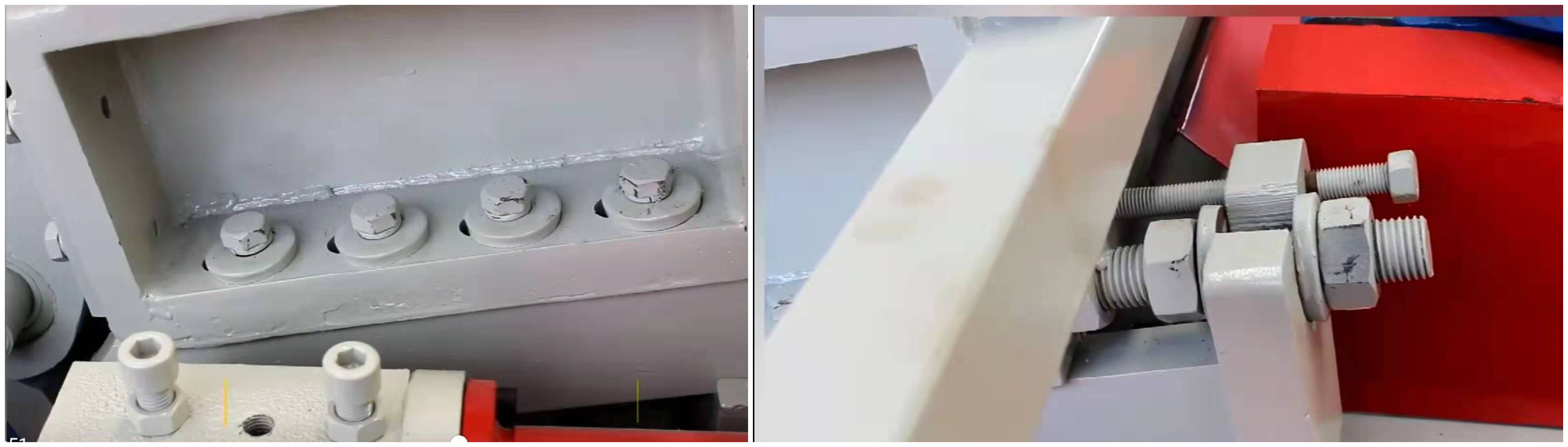

The seam is not suitable. Please adjust the seam nut. First loosen the four rows of four setscrews and modulate the nut that controls the slit. Song Li tight is a large knife slit, and the loose outer is a small knife slit. After the adjustment is completed, be sure to tighten the screws.

微信图片_20190823140449-1

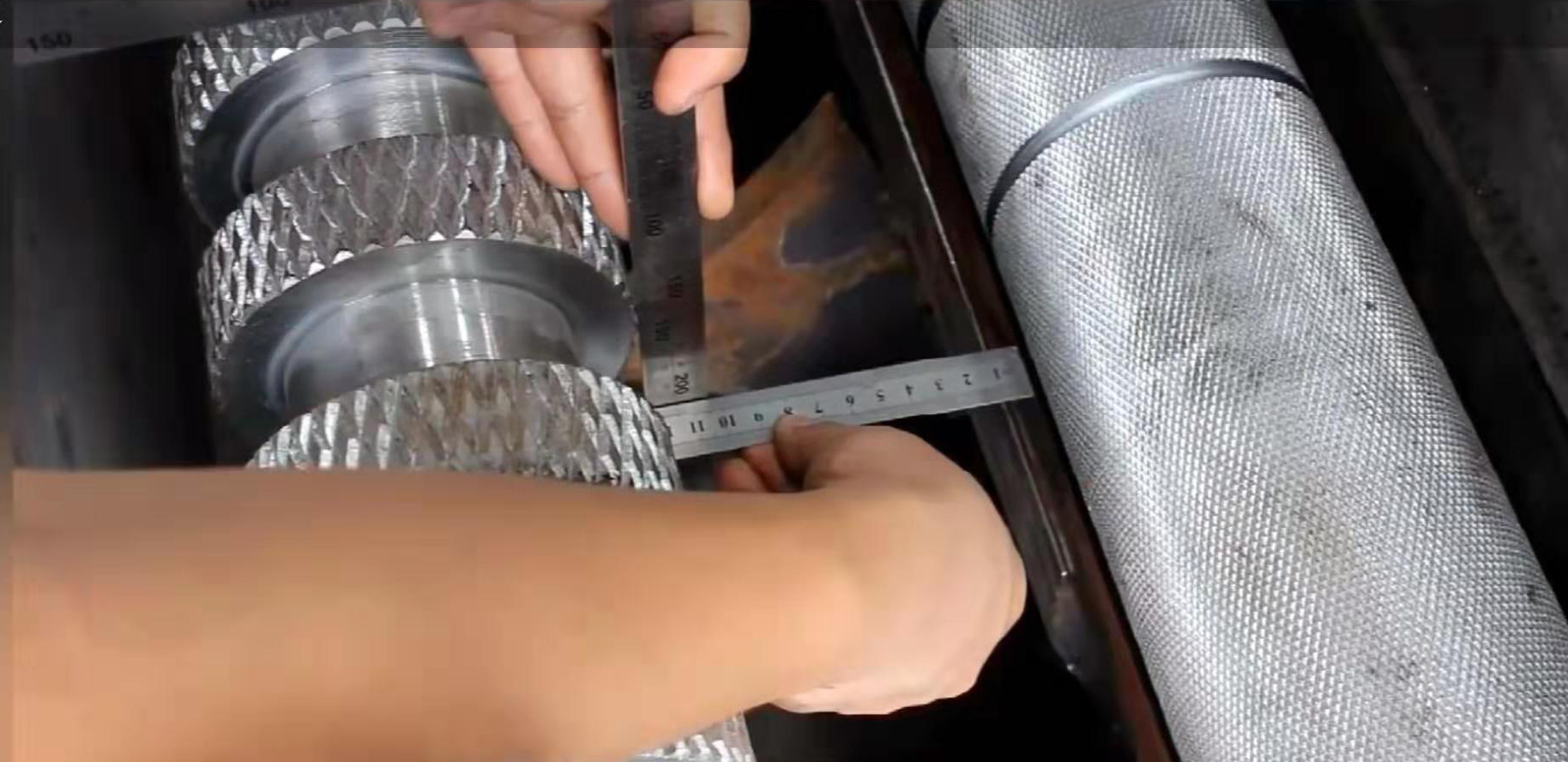

Correct the position of the knife table. The long end of the ruler is placed on the double roll, and the zero-scale end of the small ruler is placed on the tip. At this point, the scale near the end of the double roll is read. It should be noted that the small scale end of the small ruler must be placed at the tip of the knife, and the value read is the scale near the double roller. Then enter the actual measurement size and click on the position to proofread.

Set the thickness and width. Locate the thickened button on the display and adjust to the required 1.7 mm. Then find the width button and adjust to the required 660mm.

Correct the thickness and width. At the beginning of the display, click Start, scroll to the third page, find the Settings button, and then scroll to the twentieth page thickness correction. The next page is the width correction.

Self-learning on the tailgate. First adjust the machine opening to about 260 mm, turn to the third page, click Auto Learn, and the display shows that the tailgate is self-learning.

After the above work is completed, the logs can be cut and tested.

After the machine is sold, we will have professional technicians to debug the machine for you. Guarantee the production of customers.
