The reason for the different thickness of the veneer of the spindleless rotary veneer peeling (cutting) machine?

Views: 0     Author: Site Editor     Publish Time: 2022-07-21      Origin: Site

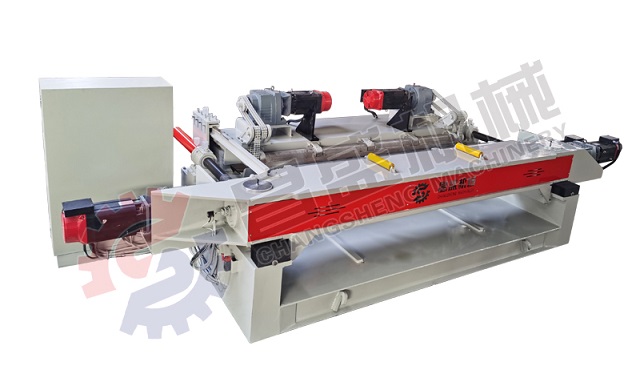

spindleless rotary veneer peeling(cutting)machine

Plywood machinery and equipment have been used for a long time, and various problems will occur. I think everyone should be aware of this. In the plywood production and processing industry, all plywood manufacturers will use woodworking machinery and equipment. However, plywood machinery will have many problems after using it for a long time. Today, let's first understand the thickness of the wood board when the spindleless rotary veneer peeling (cutting) machine is working. A detailed explanation of the reasons.

      So what is the reason for the different thickness of the veneer in the spindleless rotary veneer peeling (cutting) machine?

The spindleless rotary veneer peeling (cutting) machine has different errors according to its own cutting and processing materials. The details are as follows:

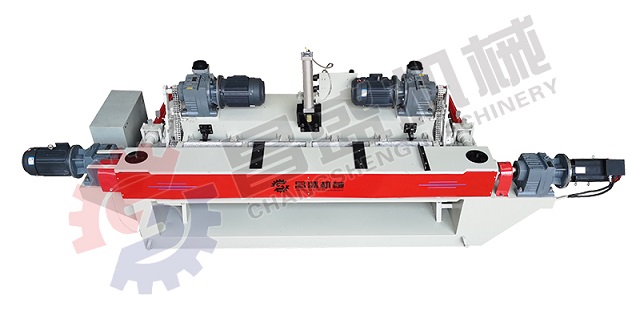

 spindleless rotary veneer peeling(cutting)machine

There are several reasons for the error in the thickness of the veneer of the spindleless rotary veneer peeling (cutting) machine:



      1. The auxiliary slide-in slope of the rotary cutting machine without the card shaft is improper;



      2. The main slideway of the spindleless rotary veneer peeling (cutting) machine is seriously worn;



      3. Small special shaft is used for large-diameter timber, the chuck is easy to loosen, and the wood segment stops when turning;



     4. The rear angle is too large, and the knife bed and the wood section vibrate;



      5. The height of the spindleless rotary veneer peeling (cutting) machine knife is too high;



      6. The feed screw or nut of the tool holder is seriously worn.



      How to eliminate the thickness error of the veneer of the spindleless rotary veneer peeling (cutting) machine:



       1. Reduce the inclination angle of the auxiliary slide;



      2. Repair the main slide to make it level;



      3. Large chuck for large diameter wood segments;



       4. Replace the screw or nut or both;



       5. Adjust the knife height to make it equal to -0.5-0.5 mm;



       6. Use the modified universal goniometer to measure the rear angle, adjust it to reduce it, and observe whether the width of the bright part of the friction between the blade and the wood segment is 3-4 mm.

       To sum up, it is about the reason why the thickness of the wood board varies in the spindleless rotary veneer peeling (cutting) machine. I hope it will be helpful to everyone. In fact, the plywood machine equipment needs to be maintained and maintained frequently after the use of the plywood machine for a long time. Reduce the probability of failure of the plywood machine and prolong the service life of the non-jamming rotary cutting machine equipment. If you want to know more about other faults of the spindleless rotary veneer peeling (cutting) machine, please click to view the relevant article content, or contact us.
