Plywood Veneer Production Line 4 Feet Spindle-less

Veneer peeling production line is one more automatic production process In the production of plywood, this line was composed of log feeder, log debarker machine,veneer peeling peeling lathe ,automatic stacker. save time ,high efficiency

Quantity:
  • CS-LSX
  • Changsheng
  • 8465960000

Spindle Less 4 Feet Plywood Veneer Production Line

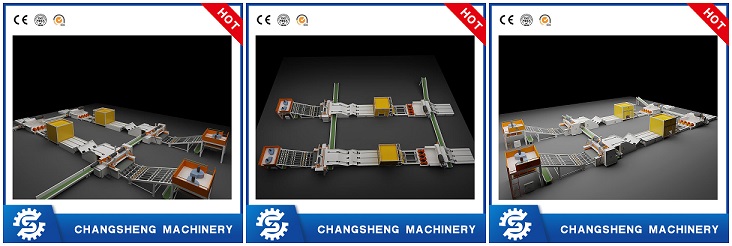

1.veneer production line


Log feeding machine → Log debarker →Screw transmission machine →Log sawing machine   → Log feeding machine → Veneer peeling machine → Veneer stacker
可根据客户要求定制。Can   be customized according to customer requirements.

4 feet log debarker

ITEM

DETAILS

Power of Double Roller Motor

11kw

Power of Single Roller Motor

11kw

Power of Pumping Station

7.5kw

Total Power

29.5kw

Double Roller Reducer

R97 helical gear reducer

Single Roller Reducer

R97 helical gear reducer

Peeling Rate

99%

Wood Loss Rate

1%

Peeling Knife Size

1500mm*180mm*16mm

Max. Log Length

1500mm

Max. Log Diameter

700mm

Min. Last Core Diameter

60mm

Machine Size

4000mm*1900mm*1400mm

Mchine Weight

4500KG

ITEM

DETAILS

Power of Double Roller Motor

11kw

Screw transmission machine

ITEM

DETAILS

Transfer motor

1.5*2 KW

Reducer Motor

Worm gear reducer

Transfer Speed

100M/MIN

Max. log diameter

700mm

sick photoelectric detection sensor

1 set

Machine Size

3500mm*900mm00mm

Machine Weight

700KG

4 Feet Log Feeding Machine

ITEM

DETAILS

Feeding Power

3/8KW

Feeding Speed

10-20 M/MIN

Max. Log Diameter

700mm

Machine Size

4200mm600mm600mm000mm

Machine Weight

1100KG

4 Feet Veneer Peeling Machine

NAME

DETAILS

Power of Single Roller Motor

7.5KW*2

Power of Double Roller Motor

7.5KW*2

Power of Screw Feeding Motor

7.5kw(servo motor)

Power of Clipper Motor

1.5

Power of Rubber Roller Motor

1.5

Total Power

40.5

Roller Reducer

R87

Screw Feeding Reducer

R87

Clipper Reducer

RV80

Rubber Roller Reducer

RV80

Peeling Knife Size

1500mm*140mm*12.7mm

Max. Log Length

1500mm

Max. Log Diameter

700mm

Min. Last Core Diameter

30mm

Veneer Output Speed

30-90mm

Veneer Thickness

0.3-3.0

Machine Size

4750mm*2000mm*1500mm

Machine Weight

6500KG

Veneer Stacker

NAME

DETAILS

Installed Power

25.5KW

Fan Secification

1.5KW*8

Max. Stacking Speed

90m/min

Max. Stacking Height

1200mm

Stacking veneer length

500-1320mm

Stacking Veneer Thickness

1.0-3.0

Hole Detection

≥30mm

Machine Size

8100mm*3200mm*2750mm

Machine Weight

2500KG

Log  sawing machine

NAME

DETAILS

Saw Blade Motor Power

22KW

Transmission Motor

2.2KW

Screw Conveyor Motor

1.5KW

Max. Log Diameter

500mm

Max. Log Length

1500mm

Transmission Speed

10-60m/min

Weight

2000KG

Machine Size

(L)2200*(W)2000*(H)1900mm

微信图片_20190827160608

微信图片_20190828142329


4 feet log debarker

ITEM

DETAILS

Power of Double Roller Motor

11kw

Power of Single Roller Motor

11kw

Power of Pumping Station

7.5kw

Total Power

29.5kw

Double Roller Reducer

R97 helical gear reducer

Single Roller Reducer

R97 helical gear reducer

Peeling Rate

99%

Wood Loss Rate

1%

Peeling Knife Size

1500mm*180mm*16mm

Max. Log Length

1500mm

Max. Log Diameter

700mm

Min. Last Core Diameter

60mm

Machine Size

4000mm*1900mm*1400mm

Mchine Weight

4500KG

ITEM

DETAILS

Power of Double Roller Motor

11kw

Log Transfer of Woodworking Machine

ITEM

DETAILS

Transfer motor

1.5*2 KW

Reducer Motor

Worm gear reducer

Transfer Speed

100M/MIN

Max. log diameter

700mm

sick photoelectric detection sensor

1 set

Machine Size

3500mm*900mm00mm

Machine Weight

700KG

4 Feet Log Feeding Machine

ITEM

DETAILS

Feeding Power

3/8KW

Feeding Speed

10-20 M/MIN

Max. Log Diameter

700mm

Machine Size

4200mm600mm600mm000mm

Machine Weight

1100KG

4 Feet Veneer Peeling Machine

NAME

DETAILS

Power of Single Roller Motor

7.5KW*2

Power of Double Roller Motor

7.5KW*2

Power of Screw Feeding Motor

7.5kw(servo motor)

Power of Clipper Motor

1.5

Power of Rubber Roller Motor

1.5

Total Power

40.5

Roller Reducer

R87

Screw Feeding Reducer

R87

Clipper Reducer

RV80

Rubber Roller Reducer

RV80

Peeling Knife Size

1500mm*140mm*12.7mm

Max. Log Length

1500mm

Max. Log Diameter

700mm

Min. Last Core Diameter

30mm

Veneer Output Speed

30-90mm

Veneer Thickness

0.3-3.0

Machine Size

4750mm*2000mm*1500mm

Machine Weight

6500KG

Veneer Stacker

NAME

DETAILS

Installed Power

25.5KW

Fan Secification

1.5KW*8

Max. Stacking Speed

90m/min

Max. Stacking Height

1200mm

Stacking veneer length

500-1320mm

Stacking Veneer Thickness

1.0-3.0

Hole Detection

≥30mm

Machine Size

8100mm*3200mm*2750mm

Machine Weight

2500KG
