CS-8D2S2G11K
Changsheng
8465960000

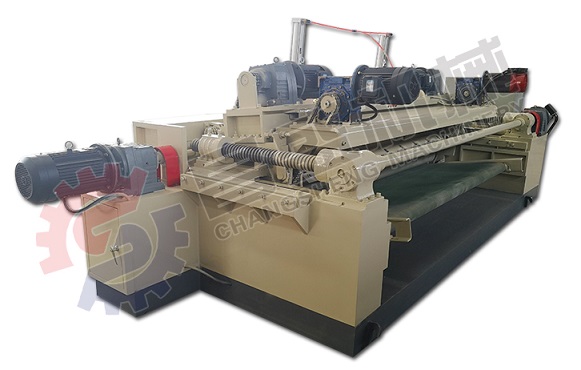

8 feet spindle less rotary face veneer peeling making machine

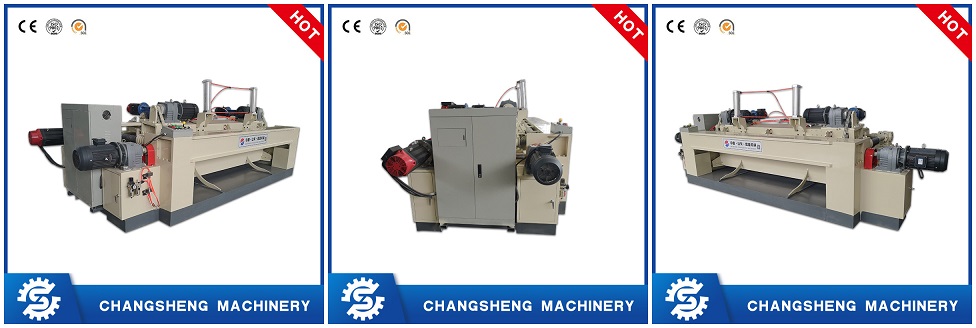

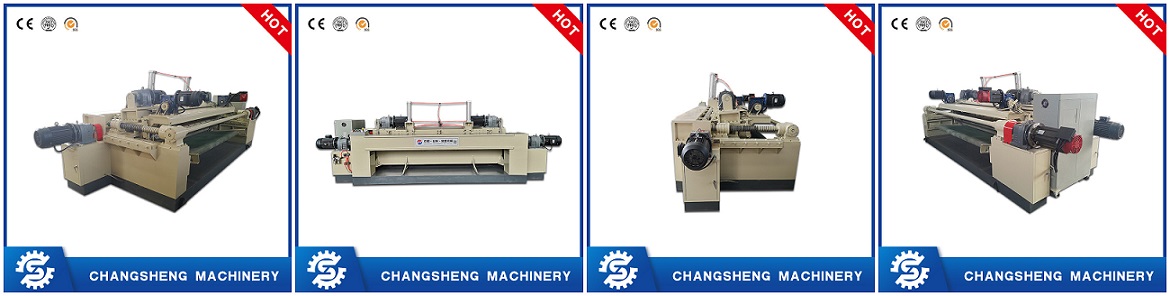

Product image presentation
This machine is connected by position button, no welding point. This makes the machine more stable and more durable. As well as the produced veneers are with higher accuracy, the accuracy would be 15 percent higher than common machine.
1,Use cylinder to hit wood core
2.Alloy lead screw and zinc based alloy nut
3.Easy adjust knife seam function and convenient disassembly
4.The peeled veneer is smooth on both sides
5.Auto trimming function of residual tail plate,thickness error plus and minus 0.05mm
6.Advanced control system and core technology.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 11(servo motor) |
| Power of Clipper Motor | KW | 5.5(servo motor) |
| Power of Rubber Roller Motor | KW | 4 |
| Total Power | KW | 50.5 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV110 | |
| Rubber Roller Reducer | RV110 | |
| Diameter of roller | MM | 200/300 |
| Peeling Knife Size | MM | (L)2700*(W)140*(T)12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 650 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 20-100（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-4.0 |
| Machine Size | MM | (L)6750*(W)2200*(H)1900 |
| Machine Weight | KG | 15000 |
| Suitable For | Eucalyptus, hybrid wood, etc. |
Can be customized according to customer requirements.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

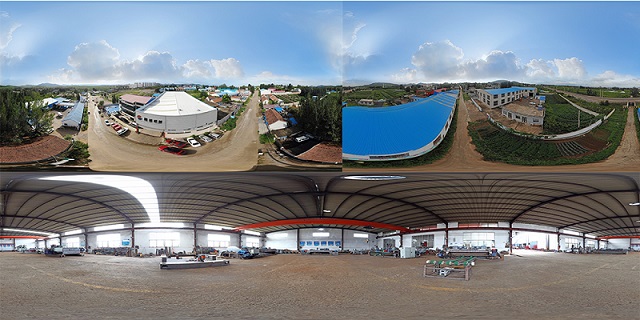

* View our Factory.

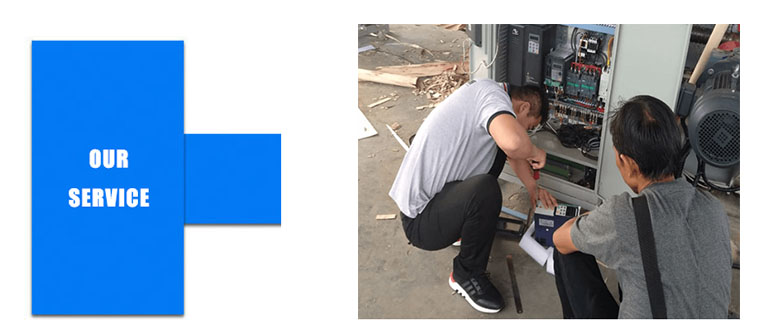

After-Sales Service
* Training how to instal the machine, training how to use the machine.
*Overseas service person is available
