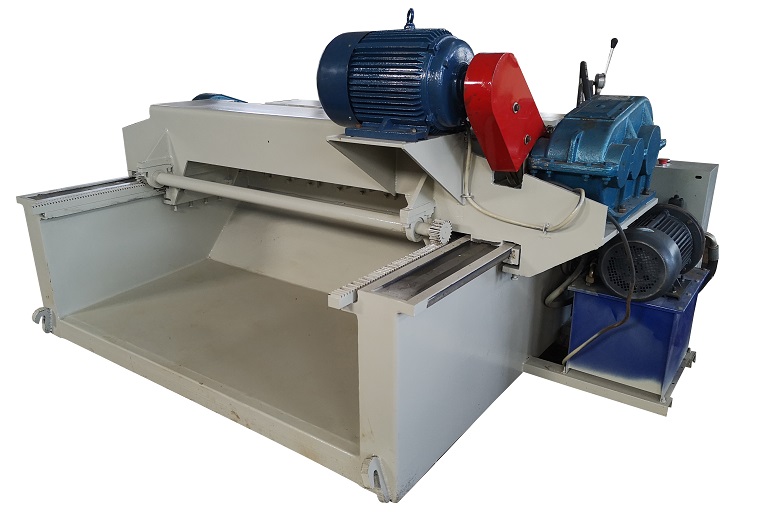

The log debarking machine is a kind of machinery for producing plywood. The main features of the use of the hydraulic log debarking machine are as follows:
1. The hydraulic power station is configured scientifically and reasonably, and adopts manual self-reset reversing valve, which has quick response, simple operation and convenient maintenance.
2. The hydraulic log debarking machine has undergone mechanical experiments and reasonably configured power, which saves unnecessary power waste for users and also saves production costs.
3. Increase the diameter of the single and double rollers to increase the speed of the sheeting.
4. The surface of single and double rollers is plated with chrome, which improves the wear resistance of the rollers. After many experiments and theoretical integration, the surface of the drum adopts Pythagorean linear grooves, which makes the veneer difficult to wrap around the drum and improves production efficiency.
5. All transmission parts cooperate reasonably and accurately to ensure the continuity and reliability of the equipment.
6. The major feature is the use of hydraulic feeding mechanism, which allows the tool to advance and retract quickly, and the feeding pressure can be adjusted and displayed, which is suitable for peeling and rounding of different woods.
7. The operation of the round-finding machine does not require high technical requirements for the workers. One peeling machine can supply two rotary cutting machines to work normally, eliminating the need for manual peeling and rounding.
There are also some common failures during the use of the circle search machine. There are three more common problems, namely:
1. Whether the motor can run normally needs to check the power control line to ensure the normal operation of the circle search machine. The circle search machine is plugged in and the indicator light is on, but the motor cannot start. Solution: Pay attention to whether it is due to lack of phase of the power supply or virtual connection of the main control line. Carefully repair the power and control lines and the main stop button. To
2. The round-finding machine automatically retracts the tool. If it fails, shut down the machine and solve the tool-retracting maintenance circuit, so that the tool-retraction problem can be handled well. The maintenance and repair of the round-finding machine can improve the working efficiency of the round-finding machine. To adapt to the wood, the diameter, length and shape of different tree species can be modified to make good use of wood materials. At the same time, it may be because of the open circuit of the stroke switch and the retracting control circuit. Solution: Replace the travel switch and repair the circuit. To
3. When the round-finding machine is in use, the size of the knife seam can be adjusted according to your needs, so that the bark can be removed well, otherwise the net bark will be unclean. The factor is that the knife is low and the knife seam is too small. Solution: Refer to the knife adjustment diagram to adjust the knife height and knife seam. _
After understanding the characteristics of the round-finding machine, it is beneficial to our plywood production.
