plywood veneer production line Four feet high output

Quantity:
  • CS-CX1512
  • Changsheng
  • 8428391000

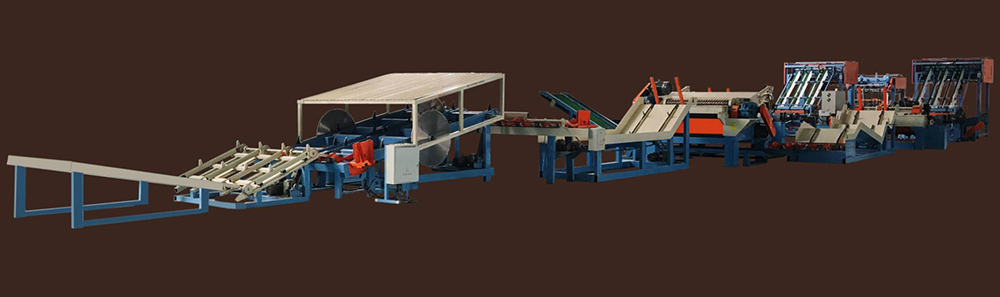

veneer peeling line

This veneer production line is specially designed to meet the demand of high output.  Compared with other production lines, this line has the following characteristics:

  1. Higher output: the daily output can reach up to 200 cubic meters

  2. Labor saving: only need three workers for the whole line

  3. High degree of automation: Automatic log feeding, cutting, transmission, rotary peeling, veneer grading and veneer stacking.

Below is the machines in this line:

  1. Log storage frame-1 set

  2. Log conveyor for log cutting machine 1 set

  3. Log cutting machine 1 set

  4. Log conveyor for debarking machine 1 set

  5. Eight feet log debarker 1 set

  6. Double direction screw conveyor 1 set

  7. Automatic log feeding machine for peeling machine 2 set

  8. Four feet high speed veneer peeling machine

  9. chine 2 set

  10. Automatic vacuum veneer stacking machine 2 set

Log cutting machine

Saw blade motor KW 5.5*3
Feeding Motor KW 1.5*1
Log Position correct motor KW 1.5*1
Sawblade material
High strength chromated
Length of platform MM 1200
The maximum diameter of cut logs MM 600
Oil supply method
Automatic oil supply
Machine Size MM (L)3000*(W)2800*(H)2000

Eight feet log debarker

Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Hydraulic Station KW 7.5
Single Roller Reducer
R97*2 helical gear reducer
Double Roller Reducer
R97*2 helical gear reducer
Diameter of Single Roller MM 150
Diameter of Double Roller MM 150/180/200
Max. Log Length MM 2700
Max. Log Diameter MM 700
Min. Last Core Diameter MM 60
Machine Size MM (L)5700*(W)1900*(H)1800
Machine weight KG 8200
Suitable for
Eucalyptus, hybrid wood, etc.

Automatic log feeding machine


Power configuration KW 11
Max. Log Length MM 1300
Max. Log Diameter MM 600
Machine Size MM (L)6500*(W)1500*(H)1500
Machine Weight KG 2000

Four feet high speed veneer peeling machine



Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 7.5/11 (servo motor)
Power of Clipper Motor KW 2.2 ( servo motor)
Power of Rubber Roller Motor KW 1.5
Total Power KW 41.2/44.7
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV90
Rubber Roller Reducer
RV90
Segments of single roller
3
Diameter of single roller MM 117
Diameter of double roller MM 122
Diameter of rubber roller MM 150
Max. Log Length MM 1500
Max. Log Diameter MM 500 Can be customized 600)
Min. Last Core Diameter MM 30
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4700*(W)2100*(H)1700
Machine Weight KG 7500
Suitable for
Eucalyptus, hybrid wood, etc.

Vacuum veneer stacker


Installed power KW 14/24/29
Fan specification KW 3/2.2
Number of fans
2/4/6(Frequency speed adjustment)
Stacking velocity M/MIN 0-100/0-90
Stacking height MM 0-1200
stacking veneer length MM 960-1270/1270
Stacking veneer width MM 500-900/2600
Stacking veneer thickness MM 0.5-3.6/1.0-3.6/1.2-3.6
Lifting method
Chain lifting/Lifting table
B grade veneer transfer
belt conveyor
Veneer stack conveyor
Automatic chain conveyor
Stack Quantity
1/2/3 according to the requirement
Rating of veneer
2 or 3 grade
Machine Size MM (L)7000*(W)2800*(H)2600

Can be customized according to customer requirements.


微信图片_20190827160608

1_11副本

微信图片_20190828142329

Why Choose Us

微信图片_20190827161259

7 peoples



We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.



20 years



We have been engaged in woodworking machinery for 20 years and have extensive industry experience.



365 days



We are waiting for your call for 365 days, providing you with services such as purchase and support.



3000 customers



More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.



10000 experiments



Our factory has conducted more than 10,000 innovative experiments since its inception.




Only to produce the most suitable equipment for the customer.

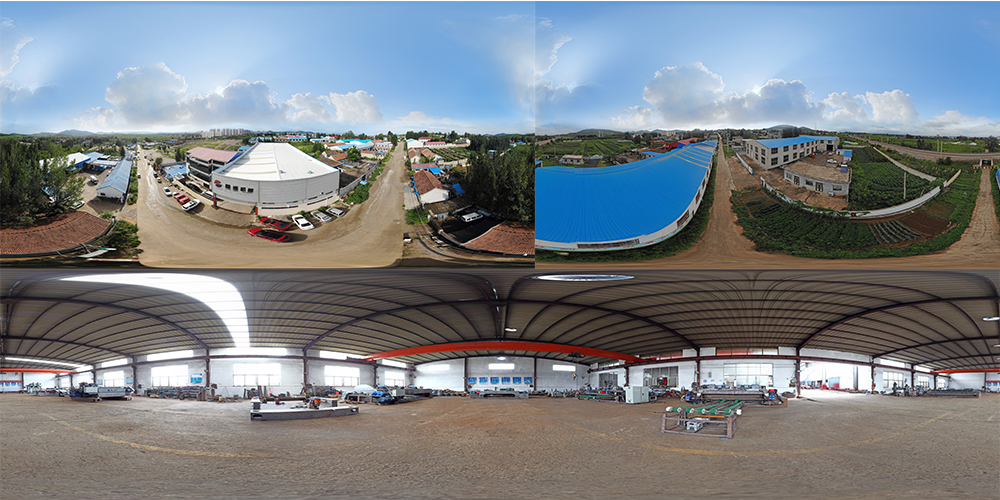

未标题-1

 Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.

     In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.

     High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.

     Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.

     Changsheng Wood Machinery comes from China, serves all the world!
