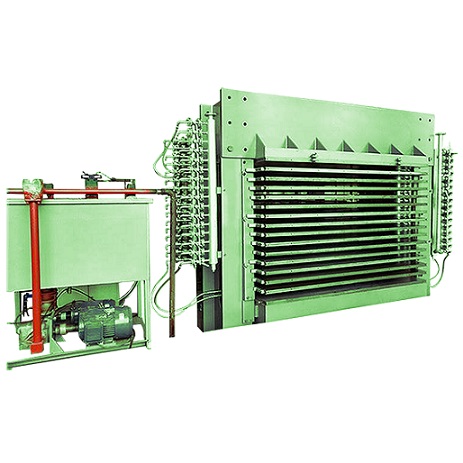

500 TON Hot Press Machine for plywood production
Nominal Gross Pressure | 5000 |
| Direction of plate feeding | Horizontal |
| Numbers of heating plate | 16 pcs |
| Opening Number | 15 |
| Opening distance | 70 mm |
| Dimension of hot platen | 2700*1370*42 mm |
| Number of cylinder | 2 pcs |
| Diameter of cylinder | 360 mm |
| Closing time without loading | 19 seconds |
| Low pressure pump motor | 11 kw*2 |
| High pressure pump motor | 7.5 kw |
| Total power | 29.5 kw |
| Weight | 38000 kg |
| Dimension | 3600×1370×4500 mm |
Main Characteristic
Adopt the cylinders from Wuxi city, leakage proof.
Gavanized heating pump, rust proof
Hot platen double in and doubel out design, evenness heat spreading
Siemens motor and Schneider electronic parts are used
Automatic pump station design, easy to operate
Annealing metal frame, deformulation resistance
Our Services
Presale service
1.Make reliable pratical mechine list and production proposal free of charge, according to customers' actual situation
2.Design the machine free of charge, according to customer's production line and production cost,
3. Make the workshop and production line layout free of charge, according to customers' factory land
Medium-sales service
1.Video for the manufacturing process as customers requirement
2.Machine modifying according customers' suggestion
3.Order the shipment and prepare the documents for customers' clearance, according to customers' custom requirement
After-sale services
1.One year warranty for main machine, cost price for vunerable parts

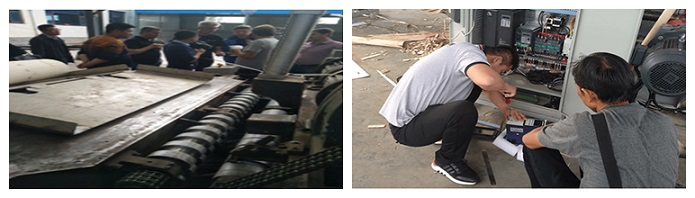

2.Experienced engineer is avaiable for the machine installation and worker training
