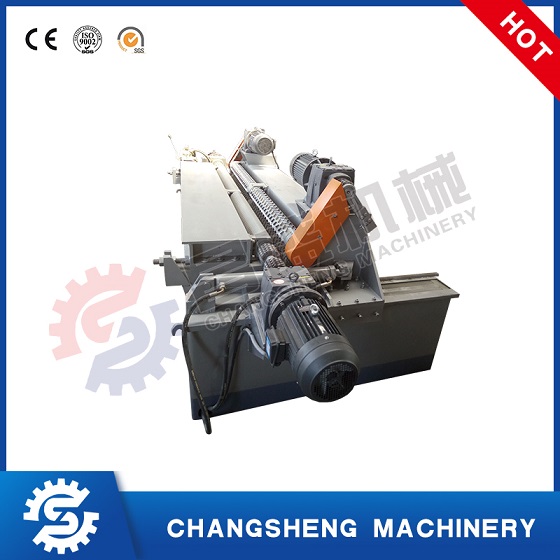

8 Feet Spindle Less Ring Debarker for Making Plywood

This machine is used to debarking the skin and making round the log before peeling.
  • CS-8ZR87

  • Changsheng

  • 8465960000

8 Feet Spindle Less Ring Debarker for Making Plywood

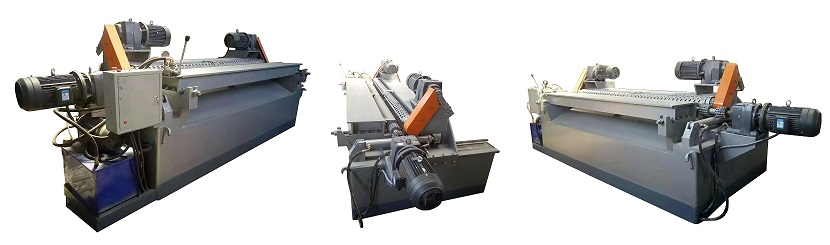

log debarker machine

Product Description

      Plywood machine : 8 Feet Log debarker is widely used before veneer production. The main function of it is remove the bark from log and make the log smooth and straight, to make sure the log is easy to peel into veneers. Chrome plated rollers are more wear-resistant. Hydraulic feeding system can quickly and efficiently put Log in and remove bark and make the wood round.

Product Characteristics:

  • Work automatic to save the cost of manual debarking

  • After debarking, the becomes smooth and straight, easy to peel

  • With good processing precision, easy operation

  • Customize machine according to customer’s requirements

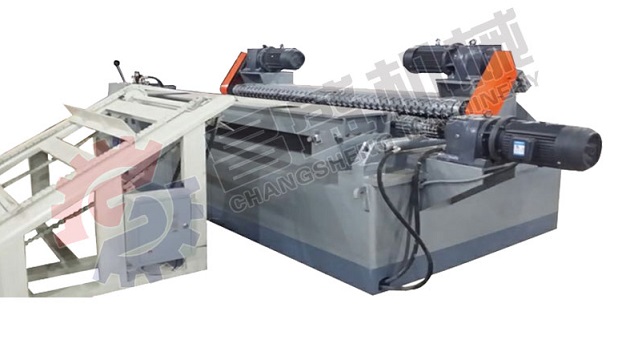

Machine picture

log debarker


Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Hydraulic Station  KW 7.5
Total Power KW 37.5
Single Roller Reducer
R97*2 helical gear   reducer
Double Roller Reducer
R97*2 helical gear   reducer
Diameter of Single Roller MM 150
Diameter of Double Roller MM 150/180/200
Peeling Knife Size MM (L)2700*(W)140*(T)12.7
Max. Log Length MM 2700
Max. Log Diameter MM 700
Min. Last Core Diameter MM 60
Machine Size MM (L)5700*(W)1900*(H)1800
Machine weight KG 8200
Suitable for
Eucalyptus, hybrid wood, etc.


changsheng machinery

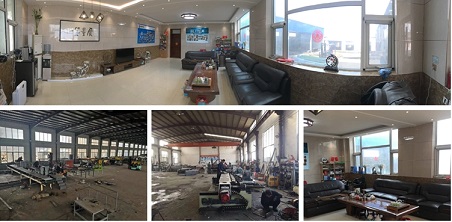

Company Information

changsheng machinery

      Feixian Changsheng Machinery is located in Feixian County, Shandong Rotary Cutting Machine Production Base.

      The company was founded in 1996 and is one of the earliest rotary cutting machine manufacturers in Shandong Province. Our main product includes veneer peeling machine, log debarking and rounding machine, automatic stacker, log feeding machine as well as whole plywood veneer production line customizing and parts including rotary cutter, rubber roller,conveyor belt etc. Since its establishment, the company has more than 20 years of experience in the manufacture of rotary cutting machines. Our factory has always adhered to the business philosophy of "survive by quality, develop by innovation", and guided by the six core values of "customer value, teamwork, serious responsibility, courage to bear, grateful attitude, healthy and fresh". We continuously improve the structure, improve the details, provide customers with better equipment and create value for customers. Changsheng people are willing to use high-quality products, perfect service to provide you with a plywood veneers production line solution.


1.Where is your factory?

Our factory located in Fei county, Linyi city, Shandong Province, China. If you want to visit our factory, we can receive you at airport and train station.


2.How about your warranty?

The same as other factory, our warranty time is 12 months(except easy wearing parts). If our reason make any fault happens, we will prolong the warranty time.


3.Do you sell  spare parts and components of veneer peeling machine?

Yes, but we only sell spare parts to the customer who bought our machine by cost price.


4.Can you dispatch engineers repair machine for us abroad?

Yes, but you should pay the salaries to our engineer. If the machine was bought from us, the debugging and repairing is free.


5.How long is the delivery time?

1 set, 10 days. 5 sets 15 days. 10 sets 25 days
