CS-4Z350
Changsheng
8465960000

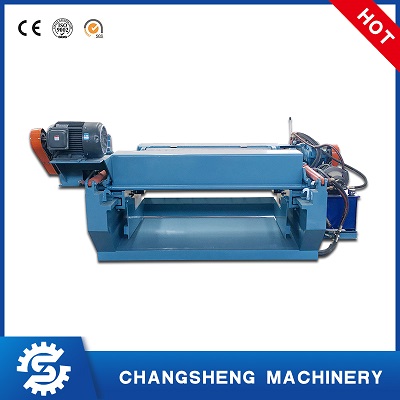

Wood Log Debarker 4 Feet Spindle-less
video
Plywood machine : 4 feet spindle less log debarker
Product
This log debarker are with simple structure, easy to operate, the work efficiency is 35% higher than traditional debarking machine.

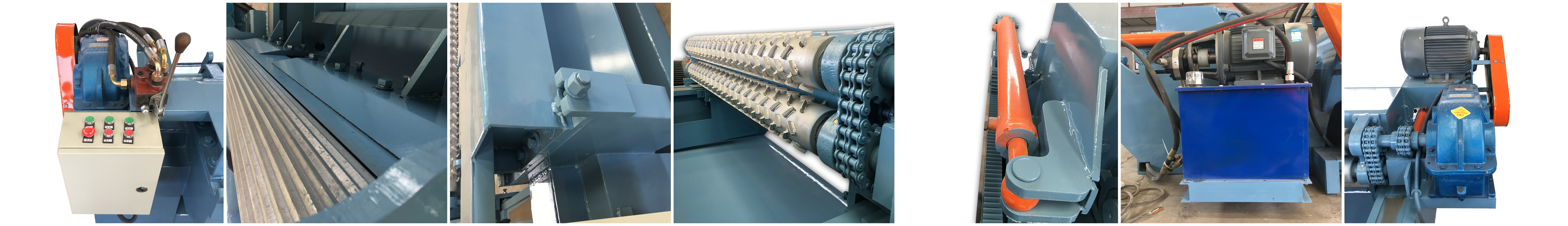

Detailed Images
Parameter
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5 |
| Power of Double Roller Motor | KW | 11 |
| Power of Hydraulic Station | KW | 5.5/7.5 |
| Total Power | KW | 24/26 |
| Single Roller Reducer | 250 | |
| Double Roller Reducer | 350 | |
| Single roller diameter | MM | 150 |
| Double roller diameter | MM | 150/180/200 |
| Peeling Knife Size | MM | (L)1500*(W)130/140*(T)12.7 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 700 |
| Min. Last Core Diameter | MM | 80 |
| Machine Size | MM | (L)4000*(W)1900*(H)1400 |
| Machine weight | KG | 2600 |
| Suitable for | Poplar, Eucalyptus etc. |
All the plywood machines we produce can be customized according to your production requirements
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
High-quality product quality and intimate customer service are the biggest responsibility of Changsheng Wood Industry Machinery to each customer. The company provides 24-hour service for customers. The company adheres to the business philosophy of "survive by quality, develop by innovation". The plywood machines produced have been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon Countries and regions, and has been widely recognized and praised by customers at home and abroad.
