CS-FBJ-1
Changsheng

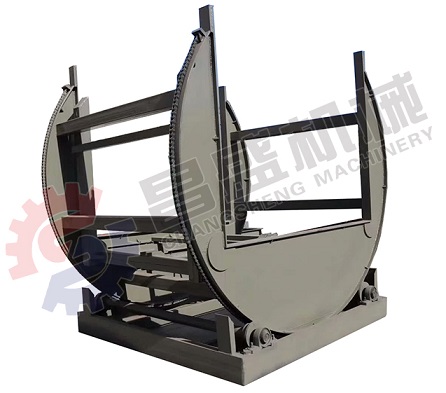

Automatic Hydraulic Board Overturning Machine
Product Application:
This machine with hydraulic control, continuous production, reduce the labor intensity of workers in the operation more secure and reliable, stable and accurate. Electrical operation screen with emergency stop (total stop) rotary switch, can be quickly in case of emergency braking to ensure safety.
| NAME | UNIT | PARAMETER |
| Model | CS-FB1250 | |
| Diameter & Stroke of Cylinder | MM | Ф100×500 |
| Max. Openning | MM | 1250 |
| Overturning Angle | 0-180° | |
| Max Overturning Length | MM | 2600 |
| Max Overturning Width | MM | 1250 |
| Power | KW | 3+1.5 KW |
| Overall Dimensions（L× W×H) | MM | 2040×2100×2265 |
| Net Weight | KG | 1870 |
Advantage:
1.Good quality and low price.
2.Improve the working efficiency .
3.Easy and safe to operate .
4.Plate Turnover Machine is suitable for medium board,motherboard and plywood to turn out in one time when they are collected.

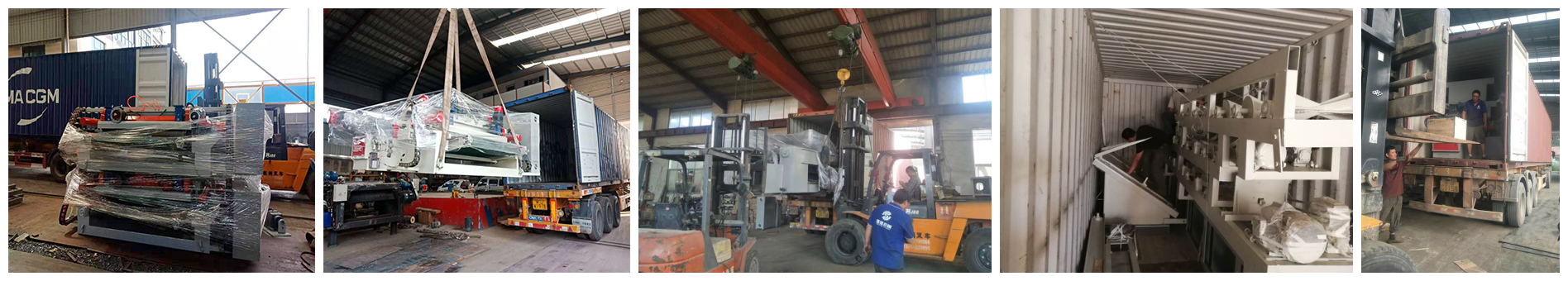

| Packaging & Delivery |
| Packaging Details: |
| standard package or as your detailed requirement. |
| Port : Qingdao |
| Picture Example: |
| Our Service |
| Pre-sale services: |
| We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc. |
| In-sale services: |
| Send technicians to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free. |
| After-sale services: |
| We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away. |
