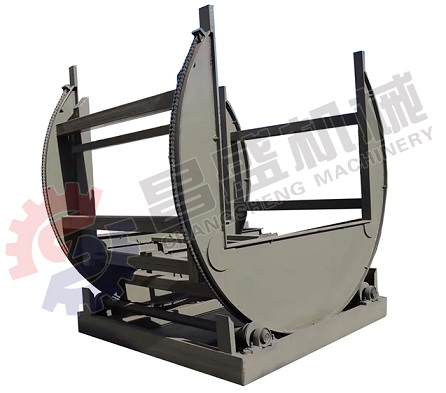

Board overturning machine for plywood making

Flap machine with hydraulic control, continuous production, reduce the labor intensity of workers in the operation more secure and reliable, stable and accurate. Electrical operation screen with emergency stop (total stop) rotary switch, can be quickly in case of emergency braking to ensure safety.
weigth:
Overall Dimensions:
Availability:
Quantity:
  • CS-FBJ-4

  • Changsheng


Board overturning machine for plywood making

plywood making machine

plywood making machine


Turnover board machine
Product Description:
Flap machine with hydraulic control, continuous production, reduce the labor intensity of workers in the operation more secure and reliable, stable and accurate. Electrical operation screen with emergency stop (total stop) rotary switch, can be quickly in case of emergency braking to ensure safety.
Advantages:
1. Plate Turnover Machine is suitable for medium board,motherboard and plywood to turn out in one time when they are collected.
2.Good quality and low price.
3.Easy and safe to operate .
4. Improve the working efficiency .

plywood making machine

plywood making machine

Product parameters:


NAME UNIT PARAMETER
Model
CS-FB1250
Diameter & Stroke of Cylinder MM Ф100×500
Max. Openning MM 1250
Overturning Angle
0-180°
Max Overturning Length MM 2600
Max Overturning Width MM 1250
Power KW 3+1.5 KW
Overall Dimensions(L× W×H) MM 2040×2100×2265
Net Weight KG 1870

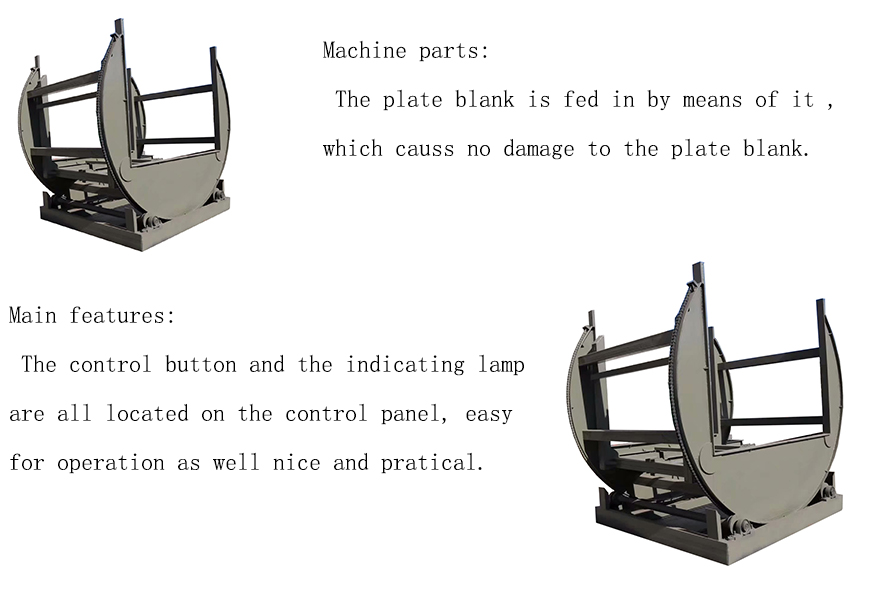

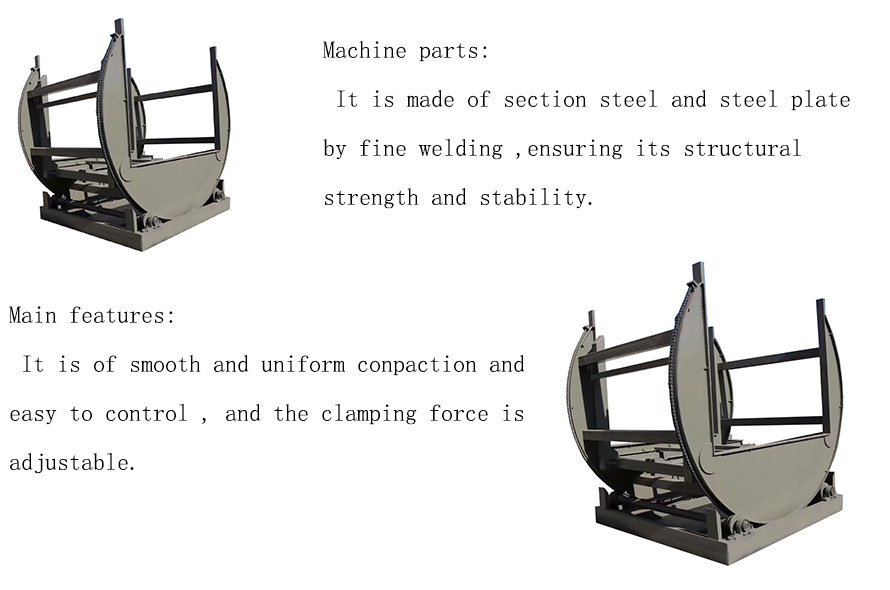

Machine details:


Board overturning machine

Board overturning machine


plywood making machine

plywood making machine

plywood making machine

plywood making machine



1.All kinds of mold can be made by customer's requirements

2.All price are based on FOB.QINGDAO,China

3.Payment;by T/T 30% down payment,70%  upon machinery completion.

4.Delivery:After finishing all the payment

5.All the Parameters above just for reference,for they are updating all the time

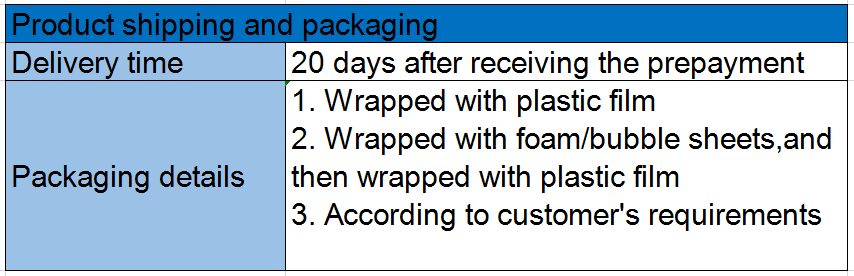

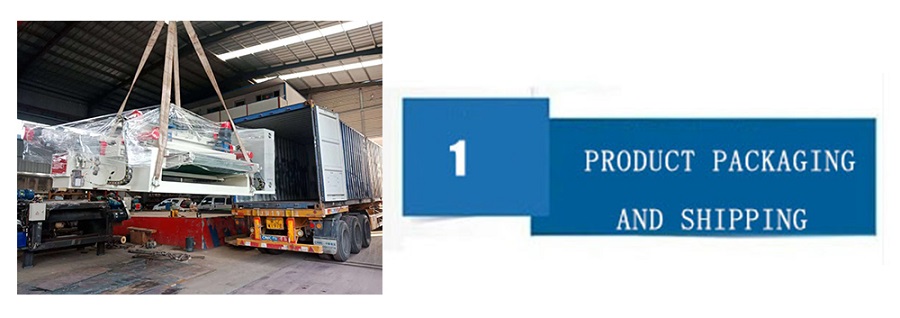

6.Package:Standard packing

7.Warranty:All the machine enjoys one year's warranty,in this period

8.Any problems of machine,please feel free to contact us.We will try our best to make it.

plywood making machine

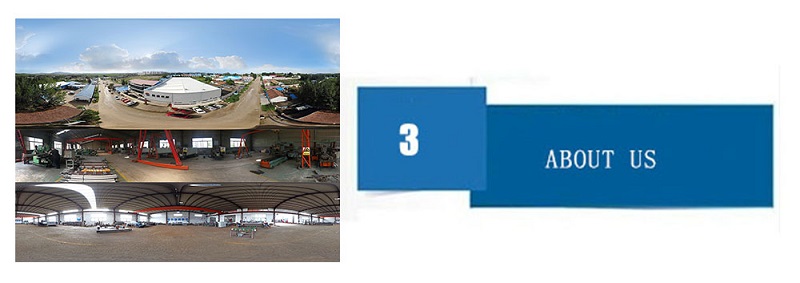

      Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.



      In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs
