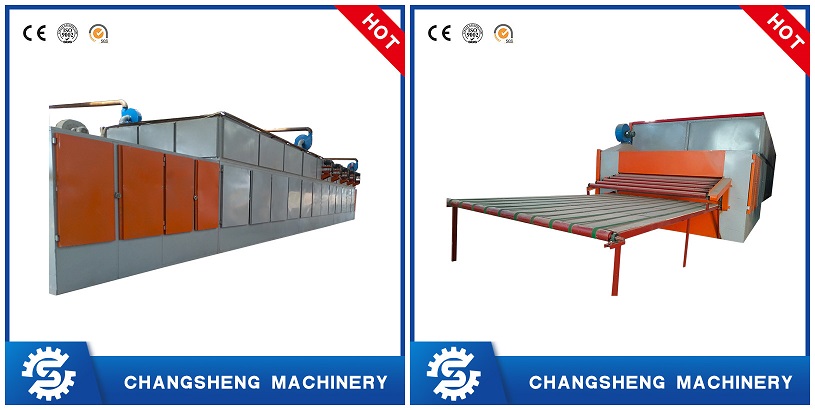

Roller Belt Face Veneer Dryer
Plywood Machine ： Veneer Dryer
The dried veneer are with flat surface and uniform moisture content.
| NAME | UNIT | PARAMETER | PARAMETER |
| Working width | MM | 2800/3000 | 3000 |
| Layers | 2/3 | 4 | |
| Heating section | MM | 11set/12set*2000mm | 14set*2000mm |
| Cooling section | MM | 1set*2000mm | 1set*2000mm |
| Feeding area length | MM | 2000/4000 | 1000 |
| Collecting area length | MM | 4000/5000 | 1000 |
| Transmission motor total power | KW | 7.5kw*2set/3set Frequncy control | 11kw*4set Frequency control |
| Total power | KW | 78.5/158.5 | 204 |
| Heating blower motor | KW | 5.5kw*11set/11kw*12set | 11kw*14set |
| Cooling blower motor | KW | 3kw/4kw*1set | 3kw*2set |
| Transmission speed | M/MIN | 1-30 | 0-30 |
| Radiator size | MM | 11set/12set*(L)2000*(W)400*(H)900/1500 | 14set*(L)2000*(W)400*(H)2000 |
| Heating medium | Steam or Conduction oil | steam or conduction oil | |
| Drying temperature | ℃ | 130-180/160-190 | 160-190 |
| Heat consumption | KCAL/H | 800000kcal/小时 120万大卡/2700000kcal/小时 140万大卡 | 4400000kcal/小时 300—400万大卡 |
| Veneer thickness | MM | 1-4 | 0.2-4.0 |
| Veneer Initial Water Content | % | 20-30/60 | 60 |
| Veneer Final Water content | % | 4±2/10±2 | 10±2 |
| Production Capacity | M³/H | 1.5-2/2.5-3 | 3.4-4 |
| Distance between rollers | MM | 180 | / |
| Diameter of rollers | MM | 102 | / |
| Quantity of rollers | PC | 580/920 | / |
| Machine Size | MM | (L)30000/35000*(W)4000/4200*(H)2800/3600 | (L)50000*(W)4200*(H)4500 |
| Machine Weight | KG | 40000/60000 | 74000 |
All of our plywood machine can be customized according to your requirement.
Our Service

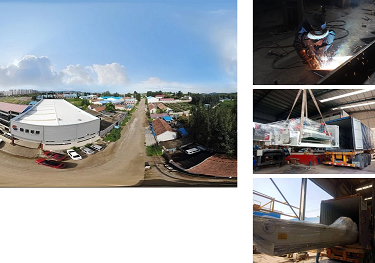

Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
Changsheng Wood Machinery comes from China, serves all the world!
