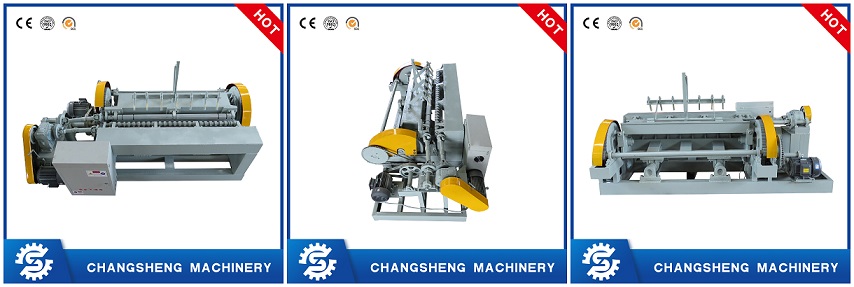

Spindle Less Hydraulic Wood Core Veneer Peeling Machine
The workable diameter can be range from 10 mm to 120 mm. Save resources and increase the yield of logs.
Machine parameters
| NAME | UNIT | PARAMETER |
| Motor for Single and Double Roller | KW | 4 |
| Feeding Motor | KW | 2.26 |
| Diameter of Single and Double Roller | MM | 62 |
| Reducer | 150 | |
| Peeling Knife Size | MM | 1400*12.7*130 |
| Veneer Thickness | MM | 0.5-1.7 |
| Max. Log Diameter | MM | 120 |
| Min. Last Core Diameter | MM | 10 |
| Speed | M/MIN | 40m/min Max. |
| Feeding Method | Gear drive | |
| Gear Material | Cast steel | |
| Gear Diameter | MM | 650 |
| Machine Size | MM | 2700*1650*750 |
| Machine Weight | KG | 1400 |
Can be customized according to customer requirements.

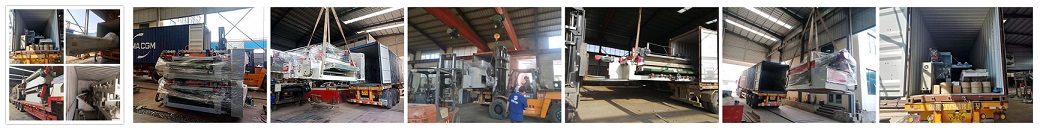

Packaging and transportation
| Packaging | |
| Size | (L)2700*(W)1650*(H)750 |
| Weight | 1400 KG |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |

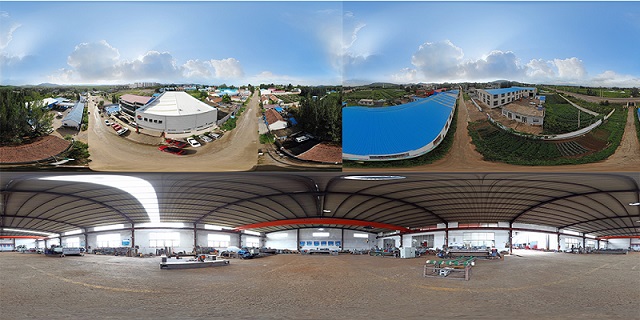

Over 20 years of development
Located in Linyi City, Shandong Province,
One of the largest wood-based panel production bases in China.
The main products include: Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs .
Changsheng Wood Machinery comes from China, serves all the world!
