CS-ZY1550C
Changsheng
8428391000
Hydraulic 4 feet log debarker with bark crusher
Plywood machine : 4 feet log debarker with bark crusher
Bark crushing function, the crushed bark could be used as raw material for particle board
Simple and reasonable structure, easy to operate and maintance.
Hydraulic pump station feeding, energy saving
Less wearing parts, cost saving and long-service time
Lamber saving, log loss less than 1%
| Max log diameter | 500 mm |
| Max. log length | 1500 mm |
| Single roller motor | 11 kw |
| Double roller motor | 11 kw |
| Hydraulic station motor | 7.5 kw |
| Crusher motor | 11 kw |
| Bark transmission | 2.2 kw |
| Total power | 42.7 kw |
| Single roller motor reducer | 350 |
| Double roller reducer | 350 |
| Peeling knife size | 1500*140*12.7mm |
| Single roller diameter | 150 mm |
| Double roller diameter | 150 mm/180 mm/200 mm |
| The roller pattern | Straight grain/twill/angle grain/wheel |
| Dimension | 4500*1800*1750 mm |
| Weight | 4000 kg |
All of our plywood machines can be customized according to your production requirement.
| Packaging | |
| Size | 4500*1800*1750 mm |
| Weight | 4000KG |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
>>Our Services
1.All kinds of mold can be made by customer's requirements
2.All the Parameters above just for reference,for they are updating all the time
3.Package:Standard packing
4.Warranty:All the machine enjoys one year's warranty,in this period
5.Any problems of machine,please feel free to contact us.We will try our best to make it.

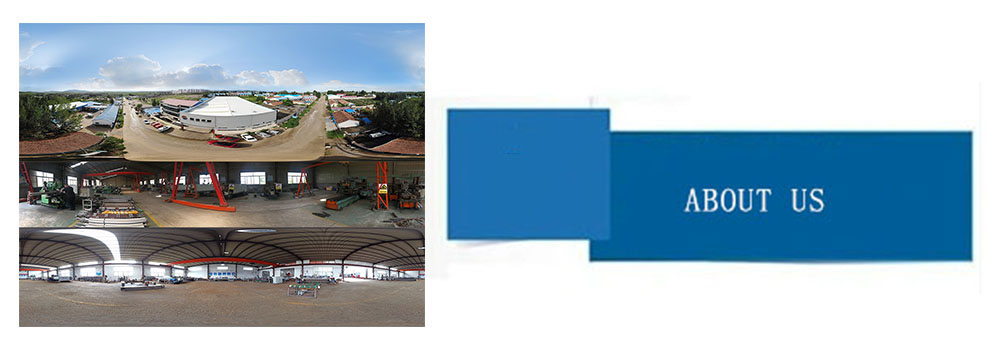

Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
Changsheng Wood Machinery comes from China, serves all the world!
