Plywood Cold Press Machine

Quantity:
  • CS-LY1448
  • Changsheng
  • 8456920000

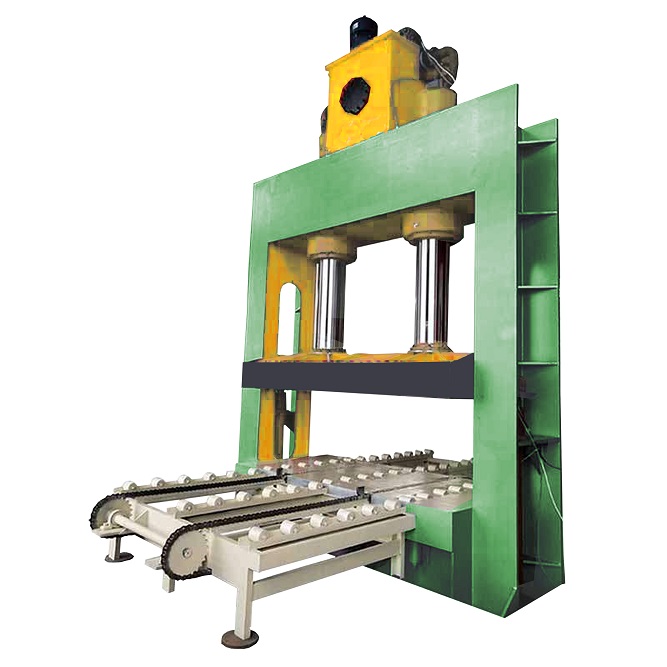

Plywood Cold Press Machine
cold press

  1. Hydraulic station are bought from Taiwan, high stability and long service time.

  2. Wuxi cylinder, no oil leakage and uniform pressure

  3. Up to Down structure, improve the plywood quality

  4. Vibration aging treatment, release the inner stress

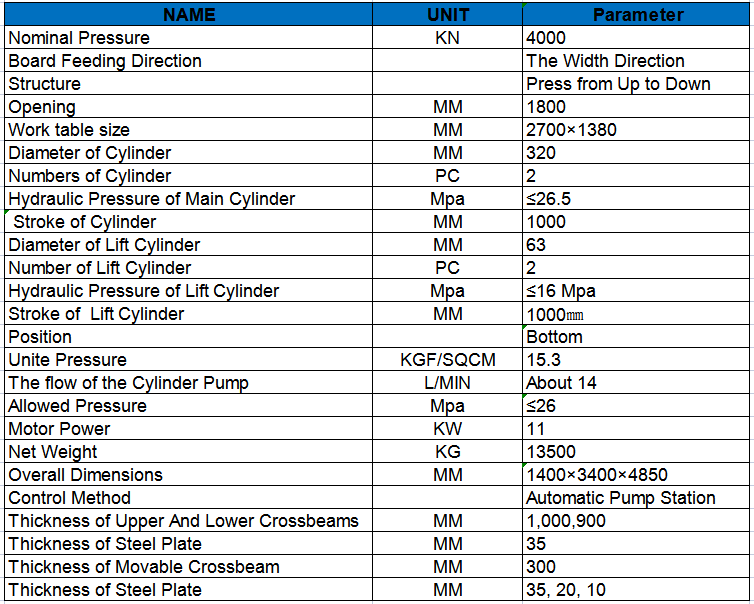

NAME UNIT Parameter
Model
CS-LY4818/400
Nominal Pressure KN 4000
Board Feeding Direction
The Width Direction
Structure
Press from Up to Down
Opening MM 1800
Work table size MM 2700×1380
Diameter of Cylinder MM 320
Numbers of Cylinder PC 2
Hydraulic Pressure of Main Cylinder Mpa ≤26.5
Stroke of Cylinder MM 1000
Diameter of Lift Cylinder MM 63
Number of Lift Cylinder PC 2
Hydraulic Pressure of Lift Cylinder Mpa ≤16 Mpa
Stroke of  Lift Cylinder MM 1000㎜
Position
Bottom
Unite Pressure KGF/SQCM 15.3
The flow of the Cylinder Pump L/MIN About 14
Allowed Pressure Mpa ≤26
Motor Power KW 11
Net Weight KG 13500
Overall Dimensions MM 1400×3400×4850
Control Method
Automatic Pump Station
Thickness of Upper And Lower Crossbeams MM 1,000,900
Thickness of Steel Plate MM 35
Thickness of Movable Crossbeam MM 300
Thickness of Steel Plate MM 35, 20, 10

微信图片_20190827160608

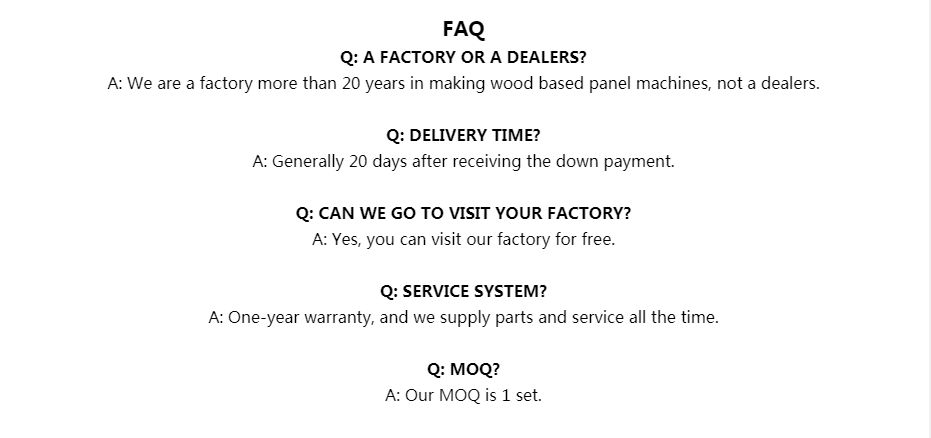

微信图片_20190828142329


cold press

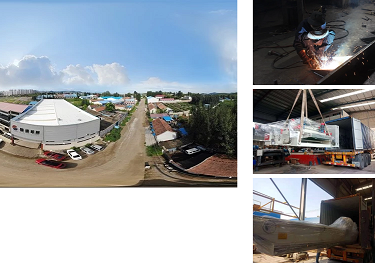

    Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.

     In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.

     High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.

     Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.

     Changsheng Wood Machinery comes from China, serves all the world!
