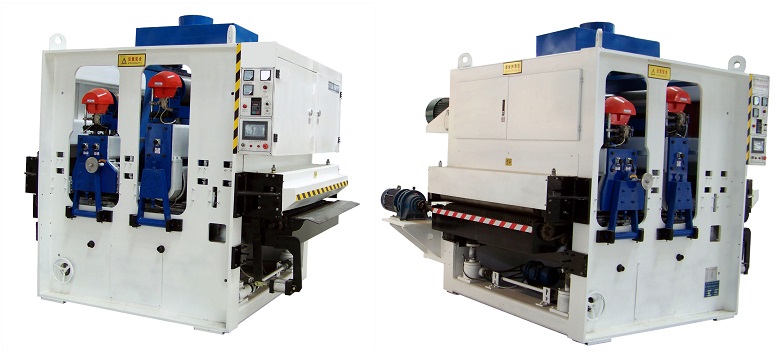

High-efficiency high-speed plywood sanding machine
This machine is mainly used for the sanding of plywood. It has the characteristic of high accuracy and high speed.
| Model | CS-SG1421 | CS-SG1422 |
| Max. Working Width | 1400 MM | 1400 MM |
| Working Thickness | 2-100 MM | 2-100 MM |
| Working Length | >= 400 MM | >= 400 MM |
| Working Accuracy | ±0.6 MM | ±0.6 MM |
| The 1st Sanding Belt Power | 75 KW | 75 KW |
| The Fuction of 1st Sanding Belt | Calibrating | Calibrating |
| The 2nd Sanding Belt Power | 55 KW | 45 KW |
| Sanding Belt Speed | 28 M/S | 28 M/S |
| Sanding Belt Size | 3000*1250 MM | 3000*1250 MM |
| Total Power | 139 KW | 129 KW |
| Frequency Power | 7.5 KW | 7.5 KW |
| Air Pressure | 0.5 -0.8 Mpa | 0.5 -0.8 Mpa |
| Compressed Air Consumption | 2 CBM/H | 2 CBM/H |
| Sawdust Collection Air Speed | 20-30 M/S | 20-30 M/S |
| Frame | Steel Plate | Steel Plate |
| Control Method | Touch Screen | Touch Screen |
| Transmission Method | Roller&Belt | Roller&Belt |
| Driving Method | Shaft Drive Transmission | Shaft Drive Transmission |
| Driving Method | 13000 KG | 13000 KG |
| Machine Size | 3300*3400*2500 | 3300*3400*2500 |

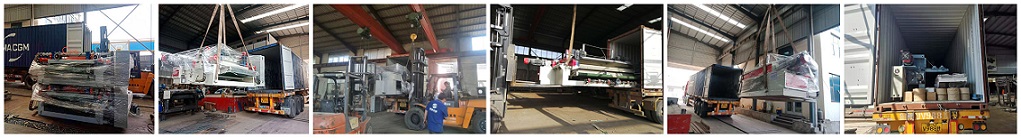

Product transportation and packaging
| Packaging | |
| Weight | 13000KG |
| Size | 3300*3400*2500 |
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
