CS-SGJ-3
Changsheng
8465930000

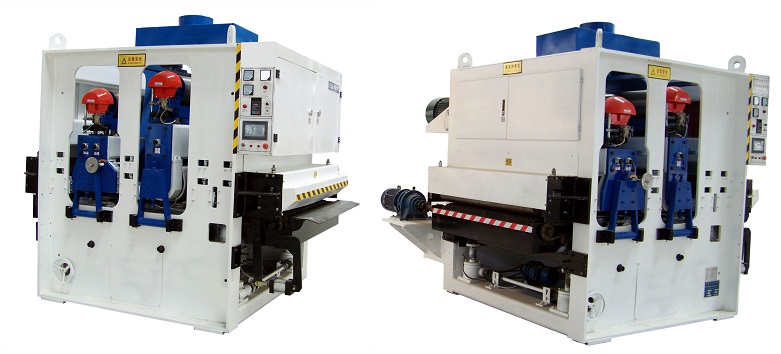

Woodworking Plywood Machine Sanding Sander Machine
This machine is mainly used for the sanding of plywood. It has the characteristic of high accuracy and high speed.
| Model | CS-SG1421 | CS-SG1422 |
| Max. Working Width | 1400 MM | 1400 MM |
| Working Thickness | 2-100 MM | 2-100 MM |
| Working Length | >= 400 MM | >= 400 MM |
| Working Accuracy | ±0.6 MM | ±0.6 MM |
| The 1st Sanding Belt Power | 75 KW | 75 KW |
| The Fuction of 1st Sanding Belt | Calibrating | Calibrating |
| The 2nd Sanding Belt Power | 55 KW | 45 KW |
| The Fuction of 2nd Sanding Belt | Calibrating | Polishing |
| Sanding Belt Speed | 28 M/S | 28 M/S |
| Sanding Belt Size | 3000*1250 MM | 3000*1250 MM |
| Total Power | 139 KW | 129 KW |
| Frequency Power | 7.5 KW | 7.5 KW |
| Air Pressure | 0.5 -0.8 Mpa | 0.5 -0.8 Mpa |
| Compressed Air Consumption | 2 CBM/H | 2 CBM/H |
| Sawdust Collection Air Speed | 20-30 M/S | 20-30 M/S |
| Frame | Steel Plate | Steel Plate |
| Control Method | Touch Screen | Touch Screen |
| Transmission Method | Roller&Belt | Roller&Belt |
| Driving Method | Shaft Drive Transmission | Shaft Drive Transmission |
| Driving Method | 13000 KG | 13000 KG |
| Machine Size | 3300*3400*2500 | 3300*3400*2500 |
Function and Characteristics:
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
(2) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.
Plywood production line
Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
Service
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
