CS-SGJ-4
Changsheng

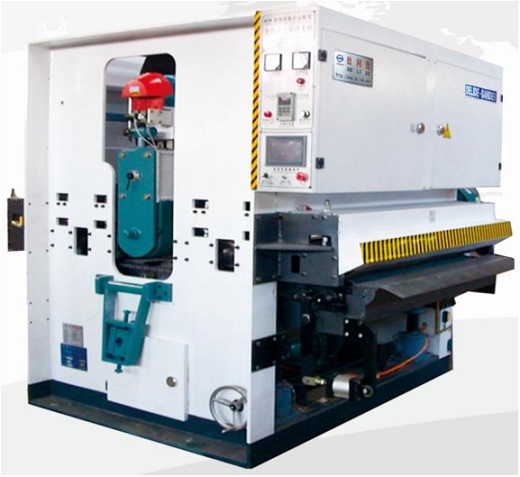

Woodworking Sanding Machine for Plywood
Main technical parameter table
Max Processing width (mm) | 1400 | Regular air pressure（MPa） | 0.5-0.8 |
Processing thickness（mm） | 2-100 | Compressed air consumption（m3/h） | 2 |
Processing length（mm） | ≧400 | Dust collection system wind speed（m/s） | 30-30 |
Precision（mm） | ±0.1 | Machine structure | Steel frame |
Belt motor power（kw） | 75 | control method | Touch screen |
Belt speed（m/s） | 28 | Transmission method | Roller conveyor + conveyor |
Belt size（L*D）（mm） | 3000*1350 | Transfer method | Shaft drive |
Total installed power（kw） | 84 | Net weight of machine（T） | 10 |
Inverter power（kw） | 7.5 | Machine size（mm） | 2900*3400*2500 |

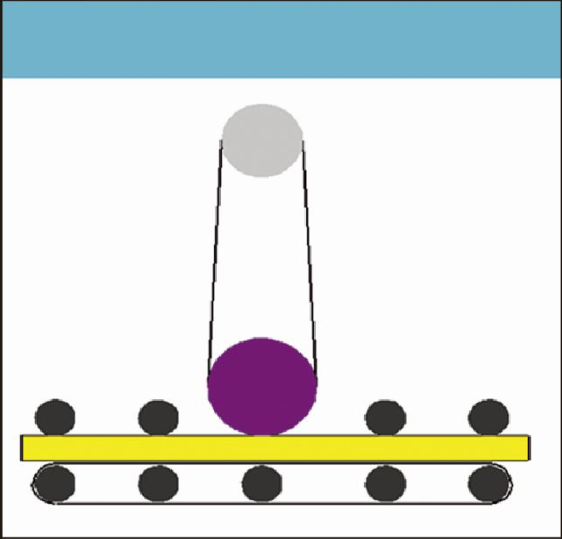

(1) The fixed-thickness spiral roller is installed at an oblique angle of 8 ° and forms an angle with the wood to be processed. It plays the role of no collapse groove when sanding and fixed thickness, which can effectively eliminate the wave ripple phenomenon;
(2) The amount of sanding is large, and the polishing accuracy is high. The thickness tolerance of the workpiece after single-sided grinding is within 0.1mm;
(3) Adopting frequency-converting speed-regulating feeding, the feeding speed can be adjusted arbitrarily, and it can be equipped with an automatic thickness sensor to automatically adapt to the thickness of the sheet to prevent car jams and large wave patterns.
(4) With sand-proof trench device, controlled by independent research and development procedures to eliminate sand-ditch phenomenon during shutdown and protect the board;
(5) The combined feeding of the roller and conveyor dual-drive system plays an effective buffering role without slipping;
(6) Adopt advanced micro-computer anti-return device, independent research and development program control, to prevent sheet from popping out.
*Roller、Frame | ||||||
Number | Name | Specifications / model | Quantity | Brand | Brand origin | Note |
1 | Main sander | D450 | 1 | DELIDE | Domestic | |
2 | Support roller | D377 | 1 | DELIDE | Domestic | |
3 | Support roller、pressure roller | D240、D159 | 13 | DELIDE | Domestic | |
4 | High-strength rack | GB Q235B*25mm | 1 | DELIDE | Domestic | |
*Motor power | ||||||
Number | Name | Specifications / model | Quantity | Brand | Brand origin | Note |
1 |
75kw Motor | 1TL001-2DB | 1 | Beide | Siemens Motors (China) Co., Ltd. |
pick one of three |
2 | YX3-280S-4 | 1 | Lijiu/Tekong | Shandong Lijiu Special Motor Co., Ltd./Nanjing Control Motor Co., Ltd. | ||
3 | 7.5kw Motor | YX3-132M-4 | 1 | Lijiu/Tekong | Shandong Lijiu Special Motor Co., Ltd./Nanjing Control Motor Co., Ltd. |
pick one of two |
4 | 7.5kw Reducer head | R87-P7.5-17.08-M1 | 1 | Dongfang Transmission | Zhejiang Dongfang Transmission Machinery Co., Ltd. | |
5 | BCH Gear reducer | BCH1-35-Y90-1.5-M1 | 1 | Dongcheng reducer | Changzhou Dongcheng Reducer Machinery Co., Ltd. | |
*Bearing | ||||||
Number | Name | Specifications / model | Quantity | Brand | Brand origin | Note |
1 | Spherical roller bearing | 22315EAE4 | 2 | NSK | Japan | A sanding roller D450 |
2 | 22312EAE4 | 2 | Support roller D377 | |||
3 | Deep groove ball bearing | 6309DDUCM | 2 | NSK | Japan | Conveyor belt bearing support roller D240 |
4 | Spherical Bearings | UC212D1 | 4 | NSK | Japan | Support roller D240 |
5 | UC210D1 | 20 | Support roller D159、Pressure roller D159 | |||
6 | Joint bearing | GE45ES | 2 | Langsheng | Domestic | Deflection of the sliding shaft at the conveyor belt tension roller D240 |
7 | Spherical Bearings | UC207 | 4 | QSLD | Domestic | Low-speed lifting leg support |
*Bearing block | ||||||
Number | Name | Specifications / model | Quantity | Brand | Brand origin | Note |
1 | Adjustable roller bearing seat | DLD22315 I | 2 | Delide | Domestic cast steel seat | A sanding roller D450 |
2 | DLD22312 | 2 | Support roller D377 | |||
3 | Spherical bearing housing | F212 | 4 | Delide | Domestic cast steel seat | support roller D240 |
4 | FL210 | 8 | support roller D159 | |||
5 | T210 | 12 | Pressure roller D159 | |||
6 | P207 | 4 | Low-speed lifting leg support | |||
*Electrician | ||||||
Number | Name | Specifications / model | Quantity | Brand | Brand origin | Note |
1 | PLC programmable controller | S7-200 SMART | 1 | Siemens | Germany | |
2 | CNC touch screen | SMART 700IEV3 | 1 | Siemens | Germany | |
3 | Contactor | 3RT5054-1AP36 | 3 | Siemens | Germany | |
4 | 3RT6024-1AN20 | 2 | ||||
5 | Inverter | ALPHA6000E | 1 | Aerfa | Shenzhen | 7.5kw |
6 | Plastic case circuit breaker | NM1-630S/3300 | 1 | Zhengtai | Zhejiang | |
7 | Miniature Circuit Breaker | Multi9 C65N | 4 | Schneider | France | |
8 | Control transformer | BK-500VAE | 1 | Huayun equipment | Shanghai | |
9 | Ammeter | 6L2-A | 1 | Changcheng | Zhejiang | 200/5 |
10 | Voltmeter | 6L2-V | 1 | Changcheng | Zhejiang | 450V |
11 | Current Transformer | BH-0. 66 30I | 1 | Zhengtai | Zhejiang | |
12 | Motor protector | SX801AL | 1 | Suxue | Shanghai | |
13 | Switching power supply | S-35-24 | 2 | Zhenan Electric | Zhejiang | |
14 | Time-limited relay | AH3-3 | 1 | Songling | Shenzhen | |
15 | Electro-optic switch | CDD-11N* | 3 | OPTEX | Japan | |
16 | FA18-8NA | 2 | Feiling | Zhejiang | ||
17 | Lens Optoelectronics | PTE-PM5SK | 3 | Lanbao | Shanghai | |
18 | Rotary encoder | CHA-10B-G5-24C | 1 | Beixin Optoelectronics | Heilongjiang | |
*Pneumatic accessories | ||||||
Number | Name | Specifications / model | Quantity | Brand | Brand origin | Note |
1 | The electromagnetic valve | AC187V-253V | 3 | Delide | Taiwan (customized) | |
2 | Cylinder | SC63×7 | 1 | Dongyang | Taiwan (customized) | |
3 | SC100×50 | 2 | Dongyang | Taiwan | ||
4 | Water separator | BFC-3000 | 1 | BFC | Zhejiang | |
5 | Air pressure disc brake | A-105 | 1 | CHL Xuanhao Transmission | Shanghai | |
