Reasons that affect the quality of the veneer

Views: 0     Author: Site Editor     Publish Time: 2022-07-26      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

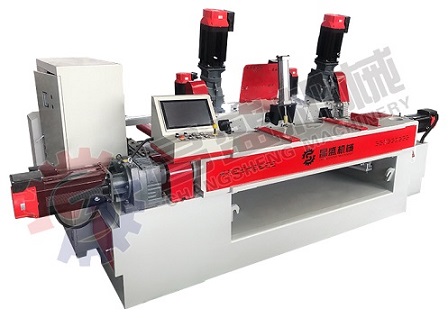

spindleless rotary veneer peeling machine

During the use of the spindle less rotary veneer peeling machine, when the wood is about to be cut, the tail board is thin and the tail board is rolled due to the lack of wood. When this phenomenon occurs, how to adjust the spindle less rotary veneer peeling machine to improve it?



The solution to a series of problems such as uneven thickness of the board, thin tail board, or tail board roll, knife jumping and so on?



If the thickness of the veneer is uneven, first use a caliper to measure whether the two ends of the wood core are the same size. If the tail plate is thin, the high profile of the knife should be a little higher, so that the thickness of the tail plate is 0.2MM different from the thickness required to be rotated (if a 1.7MM plate is required, the tail plate is 1.5MM). The tail plate roll lowers the height of the knife a little, so that the thickness of the tail plate is 0.2MM different from the thickness required to be rotated.



Reasons for the poor peeling of the spindle less rotary veneer peeling machine: 1. The CNC box of the spindle less rotary veneer peeling machine is not well adjusted. 2. There is a quality problem in the CNC box of the rotary cutting machine without a card shaft, or a natural aging problem that occurs due to a long time of use. 3. The problem of single roll is also related to the single roll. If the single roll of the rotary cutting machine without card axis is not correct, this situation will occur in the veneer you produce.



How to install the knife in the spindle less rotary veneer peeling machine?



With the development of science and technology, more and more people use the spindle less rotary veneer peeling machine. How does the spindle less rotary veneer peeling machine install the knife? The following is a detailed introduction for you.

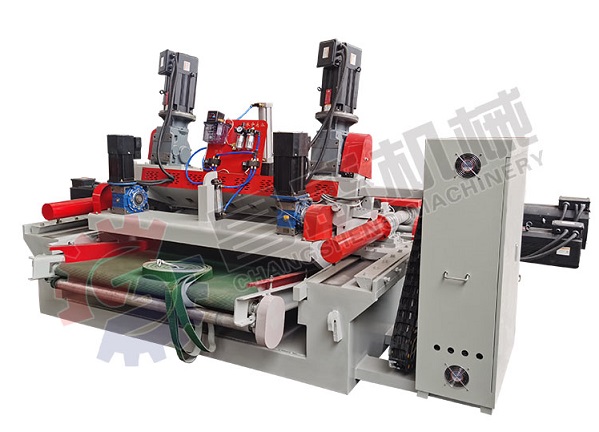

 spindle less rotary veneer peeling machine

1. Put the knife in the groove and turn the nuts at both ends.

2. The height is set to the height of the center line of the clamping shaft. Rotate the bolt of the top knife to fix the height of the knife at both ends first, then fix the height in the middle, and gradually position it to keep the height of the knife at both ends on the same horizontal line.

3. Reinforce all nuts.

The above is about the reasons why the peeling effect of the spindle less rotary veneer peeling machine is not good and how to install the knife in the spindle less rotary veneer peeling machine. I hope the summary content can help you! If you want to know more about the spindle less rotary veneer peeling machine, you can contact us at any time.
