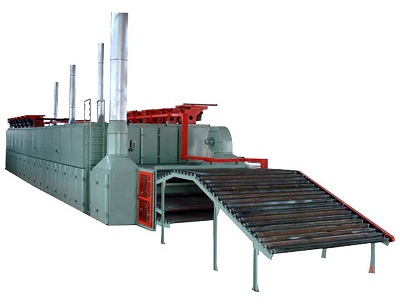

Roll Core Veneer Dryer machine

This product is used to blow the core veneer or face veneer with the hot air in the heating exchanger.

Quantity:
  • CS-GHG1
  • Changsheng
  • 8419320000

Roll Core Veneer Dryer machine

veneer dryer

veneer dryer

plywood machine : veneer dryer

This product is used to blow the core veneer or face veneer with the hot air in the heating exchanger.

Roll Mesh Belt Veneer Dryer

ITEM

DETAILS

Veneer capacity

550KG/M³

Veneer Thickness

"Roller type 1.0-3.0mm

Mesh belt type 0.5-1.0mm

Veneer Initial Water Content

80%

Veneer Final Water content

10%

Load Ratio

80-85%

Working Width

Roller type 2800mm

Mesh belt type 2650mm

Drying Layer Number

3 layers

Length of Heating Section

2000mm*8=16000

Length of Cooling Section

2000mm*1=2000mm

Transmission Speed

"Roller type 1.5-15

Mesh belt type 3-32"

Drying Capacity

Roller type 2.3

Mesh belt type 1.2"

Steam Consumption

2080KG/H

Power of Transmission Motor

7.5KW*3

Power fo Hot Ventilation

11KW*8

Power fo cool Ventilation

7KW

Total Power

117.5KW

Machine Size

23680mm*5200mm*4210mm

Machine Weight

65500

Prodution Capacity

Length of heating section

Layer

Capacity

2000mm*8set

1

Mesh belt type 0.4M³/DAY  Roller type 0.75M³/DAY

2000mm*8set

2

Mesh belt type 0.8 M³/DAY  Roller type 1.5 M³/DAY

2000mm*8set

3

Mesh belt type 1.2 M³/DAY  Roller type 2.3M³/DAY

2000mm*9set

1

Mesh belt type 0.43 M³/DAY  Roller type 0.84M³/DAY

2000mm*9set

2

Mesh belt type 0.86 M³/DAY  Roller type 1.68M³/DAY

2000mm*9set

3

Mesh belt type 1.3 M³/DAY   Roller type 2.5M³/DAY

2000mm*10set

1

Mesh belt type 0.5 M³/DAY   Roller type 9.3M³/DAY

2000mm*10set

2

Mesh belt type 1M³/DAY     Roller type 18.6M³/DAY

2000mm*10set

3

Mesh belt type 1.5 M³/DAY   Roller type 2.8M³/DAY

2000mm*11set

1

Mesh belt type 0.57 M³/DAY  Roller type 1.1M³/DAY

2000mm*11set

2

Mesh belt type 1 M³/DAY    Roller type 2.2M³/DAY

2000mm*11set

3

Mesh belt type 1.7 M³/DAY   Roller type 3.1M³/DAY

2000mm*12set

1

Mesh belt type 0.6 M³/DAY   Roller type 1.1M³/DAY

2000mm*12set

2

Mesh belt type 1.2 M³/DAY   Roller type 2.2M³/DAY

2000mm*12set

3

Mesh belt type 1.8 M³/DAY   Roller type 3.3M³/DAY

2000mm*13set

1

Mesh belt type 0.63 M³/DAY  Roller type 1.23M³/DAY

2000mm*13set

2

Mesh belt type 1.26 M³/DAY  Roller type 2.46M³/DAY

2000mm*13set

3

Mesh belt type 1.9 M³/DAY   Roller type 3.7M³/DAY

2000mm*15set

1

Mesh belt type 0.73 M³/DAY  Roller type 1.4M³/DAY

2000mm*15set

2

Mesh belt type 1.5 M³/DAY   Roller type 2.8M³/DAY

2000mm*15set

3

Mesh belt type 2.2 M³/DAY   Roller type 4.2M³/DAY

2000mm*16set

3

Mesh belt type 0.8 M³/DAY   Roller type 1.5M³/DAY

2000mm*16set

1

Mesh belt type 1.6 M³/DAY   Roller type 3M³/DAY

2000mm*16set

2

Mesh belt type 2.4 M³/DAY   Roller type 4.5M³/DAY

2000mm*17set

3

Mesh belt type 0.83 M³/DAY  Roller type 1.56M³/DAY

2000mm*17set

1

Mesh belt type 1.66 M³/DAY  Roller type 3.12M³/DAY

2000mm*17set

2

Mesh belt type 2.5 M³/DAY   Roller type 4.7M³/DAY

2000mm*18set

3

Mesh belt type 0.9 M³/DAY   Roller type 1.7M³/DAY

2000mm*18set

1

Mesh belt type1.8 M³/DAY    Roller type 3.4M³/DAY

2000mm*18set

2

Mesh belt type2.7 M³/DAY    Rollertype 5.1M³/DAY

All plywood machine can be customized according to your requirement.

veneer dryer

Equipment Advantage

1.In the 30 meter long ventilation area, 28 meters are the hot wind areas, and the remaining 2 meters are the cold wind areas.Every 2 meters hot air zone is equipped with 1 hot fans to achieve the effect of completely drying veneer.

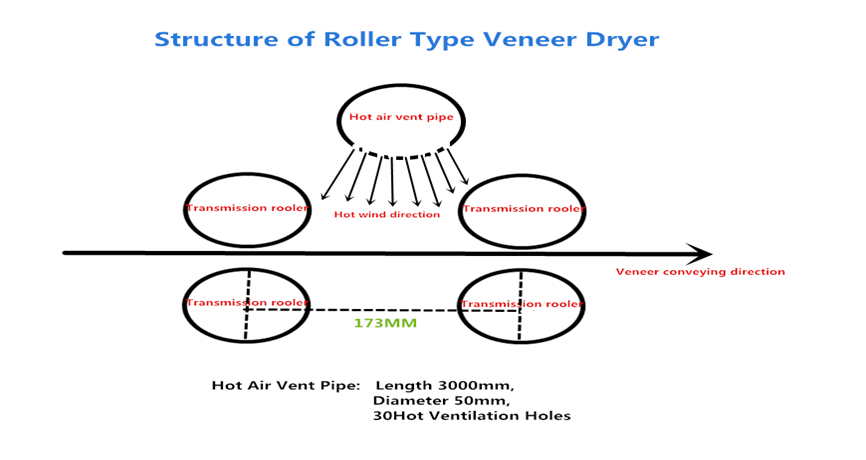

2.The diameter of the Roller is 102mm,this will make the force area of the veneer large,and it is not easy to plug and no edge warp.

3.High temperature bearings are used at both ends of the roller.Resistant to 400 degree high temperature,it can be used for 4 years.

4.75% parts of the fuselage are assembled by screws,easy  to facilitate disassembly, repair, maintenance and replacement.

5.This machine is more than 30 meters, adopts double chain transmission, makes the roller force evenly, and is not easy to jam.

6.This machine is equipped with a 6 meter transmission machine to remove all moisture from the veneer.

烘干机

veneer dryer

微信图片_20190827160608

veneer dryer

微信图片_20190828142329

veneer dryer

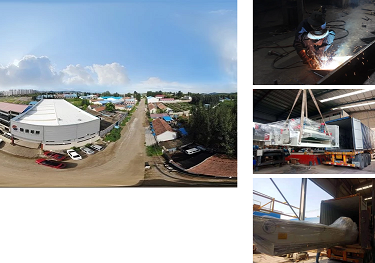

  Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.

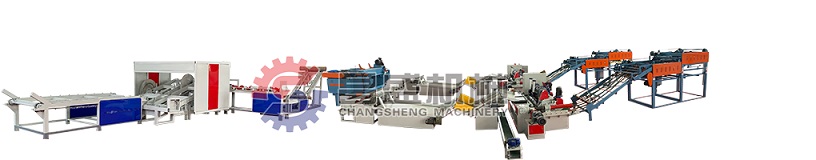

     In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.

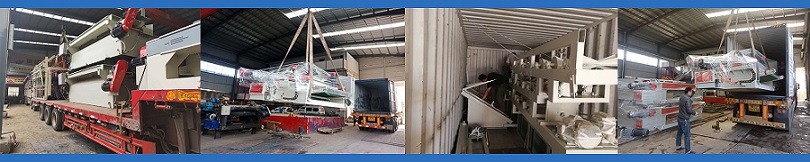

     High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.

     Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
