| Weight: | |
|---|---|
| Machine Size: | |
| Total Power: | |
| Quantity: | |
CS-LSHG
CHANG SHENG
8419320000
Vertical Core Veneer Dryer For Plywood
Plywood machine : vertical veneer dryer
This machine is used for drying peeled veneer in the veneer production line, it consists of inlet , drying area, cooling area, outlet, its drying size can be customzied according to your need(capacity, technology and working space).
This machine is used for the continuous drying of core veneer, easy to operate and maintance.The energy consumption of this dryer is 30 percent lower than roller dryer.And the cost is 40 percent lower than roller dryer. Less ground area occupation.

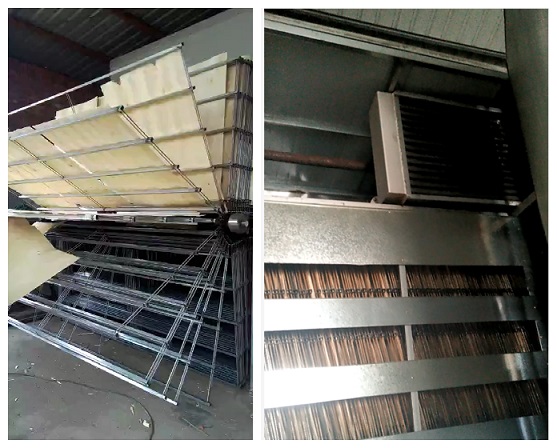

vertical veneer dryer:use the chain to bring the veneer or finished board into the drying room for circulating drying.
The vertical veneer dryer is a summary of the advantages and disadvantages of many previous veneer dryers after years of market research. Our dryer features:
1. The drying cost is low. The drying cost of this vertical dryer is less than 7.2$/M⊃3;, which is 30-60% of the drying cost of other dryers;
2. The drying output is high, and the vertical plywood method increases the loading capacity of the veneer, which is 30-80% higher than that of other dryers;
3. The equipment cost is low. Our company has reduced the production loss of raw and auxiliary materials and improved the working efficiency through the standardization and modular production of the vertical dryer parts.
4. This equipment needs to be assembled on the customer's factory site, so this equipment can be installed according to the customer's specific location requirements.
| NAME | UNIT | PARAMETER |
| Working width | MM | 2800 |
| Heating length | MM | 9set*2000mm=18000mm |
| Veneer feeding section length | MM | 3300 |
| Veneer output section length | 4000 | |
| Dehumidifier motor | KW | 1.5kw*4=6kw |
| Transmission motor total power | KW | 4 kw Frequency conversion |
| Blower motor | KW | 2.2kw*9=19.8kw |
| Total power | KW | 29.8 |
| Transmission speed | M/MIN | 0-3 |
| Radiator size | MM | (L)1900*(W)200*(H)900 |
| Radiator Qty | SET | 9 |
| Heating medium | steam/Conduction oil | |
| Drying temperature | ℃ | 60-160 |
| Heat energy consumption | KCAL/H | 60000 |
| Veneer thickness | MM | 1.0-4.0 |
| Veneer initial moisture content | % | 40 |
| Veneer final moisture content | % | 5 |
| Production Capacity | CBM/H | 2 |
| Machine size | MM | (L)25300*(W)3400*(H)3800 |
| Machine weight | KG | 20000 |
All our plywood machine can be customized according to your production requirement.

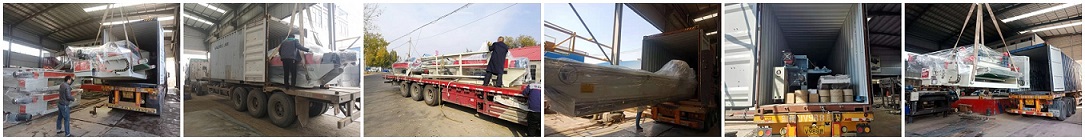

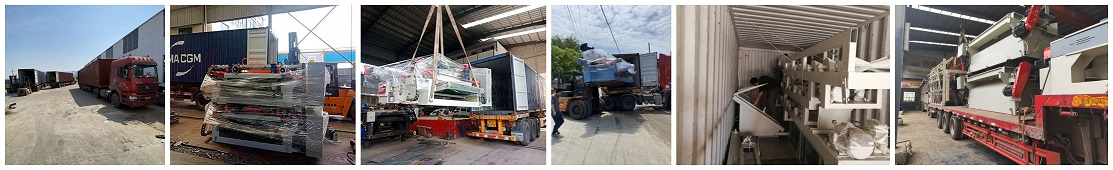

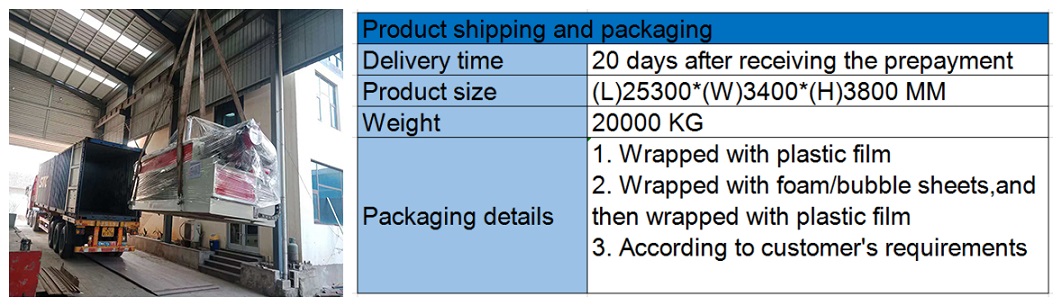

product packaging and shipping
Our service
| 1.Pre-sale |
| 1.Free consultation about the equipment. |
| 2.Reasonable purchasing plan and the production line designing plan are offered according to the clients' special requirment to help you to select the most suitable ma.chinery. |
| 3.Welcome to visit our factory and check our machine |
| 2.During-sales |
| 1.We inspect and test the machine before delivery. |
| 2.We are willing to freely tran your technicist and first-line operator. |
| 3.After-sales |
| 1.Engineers are available to service overseas. |
| 2.Videos about installing and debuging the equipment. |

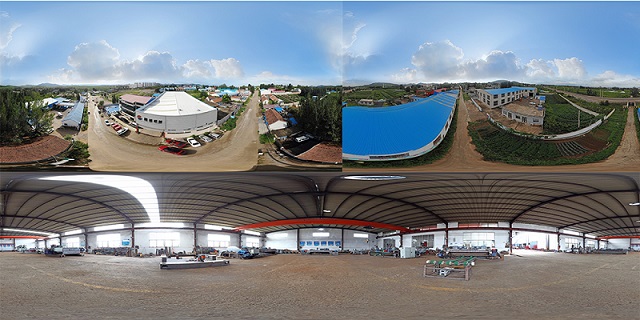

After more than 20 years of continuous development, Changsheng Wood Industry Machinery has become a modern company integrating design, development, production and installation of plywood production machinery.
The main products are veneeer peeling machine (rotary cutting machines), log debarker(log rounding machines), veneer stackers,cutter grinder( knife sharpeners )and veneer dryers(veneer drying) and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and intimate customer service are the biggest responsibility of Changsheng Wood Industry Machinery to each customer. The company provides 24-hour service for customers. The company adheres to the business philosophy of "survive by quality and develop by innovation". The products have been exported to more than 30 countries including Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia and Gabon. And regions, and won wide recognition and praise from domestic and foreign customers.
