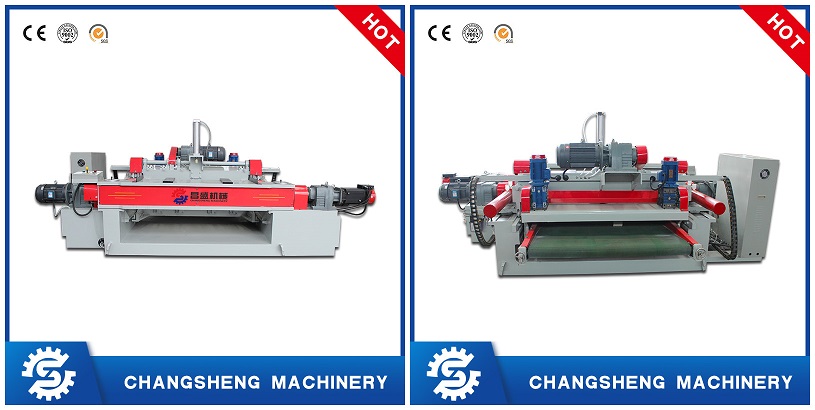

4 Feet Plywood Hydraulic Spindle less Veneer Peeling Machine
This machine can be used for the rotary cutting of softwood and hardwood with diameter lower than 500mm.The peeling speed can be adjusted.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 7.5/11(servo motor) |
| Power of Clipper Motor | KW | 1.5 |
| Power of Rubber Roller Motor | KW | 1.5 |
| Total Power | KW | 33/36.5 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV90 | |
| Rubber Roller Reducer | RV90 | |
| Segments of single roller | 2 | |
| Segments of double roller | 2 | |
| Diameter of single roller | MM | 117 |
| Diameter of double roller | MM | 122 |
| Diameter of rubber roller | MM | 150 |
| Peeling Knife Size | MM | (L)1500*(W)140/160*(T)12.7 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 500 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 23-60(可调速 Adjustable speed ) |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | （L)4450*(W)2100*(H)1700 |
| Machine Weight | KG | 6500 |
| Suitable for | Poplar, eucalyptus etc. |
Product video
Veneer peeling machine is a very technical equipment in plywood line equipment.The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
Packing & Delivery
| Packaging | |
| Size | （L)4450*(W)2100*(H)1700 |
| Machine weight | 6500KG |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
*Overseas service person is available

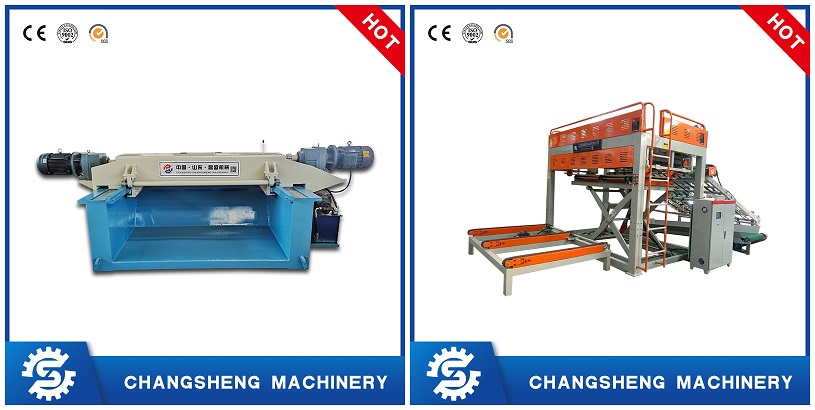

Related Products
Why Choose Us
7 peoples
We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.
20 years
We have been engaged in woodworking machinery for 20 years and have extensive industry experience.
365 days
We are waiting for your call for 365 days, providing you with services such as purchase and support.
3000 customers
More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.
10000 experiments
Our factory has conducted more than 10,000 innovative experiments since its inception.
Only to produce the most suitable equipment for the customer.
