Automatic Spindleless 8 Feet Veneer Production Line

This production line is mainly used for the production of 8 feet plywood veneer

Quantity:
  • CS-8SCX-2
  • Changsheng

Automatic Spindleless 8 Feet   Veneer Production Line

Brief Introduction:

1.More than 20 years'  professional woodworking machinery producing history.

2.Good quality and low price.

3.Easy and safe to operate .

4.Improve the working efficiency .

5.All series of products can be customized according to customer requirements.

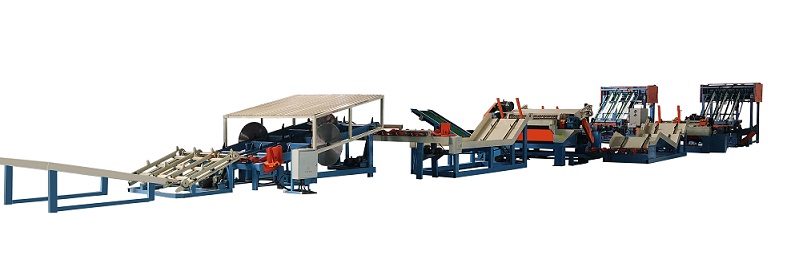

plywood veneer production line压缩

Product Description:

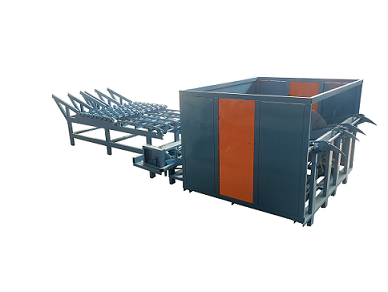

Log cutting saw

log cutting saw




The cross-section of the logs is smooth, the size is standard, and the power is strong. high working efficiency.



Configure
NAME UNIT PARAMETER
Saw Blade Motor KW 11*3
Saw Diamerer MM 1000
Log Feeding Motor KW 2.2
Log Transmission Motor  KW 1.5
Log Transmission Motor  KW 2.2*2
Max. Log  Length MM 2700
The maximum diameter of cut logs MM 450
Production capacity
Available for two veneer peeling machines
Machine Size MM (L)4000*(W)3600*(H)2000
Weight  KG 2000

Product details

log cutting saw

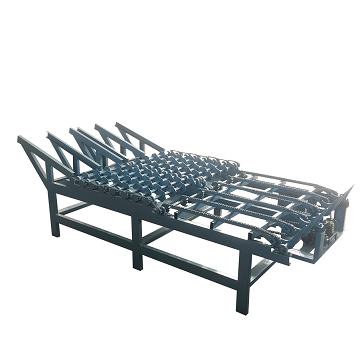

With log storage table, can store and transfer logs

log cutting saw




The machine has a protective cover to ensure production safety

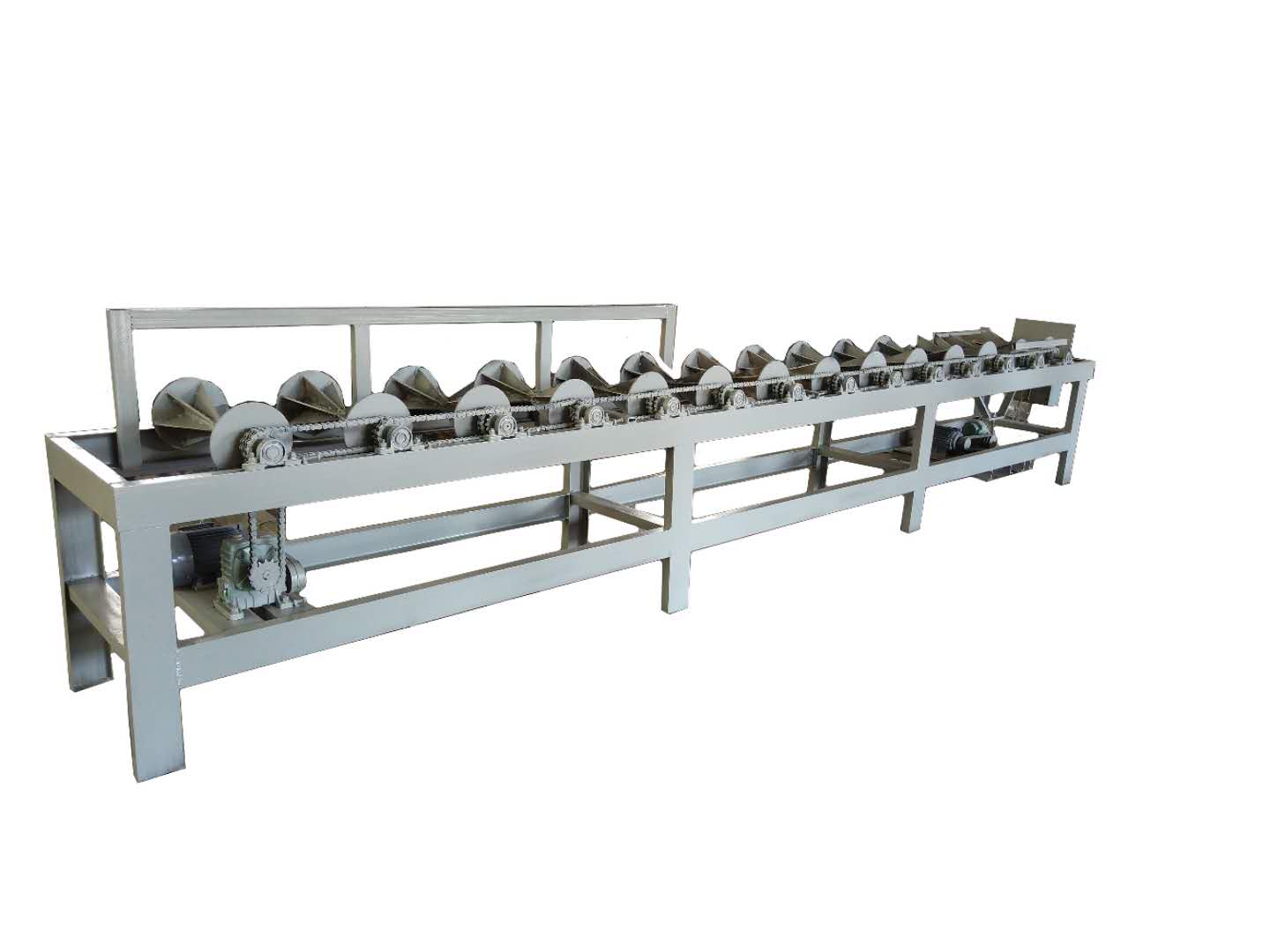

Wood transfer machine

Wood transfer machine



This machine is used for the transportation of logs

Configure
NAME UNIT PARAMETER
Maximum diameter of conveying  MM 700
Transfer speed  M/MIN 100
Transmission motor power KW 1.5*2
Redecer type selection
Worm gear reducer
Machine Weight KG 700

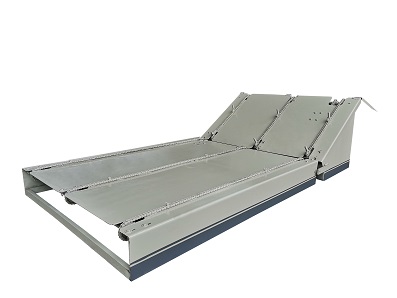

Log feeding machine

log feeding machine



This machine is suitable for the transport of large diameter logs.It has the characteristics of:stable running, simple in structure, easy to operate, and long service time.


Configure
NAME UNIT PARAMETER
Power configuration KW 3
Max. Log Length MM 2700
Max. Log Diameter MM 700
Machine Size MM (L)3000*(W)2700*(H)1500
Machine Weight KG 2000

Product details

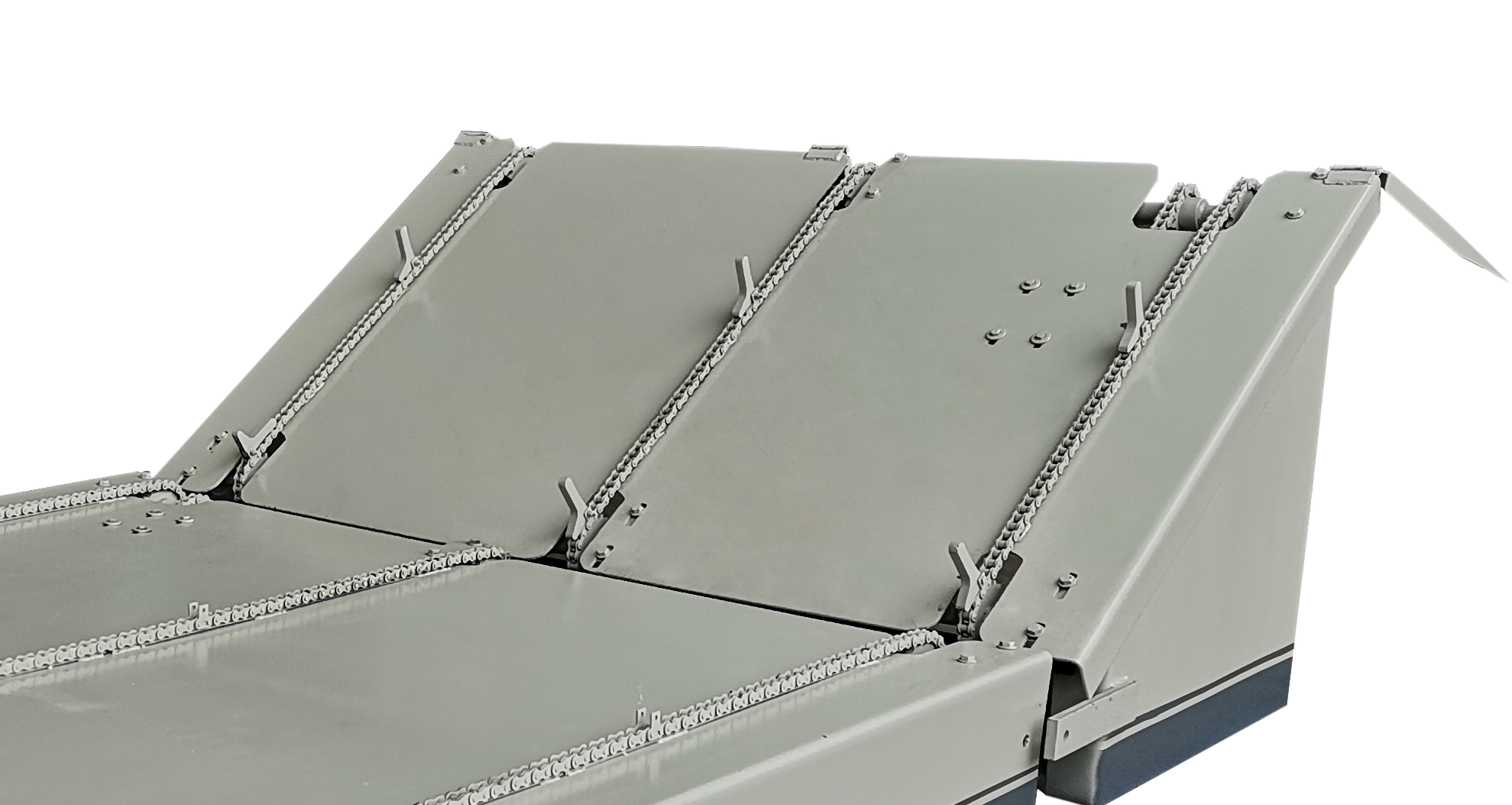

log feeding machine


This machine can transport logs to the workbench.

This machine carries more weight logs and runs smoothly.


Log debarker machine

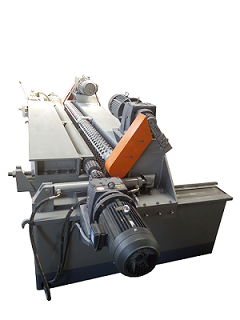

8 feet log debarker



This log debarking machine is suitable for the debarking and rounding of the logs with the length lower than 2700 mm. Its work efficiency is 15 percent higher than common debarker.

Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Hydraulic Station  KW 7.5
Total Power KW 37.5
Single Roller Reducer
R87*2 helical gear reducer
Double Roller Reducer
R87*2 helical gear reducer
Diameter of Single Roller MM 150
Diameter of Double Roller MM 150/180/200
Peeling Knife Size MM (L)2700*(W)140*(T)12.7
Max. Log Length MM 2700
Max. Log Diameter MM 700
Min. Last Core Diameter MM 60
Machine Size MM (L)5700*(W)1900*(H)1800
Machine Weight KG 8200
Suitable For
Eucalyptus, hybrid wood, etc.

Product details

log debarker

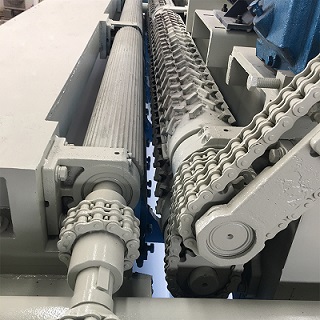

Chrome plated rollers are more wear-resistant.

log debarker



       The hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work.

log debarker

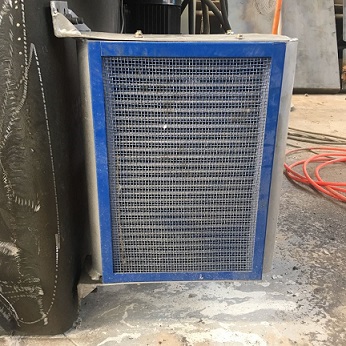

Log debarker machine air cooling system, used in India or other hot countries to prevent hydraulic oil from overheating.

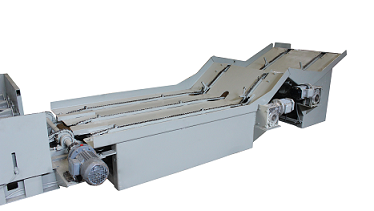

Automatic log feeding machine

log feeding machine


This machine is used for the log conveying before log debarker and veneer peeling machine.

Configure
NAME UNIT PARAMETER
Power configuration KW 11
Max. Log Length MM 2700
Max. Log Diameter MM 600
Machine Size MM (L)6500*(W)2700*(H)1500
Machine Weight KG 4000

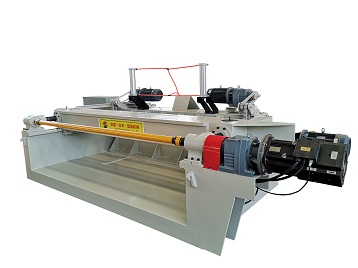

8 Feet Veneer peeling machine

8 feet veneer peeling machine



Double roller feeding rotary peeling machine, high accuracy, high output, uniform veneer thickness, and standard size.

Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 11(servo motor)
Power of Clipper Motor KW 4
Power of Rubber Roller Motor KW 2.2
Total Power KW 47.2
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV110
Rubber Roller Reducer
RV110
Diameter of rubber roller MM 200/300
Peeling Knife Size MM (L)2700*(W)160*(T)12.7
Max. Log Length MM 2700
Max. Log Diameter MM 500
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-80(Adjustable Speed)
Veneer Thickness MM 0.3-3.0
Machine Size MM (L)6500*(W)2200*(H)1900
Machine Weight KG 9500
Suitable For
Eucalyptus, hybrid wood, etc.

Product details

veneer peeling machine

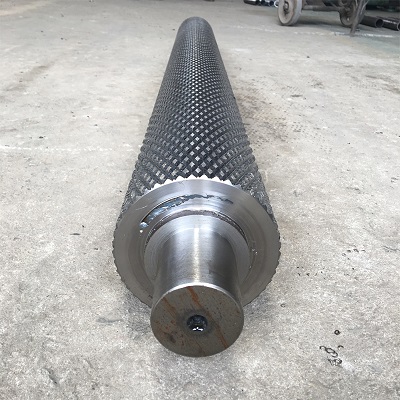

Hrome plated rollers are more wear-resistant.


veneer peeling machine

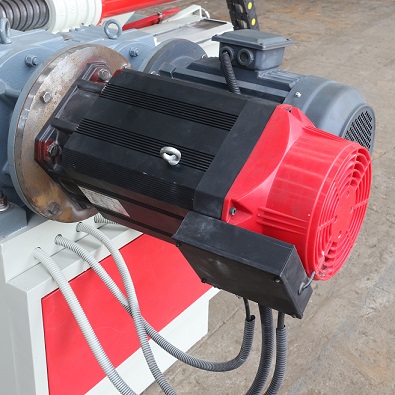

servo motor guarantees the high accuracy of rotary cutting



Rotary cutting speed is adjustable


veneer peeling machine

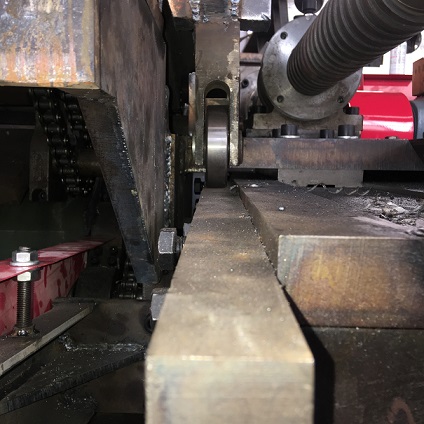

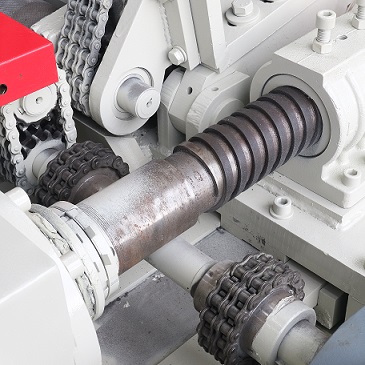

Quenching hardened screw


veneer peeling machine



Wood core hit cylinder, automatic last piece cutting

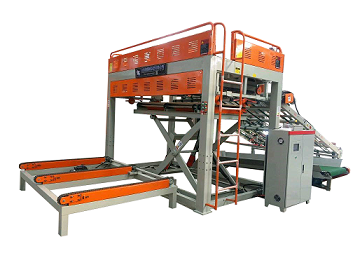

Veneer stacker

veneer stacker




High degree of automation, High-speed continuous uninterrupted running.

Configure
NAME UNIT PARAMETER
Installed power KW 20/25.5
Fan specification KW 1.5
Number of fans
6/8Frequency speed adjustment
Stacking velocity M/MIN Max.80
Stacking height MM Max.1200
Stacking veneer length MM 2000/2600
Stacking veneer width MM <1420/<1400
Stacking veneer thickness MM 0.6-2.6/0.5-3.2
Lifting method
Scissor lift table
Unqualified veneer transfer
Belt conveyor
Stack conveyor
Automatic
Rating of veneer
Two grade
Machine Size
(L)10000*(W)2800*(H)2600
