CS-KZJ05
Changsheng

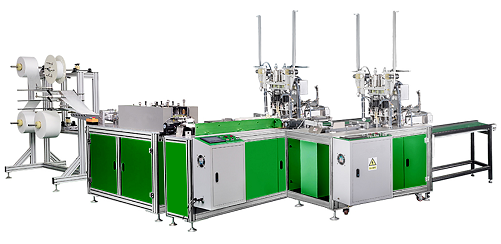

Automatic plane face mask machine production line
This machine is mainly used for the automatic formation of flat masks: the entire roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; the entire length of the nose bridge is pulled and unrolled, cut to length and imported into the hemmed fabric, bilaterally Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter: the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. When the mask is made, it passes the assembly line. Conveyed to flat belt line for collection.
The main components of the equipment
Equipment installation and configuration requirements

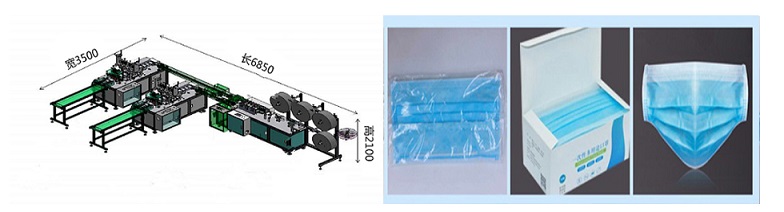

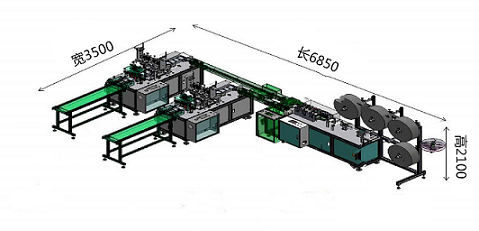

(1)Equipment size: 6800mm (L) x 3600mm (L) x 1900mm (H)
(2)Equipment weight: ≤1500kg, ground bearing capacity> 300KG / e
(3)Working power: 220KVA, 50z, rated power about 6.5-8.5kW
(4)Compressed air: 0.5 "0.7MPa, using flow rate of about 300L / min
(5)Perating environment: temperature 10-35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no powder (cleanliness no less than 100,000).
Equipment can adapt to incoming materials and product specifications
Applicable specifications
Item | No. of hanging shafts | Width (mm) |
Outside dia. of coil (mm) | Inside dia. of material (mm) | Weight |
Non-woven meltblown cloth | 3 | 170-200 | φ600 | φ76.2 | Max15kg |
Nose bridge steel wire covered plastic / pure steel wire / full plastic | 1 | 3-7 | φ400 | φ76.2 | Max25kg |
Earband | 2pkgs | 160*3 | 10N |
2.Specifications of production masks:
Standard type: 175 * 95mm (mask specifications)
1.Installation Service
We dispatch technician to customer's factory for installation and preoperation of machines. (Customers only need to pay for the airfare and hotel expense.)
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. ( Customers only need to pay for the airfare and hotel expense.)
3.Quality Guarantee
We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance.
Machine warranty is 1 year.
