Core Veneer Peeling Machine 6 Feet Rotary Hydraulic

Spindleless veneer peeling machine is used for make veneer .

Color:
Size:
Weight:
Quantity:
  • CS-6D2S2S1F
  • Changsheng
  • 8465960000

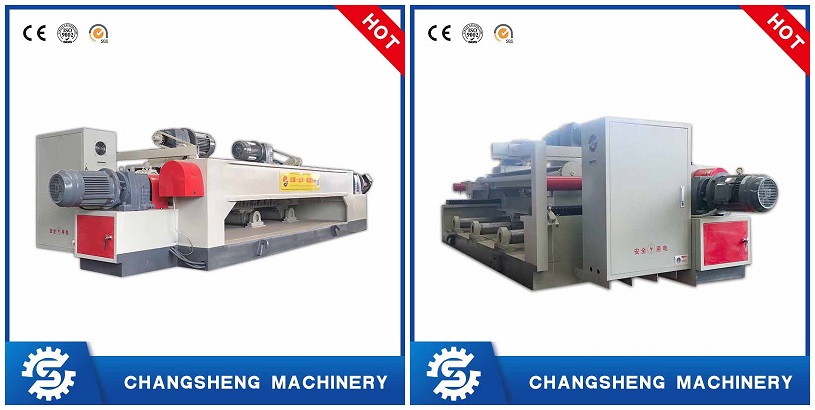

6 Feet Rotary Hydraulic Core Veneer Peeling Machine

Product Description:

This heavy duty veneer peeling macine is specially designed for the rotary cutting of hardwood shoter than 2200mm.This machine runs more stable.

Machine Configuration

6 feet veneer peeling machine

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5﹡2
Power of Double Roller Motor KW 7.5﹡2
Power of Screw Feeding Motor KW 7.5/11(Servo   motor)
Total Power KW 37.5/41
Roller Reducer
R87 Helical Gear   Reducer
Screw Feeding Reducer
R87 Helical Gear   Reducer
Peeling Knife Size MM (L)2200*(W)140*(T)12.7
Max. Log Length MM 2200
Max. Log Diameter MM 600
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-80(Adjustable Speed)
Veneer Thickness MM 0.3-3.0
Machine Size MM (L)5200*(W)1750*(H)1500
Machine Weight KG 6000
Suitable For
Poplar,   Eucalyptus etc.

Product Characteristics:

  • Suitable for wood log diameter less than 600mm

  • Mainly peeling veneer thickness 0.3-3.0mm

  • With good processing precision, easy operation

  • Customize machine according to customer’s requirements


Recommended machine

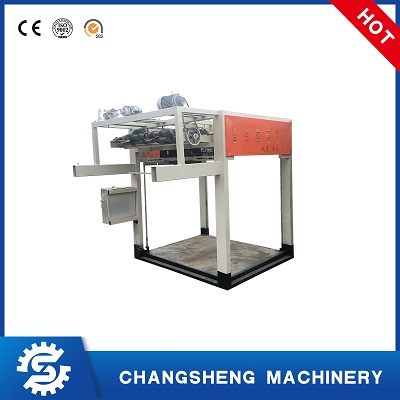

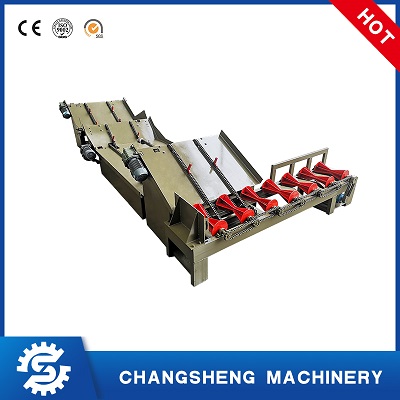

       log feeding machine                             log debarker                   veneer stacker

 8 Feet log automatic transmission equipment                          8 Feet log debarker                                        8 feet veneer stacker

Packing & Delivery

Packaging Details
Machine Size (L)5200*(W)1750*(H)1500
Machine Weight 6000 KG

Packaging Details:  If container is too tigher,we will use pe film for packing or pack it according to customers special request.

微信图片_20190828142329

Our Company

changsheng machinery

     Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.

     In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.

     High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.

     Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.

     Changsheng Wood Machinery comes from China, serves all the world!


1. Use cylinder to hit wood core.

2. Alloy lead screw and zinc based alloy nut.

3. Easy adjust knife seam function and convenient disassembly.

4. The peeled veneer is smooth on both sides.

5. Auto trimming function of residual tail plate, thickness error ±0.05mm.

6. Advanced control system and core technology.

7. Automatic speed down when peeling end.

8. Normally the running electric current is only the 50% of the rated electric current.
