Spindle less rotary 6 feet plywood veneer peeling machine

Spindleless veneer peeling machine is used for make veneer .

Color:
Size:
Weight:
Quantity:
  • CS-6D2S1G1
  • Changsheng
  • 8465960000

Spindle less rotary 6 feet plywood veneer peeling machine

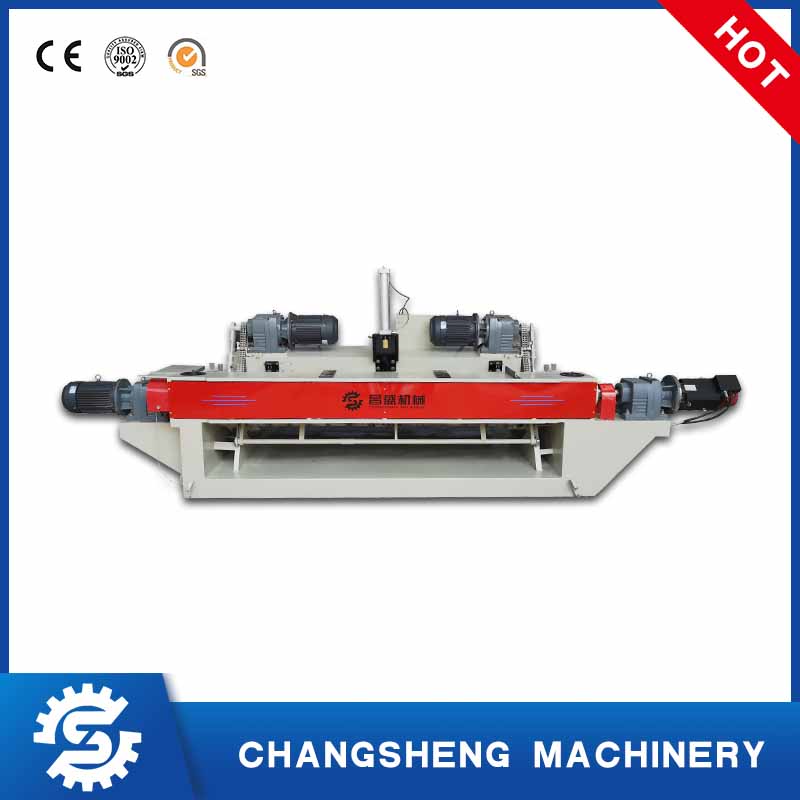

6 feet veneer peeling machine

      6 Feet veneer peeling machine is widely used in plywood production. It can produce both core and face

veneer, according to the customer’s production requirements. It can peel the logs up to 2.2 meter log, the range of veneer thickness can be 0.3-4mm.The peeling speed is from 20m/min to 90m/min, based on customer’s choice. The heavy duty and high speed type is our most popular product and is widely praised by domestic and foreign customers.

Technical Parameters

NAME UNIT PARAMETER
Power of Single Roller Motor KW 5.5*2
Power of Double Roller Motor KW 7.5
Power of Screw Feeding Motor KW 7.5(servo motor)
Power of Clipper Motor KW 4
Power of Rubber Roller Motor KW 2.2
Total Power KW 32.2
Roller Reducer
R87 Helical Gear   Reducer
Screw Feeding Reducer
R97 Helical Gear   Reducer
Clipper Reducer
RV100
Rubber Roller Reducer
RV90
Diameter of rubber roller MM 150
Peeling Knife Size MM (L)2200*(W)140*(T)12.7
Max. Log Length MM 2200
Max. Log Diameter MM 600
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-60(Adjustable Speed)
Veneer Thickness MM 0.3-3.0
Machine Size MM (L)5200*(W)2000*(H)1700
Machine Weight KG 7000
Suitable for
Poplar,   cottonwood, etc

Product Characteristics:

1.Suitable for wood log diameter less than 600mm

2.Mainly peeling veneer thickness 0.3-4.0mm

3.With good processing precision, easy operation

4.Customize machine according to customer’s requirements


Related Product Recommendation

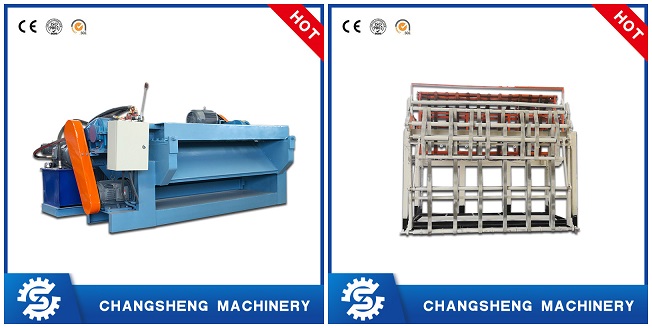

plywood making machine

                               LOG DEBARKER MACHINE                                                VENEER STACKER MACHINE


Company Information

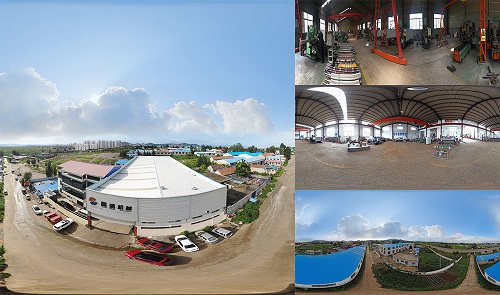

changsheng machinery


       公司介绍


微信图片_20190828142329


Configure
NAMEUNITPARAMETER
Power of   Single Roller MotorKW5.5*2
Power of   Double Roller MotorKW7.5
Power of   Screw Feeding MotorKW7.5(servo motor)
Power of   Clipper MotorKW2.2
Power of   Rubber Roller MotorKW2.2
Total PowerKW30.4
Roller   Reducer
R87 Helical Gear   Reducer
Screw Feeding   Reducer
R87 Helical Gear   Reducer
Clipper   Reducer
RV100
Rubber Roller   Reducer
RV90
Peeling Knife   SizeMM2200*140*12.7
Max. Log   LengthMM2200
Max. Log   DiameterMM700
Min. Last   Core DiameterMM30
Veneer Output   SpeedM/MIN40(Adjustable Speed)
Veneer   ThicknessMM0.3-3.0
Machine SizeMM4750*2000*1500
Machine   WeightKG6000
Machinable   tree species
Poplar, Eucalyptus   etc.


1. Use cylinder to hit wood core.

2. Alloy lead screw and zinc based alloy nut.

3. Easy adjust knife seam function and convenient disassembly.

4. The peeled veneer is smooth on both sides.

5. Auto trimming function of residual tail plate, thickness error ±0.05mm.

6. Advanced control system and core technology.

7. Automatic speed down when peeling end.

8. Normally the running electric current is only the 50% of the rated electric current.
