spindleless Rotary veneer peeling machine 6 feet hydraulic

Spindleless veneer peeling machine is used for make veneer .

Color:
Size:
Weight:
Quantity:
  • CS-6D2S2G11SD
  • Changsheng
  • 8465960000

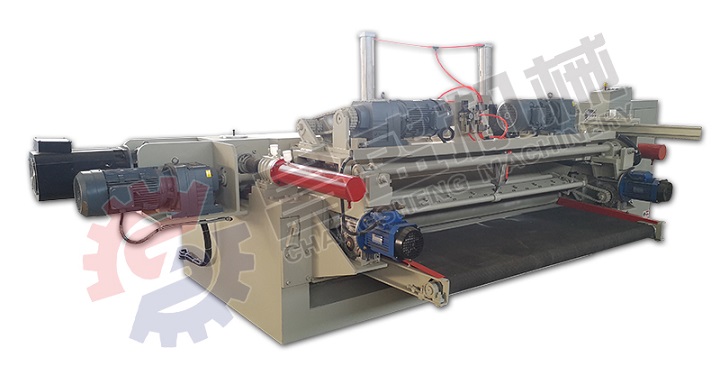

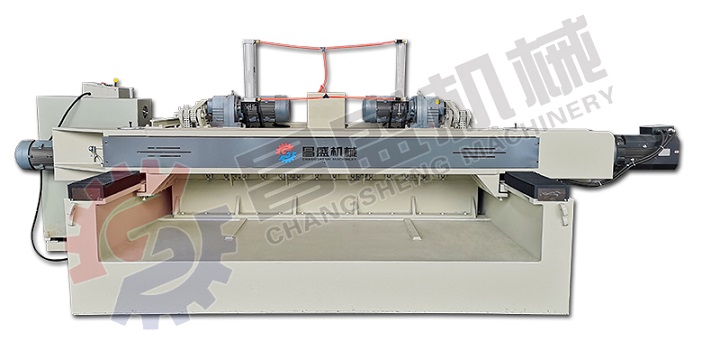

Rotary hydraulic  spindle less 6 feet veneer peeling machine


Product Description:

        6 Feet veneer peeling machine is widely used in plywood production. It can produce both core and face veneer, according to the customer’s production requirements. It can peel the logs up to 2.2 meter log, the range of veneer thickness can be 0.3-4mm.The peeling speed is from 20m/min to 90m/min, based on customer’s choice. The heavy duty and high speed type is our most popular product and is widely praised by domestic and foreign customers.


Product Characteristics:

5

2

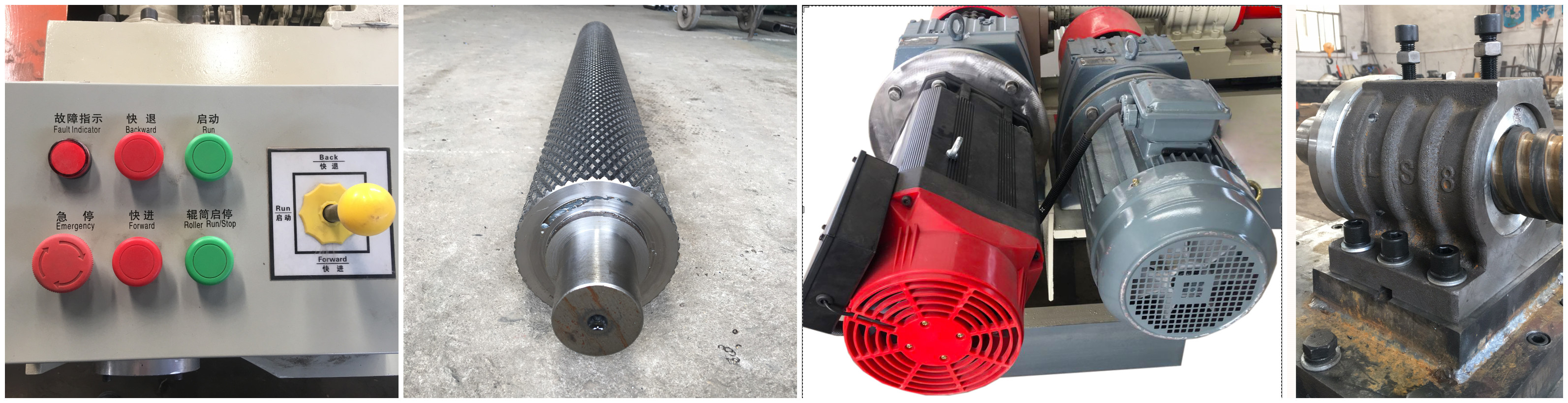

微信图片_201904090625-修改_副本

  • Suitable for wood log diameter less than 600mm

  • Mainly peeling veneer thickness 0.3-4.0mm

  • With good processing precision, easy operation

    Customize machine according to customer’s requirements

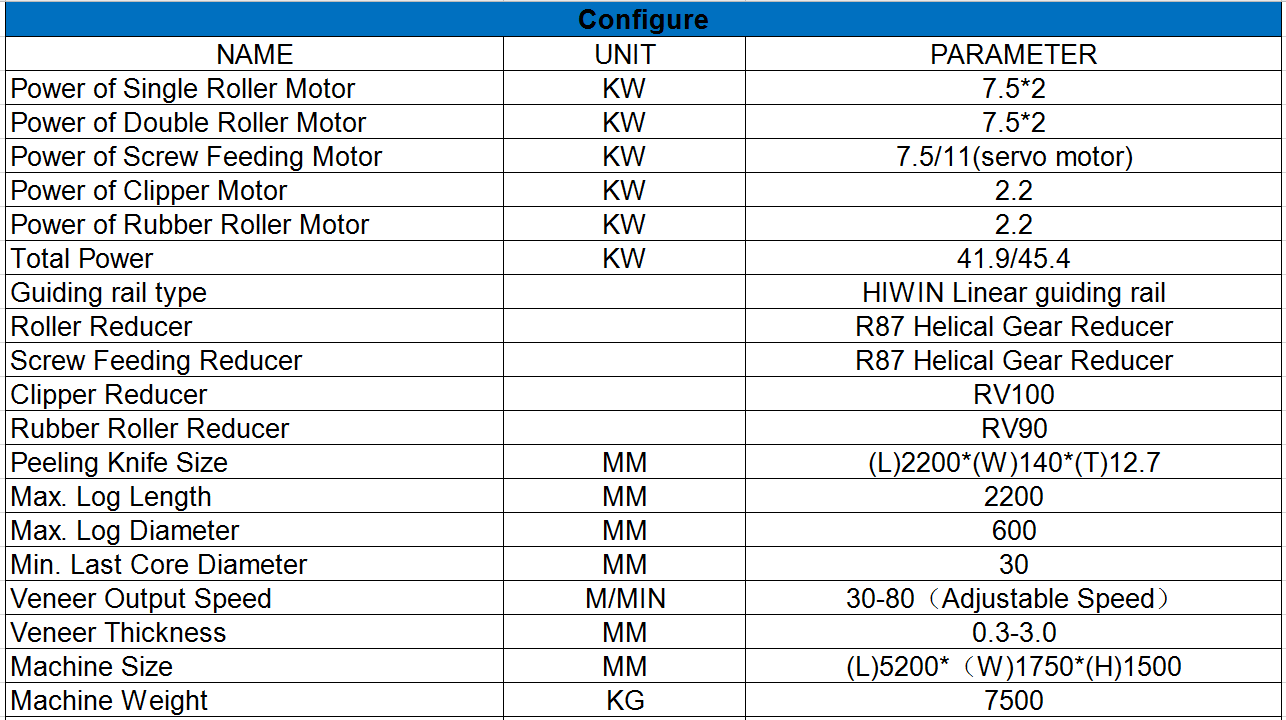

    Technical Details


    NAME UNIT PARAMETER
    Power of Single Roller Motor KW 7.5*2
    Power of Double Roller Motor KW 7.5*2
    Power of Screw Feeding Motor KW 7.5/11(servo motor)
    Power of Clipper Motor KW 2.2
    Power of Rubber Roller Motor KW 2.2
    Total Power KW 41.9/45.4
    Guiding rail type
    HIWIN Linear   guiding rail
    Roller Reducer
    R87 Helical Gear   Reducer
    Screw Feeding Reducer
    R87 Helical Gear   Reducer
    Clipper Reducer
    RV100
    Rubber Roller Reducer
    RV90
    Peeling Knife Size MM (L)2200*(W)140*(T)12.7
    Max. Log Length MM 2200
    Max. Log Diameter MM 600
    Min. Last Core Diameter MM 30
    Veneer Output Speed M/MIN 30-80(Adjustable Speed)
    Veneer Thickness MM 0.3-3.0
    Machine Size MM (L)5200*(W)1750*(H)1500
    Machine Weight KG 7500
    Suitable For
    Poplar, Eucalyptus etc.

Product Advantages:

1. Use cylinder to hit wood core.

2. Alloy lead screw and zinc based alloy nut.

3. Easy adjust knife seam function and convenient disassembly.

4. The peeled veneer is smooth on both sides.

5. Auto trimming function of residual tail plate, thickness error ±0.05mm.

6. Advanced control system and core technology.

7. Automatic speed down when peeling end.

8. Normally the running electric current is only the 50% of the rated electric current.

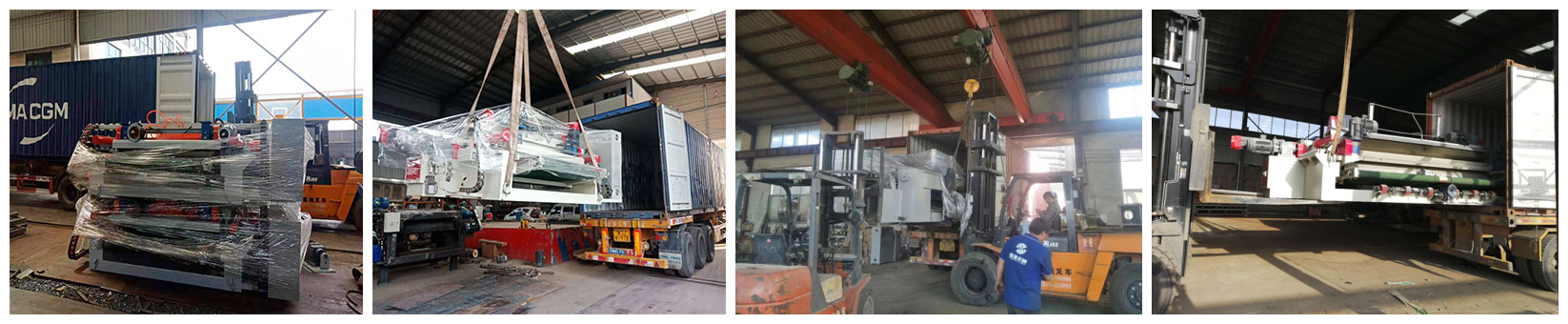

Packing & Delivery:

发货

Packaging
Size (L)5200*(W)1750*(H)1500
Machine Weight 7500 KG
Packaging Details If container is too tigher,we will use pe film for packing or pack it according to customers special request.

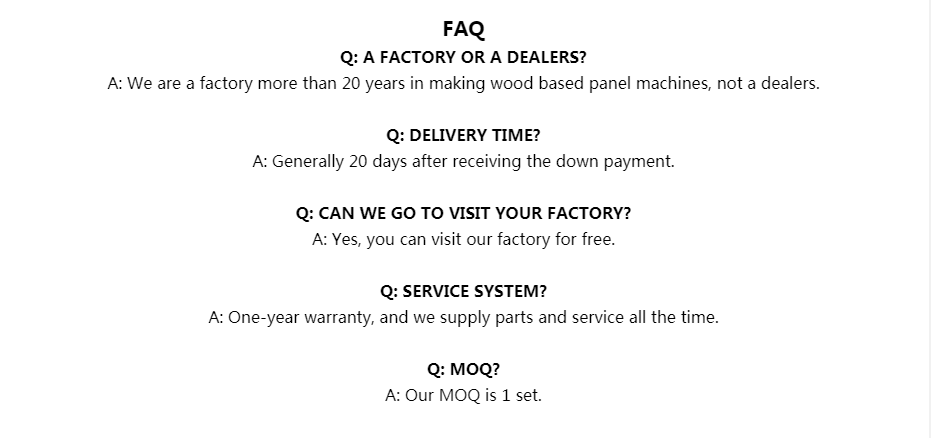

微信图片_20190828142329

Why Choose Us

微信图片_20190827161259

7 peoples



We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.



20 years



We have been engaged in woodworking machinery for 20 years and have extensive industry experience.



365 days



We are waiting for your call for 365 days, providing you with services such as purchase and support.



3000 customers



More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.



10000 experiments



Our factory has conducted more than 10,000 innovative experiments since its inception.



Only to produce the most suitable equipment for the customer.


未标题-1

    Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.

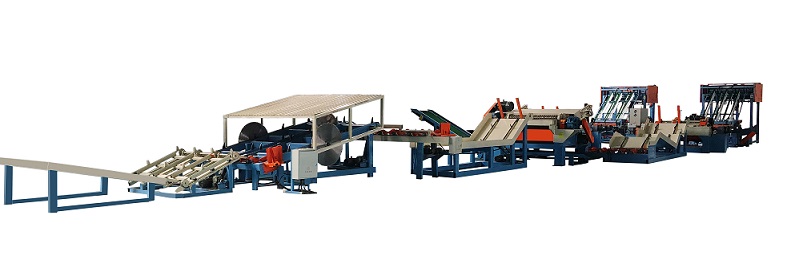

     In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.

     High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.

     Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.

     Changsheng Wood Machinery comes from China, serves all the world!
