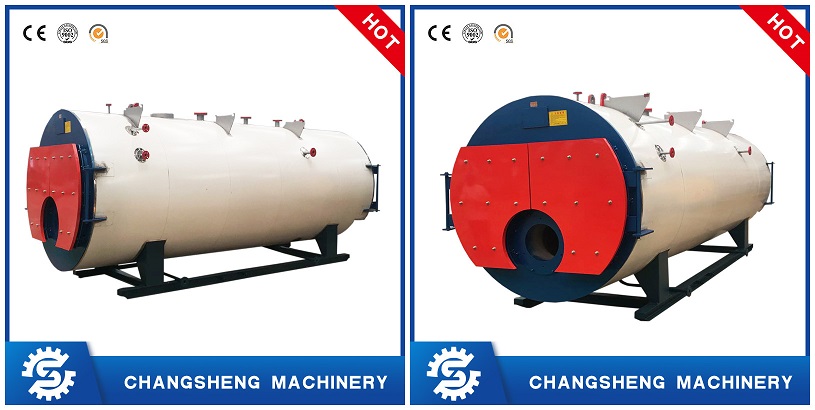

Gas Fired Steam Boiler
1. Full wet back reverse combustion chamber structure,100% butt welding, Siemens&Delixi Electronic parts, high standard, high-level quality.
2. Multiple security settings, highly lower the rate of accident, guarantee the stable running of the boiler.
3. Full-corrugated furnace, the fuel can be fully burned, higher thermal efficiency. Low exhaust gas temperature control, effectively reduce the loss of heat.
4. Large boiler diameter，high capacity， stable steam output. Long distance between gas-water interface, low steam humidity.
Technical Parameter
| MODEL | WNS0.5 | WNS1 | WNS1.5 | WNS2 | WNS3 | WNS4 | WNS5 | WNS6 | WNS8 | ||
| Rated Output | T/H | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | |
| Rated Steam Pressure | MPa | 0.7/1.0/1.25 | 1.0/1.25/1.6 | 1.25/1.6 | |||||||
| Rated Steam Temperature | ℃ | 170/184/194 | 184/194/204 | 194/204 | |||||||
| Feed Water Temperature | ℃ | 20 | |||||||||
| Boiler Heating Area | SQ.M. | 13 | 30 | 35 | 53 | 77 | 107 | 127 | 198 | 212 | |
| Economizer Heating Area | SQ.M. | 10 | 12 | 12 | 12 | 15 | 22 | 30 | 35 | 45 | |
| Suitable Fuel Kind | Heavy Oil/Light Oil/Natural Gas/lpg/City Gas | ||||||||||
| Fuel Consumption | Light Oil | KG/H | 34.35 | 45-100 | 101.73 | 137.09 | 205.75 | 272.3 | 134-402 | 132-402 | 523.4 |
| Natural Gas | Nm³/H | 41.34 | 18-100 | 123.47 | 165.97 | 249.6 | 329.5 | 80-500 | 80-500 | 631.5 | |
| Equipment Power | Burn Light Oil | KW | 0.5 | 1.5 | 2.2 | 2.2 | 7.5 | 9 | 17.2 | 15 | 26 |
| Burn Gas | KW | 0.5 | 1.5 | 1.5 | 3 | 7.5 | 7.5 | 15 | 15 | 22 | |
| Max. Tranport Weight | TON | 3.5 | 6.8 | 7 | 8.2 | 9.9 | 12.7 | 14.2 | 17.5 | 21.3 | |
| Boiler Water Capacity | CBM | 1.8 | 3.6 | 4.2 | 4.9 | 8.75 | 9.3 | 9.3 | 12.1 | 15.3 | |
Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
Changsheng Wood Machinery comes from China, serves all the world!
