CS-DD02
Changsheng

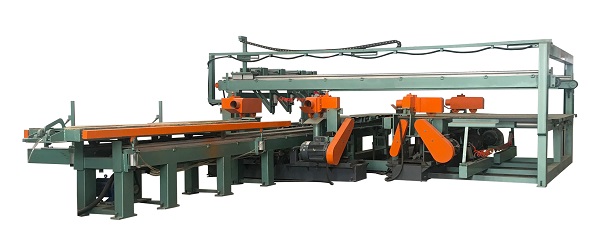

High Precision Auto Plywood Double Dimension Trimming Saw
Cut plywood size | 3*6 feet 4*8 feet can be adjustable |
Saw blade | 305/2.2/25.4/112 |
Dimensions | Longitudinal saw:8600mm*1200mm,horizontal saw:4600*3400mm |
Motor | Longitudinal saw: 9.5 KW horizontal saw: 9.5 KW |
Moving motor | 2.2KW/4 /380V/4.4A/2 |
Lifting motor | 3KW/4 /380V/6A/1 |
Lifting table | 1 |
Linear Guide | Longitudinal :8200mm/2 . horizontal :3800mm/2 |
Linear bearing | 4 pic |
Frequency converter | 4KW/380V/9.0A/2/ Out put 0.5~600HZ |
PLC | XC2-48R-E/1 /28 |
Touch screen | LEVI777A/1/ 7 inch 800*480 |
Isolation transformer | BK-150/150VA/1/ In put 380V Out put 220V |
Weight | 5.8 T |
Work efficiency | 18 cm/hour/300 sheets |

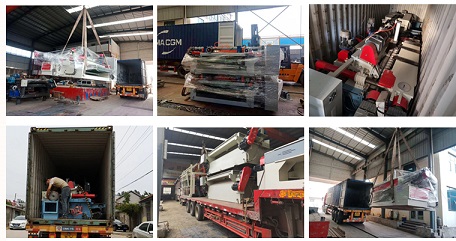

Transport
Service
