Plywood Veneer Peeling Machine Hydraulic 4 Feet spindle Less

Spindleless veneer peeling machine is used for make veneer .

Color:
Size:
Max. Log Length:
Max. Log Diameter:
Quantity:
  • CS-4D1S1G1
  • Changsheng
  • 8465960000

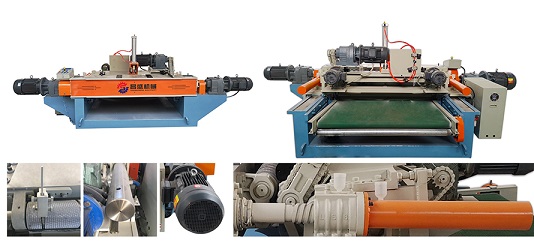

Hydraulic Spindle less 4 Feet Plywood Veneer Peeling Machine

Veneer peeling machine


      Spindleless veneer peeling machine is used for make veneer .

      And it is suitable for the eucalyptus, pine, cotton wood and another log.

      The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.

Veneer peeling machine is a very technical equipment in plywood line equipment.

veneer peeling machine

veneer peeling machine

This  machine is used for the low speed rotary cutting of softwood with diameter lower than 450mm,easy to operate.

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5
Power of Double Roller Motor KW 7.5
Power of Screw Feeding Motor KW 7.5
Power of Clipper Motor KW 1.5
Power of Rubber Roller Motor KW 1.5
Total Power KW 25.5
Roller Reducer
R87 Helical Gear   Reducer
Screw Feeding Reducer
R87 Helical Gear   Reducer
Clipper Reducer
80
Rubber Roller Reducer
80
Segments of single roller
2
Segments of double roller
1
Diameter of single roller MM 125
Diameter of double roller MM 125
Diameter of rubber roller MM 150
Peeling Knife Size MM (L)1500*(W)140*(T)12.7
Max. Log Length MM 1500
Max. Log Diameter MM 450
Min. Last Core Diameter MM 32
Veneer Output Speed M/MIN 43
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4420*(W)1950*(H)1700
Machine Weight KG 4200
Suitable for
Poplar, cotton   wood, etc
All of our plywood machines can be customized according to your prodcution requirement.

veneer peeling machine

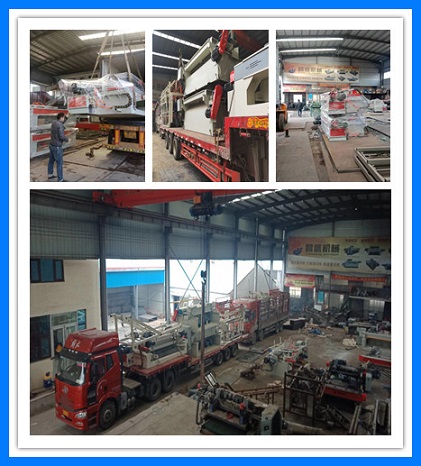

Machine transportation


changsheng machinery

Packaging
Size (L)4420*(W)1950*(H)1700
Machine weight 4200 KG
Packaging Details If container is too tigher,we will use pe film for packing or pack it according to customers special request.

veneer peeling machine


Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory

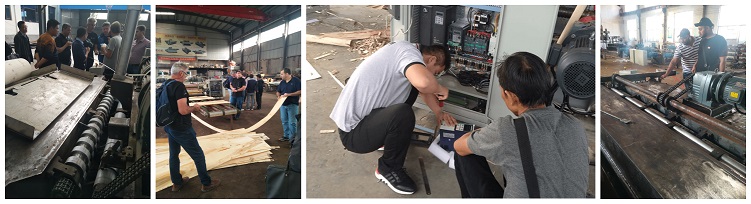

Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging


changsheng machinery

      Headquartered in Linyi, Shandong, China,Shandong Changsheng Wood Machinery Co., Ltd. specializes in the research, development, manufacturing, installation and maintenance of machinery and parts for veneer peeling and plywood manufacturing. It has a history of more than 20 years.

veneer peeling machine

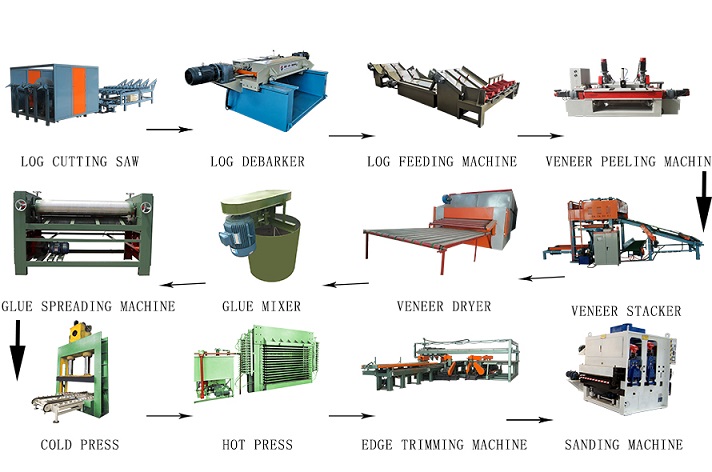

      At present, the main plywood machines include rotary cutting machines, log rounding machines, veneer stackers, knife sharpeners and dryers. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
