CS-SBJ-1
Changsheng
8465910000

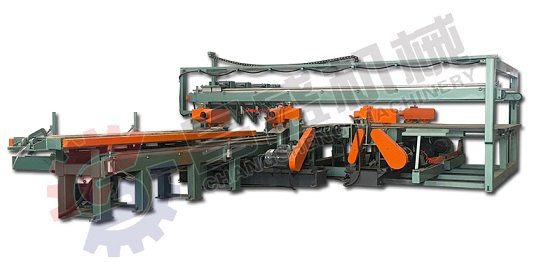

Precision Plywood Edge Cutting Trimming Saw Machine
This Machine is used for the edge cutting of plywood. High degree of automation， high productivity.
| NAME | UNIT | PARAMETER |
| Model | CS-JB4850 | |
| Working Size | MM | 1220* 2440 |
| Horizontal Saw Size | MM | 7000*2000*1100 |
| Vertical Saw Size | MM | 5700*3200*1200 |
| Working Thinkness | MM | 5 - 50 |
| Diameter of Saw Blade | MM | 305 |
| Linear Speed of Saw Blade | M/S | 90-120 |
| Transmission Method | Chain&Guiding Rail | |
| Air Cylinder Number | PC | 4 |
| Power | KW | 7.5*4+2.2*4 |
| Mounting Dimension | MM | 8500*5500*1200 |
| Machine Size | KG | 7500 |
Main Features of Hot sale Automatic plywood edge trimming machine
1. The main structure is strong with enough rigidity and high stability.
2. This saw has high precision anti-wearing guide rail, infrared guidance.
4. High automatic: all working process is controlled by PLC, cutting and automatically stacking.
5. Automatic device to clear and collect the edge strips cut off from the panel.
6. Servo motor supply the smooth running, high speed,high precise, precise position.
| Presale service |
| 1.Make reliable pratical mechine list and production proposal free of charge, according to customers' actual situation. |
| 2.Design the machine free of charge, according to customer's production line and production cost . |
| 3. Make the workshop and production line layout free of charge, according to customers' factory land |
| Medium-sales service |
| 1.Video for the manufacturing process as customers requirement . |
| 2.Machine modifying according customers' suggestion . |
| 3.Order the shipment and prepare the documents for customers' clearance, according to customers' custom requirement . |
| After-sale services |
| 1.One year warranty for main machine, cost price for vunerable parts . |
| 2.Experienced engineer is avaiable for the machine installation and worker training . |
| 3.Remote control of troubleshooting and system upgrading . |
