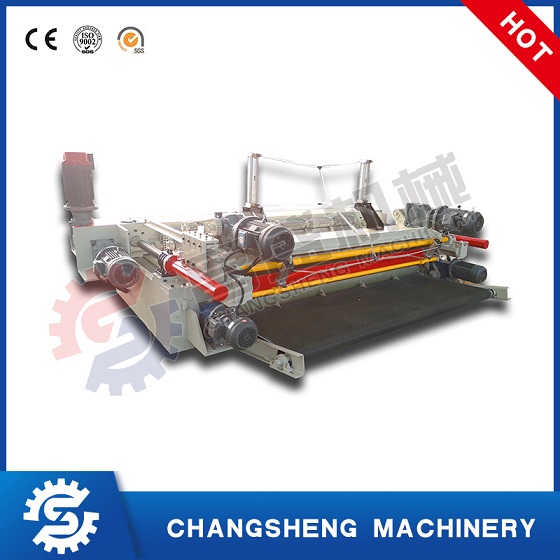

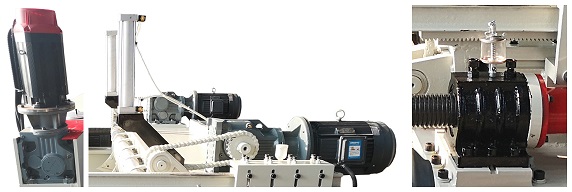

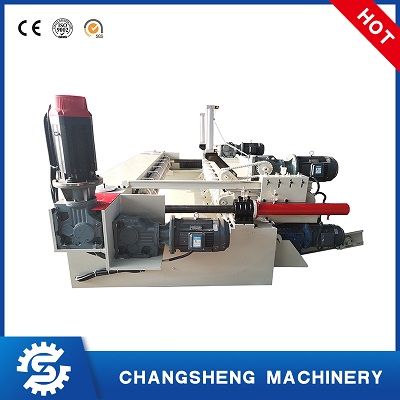

Hydraulic spindle less 8 Feet Face Veneer Peeling Machine
Product Description:
8 Feet veneer peeling machine is widely used in plywood production. It can produce both core and face veneer, according to the customer’s production requirements. It can peel the logs up to 2.7 meter log, the range of veneer thickness can be 0.3-4mm.The peeling speed is from 20m/min to 80m/min, based on customer’s choice. The heavy duty and high speed type is our most popular product and is widely praised by domestic and foreign customers.
| Configure | ||
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 7.5(servo motor) |
| Power of Clipper Motor | KW | 5.5 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 45.2 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV90 | |
| Peeling Knife Size | MM | 2700*140*12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 700 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 20-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-4.0 |
| Machine Size | MM | 6750*2000*1500 |
| Machine Weight | KG | 9500 |
| Machinable tree species | Eucalyptus, hybrid wood, etc. | |
Product Characteristics:
Suitable for wood log diameter less than 700mm
Mainly peeling veneer thickness 0.3-4.0mm
With good processing precision, easy operation
Customize machine according to customer’s requirements
service
Company Profile
Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
Changsheng Wood Machinery comes from China, serves all the world!
