Core Veneer Peeling Machine 8 Feet Rotary Hydraulic

8 feet Spindleless veneer peeling machine is used for make veneer .

Total prower:
Maximum log length:
Maximum log diameter:
  • CS-8D1S1G1F
  • Changsheng
  • 8465960000

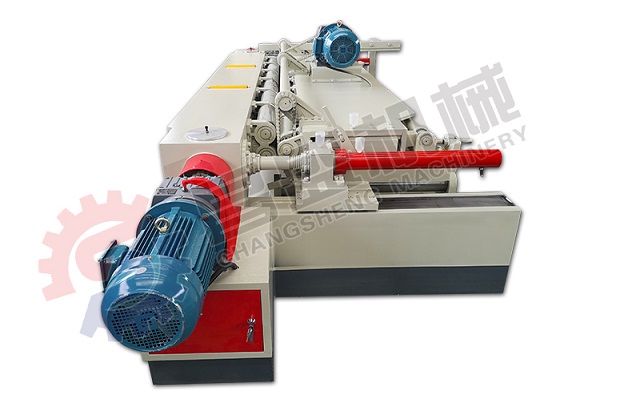

8 feet rotary hydraulic core veneer peeling machine

Product display

veneer making machine

      Spindleless veneer making machine is used for make plywood veneer .

      And it is suitable for the eucalyptus, pine, cotton wood and another log.

      The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.

      Plywood veneer making machine is a very technical equipment in plywood line equipment.

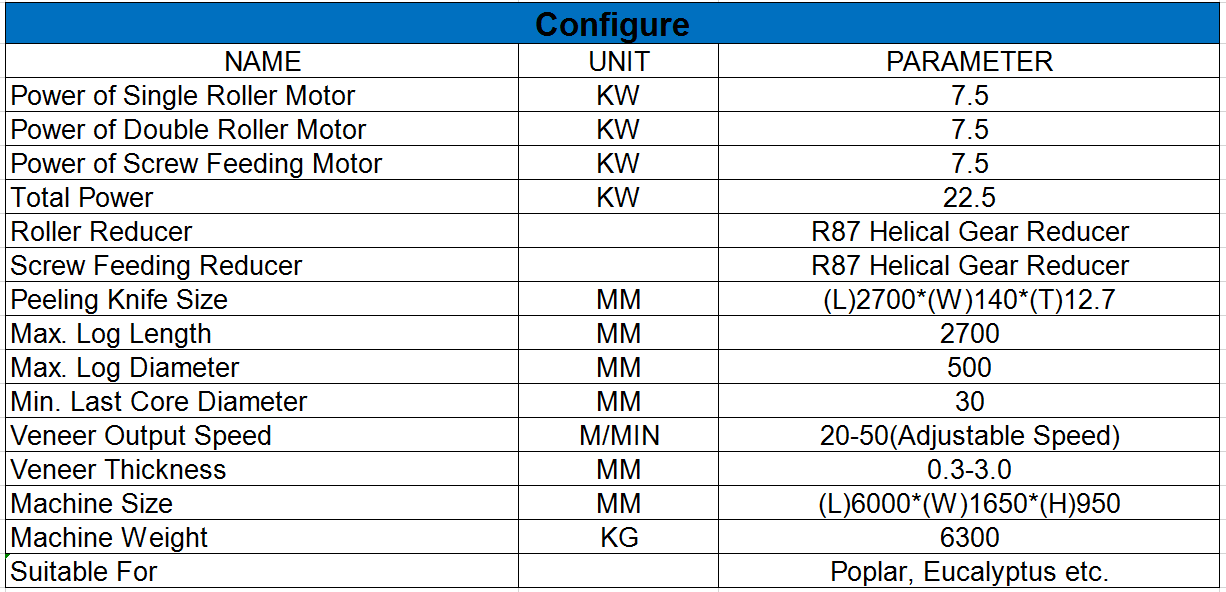

      The maximum log length that this plywood veneer making machine can process 2700mm , and the maximum log diameter is 500 mm. The production speed is 20-50 m/min, and the production speed is adjustable.

plywood veneer making machine


plywood veneer making machine

1,Alloy lead screw and zinc based alloy nut .

2,Easy adjust knife seam function and convenient disassembly .

3,The peeled veneer is smooth on both sides .

4,Auto trimming function of residual tail plate,thickness error plus and minus 0.05mm .

5,Advanced control system and core technology .

6,Automatic speed down when peeling end .

7,Normally the running current only the 50% of the rated current .

plywood veneer making machineplywood veneer making machine

plywood veneer making machine

      In addition to the 4 feet plywood veneer making machine, our factory also has 6 feet plywood veneer making machine and 8 feet plywood veneer making machine. We are a professional manufacturer of plywood machines, this is just one of our machines. In addition, we can also customize the machine according to your production requirements.

plywood veneer making machine

manufacturer of plywood machine

manufacturer of plywood machine

manufacturer of plywood machine


Pre-sale services:

We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.


Service during the sales:

Send technicians to the customer's factory to install and debug the machine on site, train operators for free and you can also come to our factory to learn for free.


After-sale services:

We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.


manufacturer of plywood machine



7 peoples



We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.



20 years



We have been engaged in woodworking machinery for 20 years and have extensive industry experience.



365 days



We are waiting for your call for 365 days, providing you with services such as purchase and support.



3000 customers



More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.



10000 experiments



Our factory has conducted more than 10,000 innovative experiments since its inception.



Only to produce the most suitable equipment for the customer.
