Spindle less hydraulic 8 feet plywood veneer peeling machine
| Plywood machine : 8 feet veneer peeling machine production description | ||
Double roller feeding rotary peeling machine, high accuracy, high output, uniform veneer thickness, and standard size. | ||
Configure | ||
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 11(servo motor) |
| Power of Clipper Motor | KW | 4 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 47.2 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV110 | |
| Rubber Roller Reducer | RV110 | |
| Diameter of rubber roller | MM | 200/300 |
| Peeling Knife Size | MM | (L)2700*(W)160*(T)12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 500 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)6500*(W)2200*(H)1900 |
| Machine Weight | KG | 9500 |
| Suitable For | Eucalyptus, hybrid wood, etc. | |
| Can be customized according to customer requirements. | ||
1.CNC rotary peeling machine.
2.wood veneer machine driven by servo motor and precision screw feed
3.Adjustable knife settings allow you to easily process logs larger in diameter and still produce smooth and flat finished veneers.

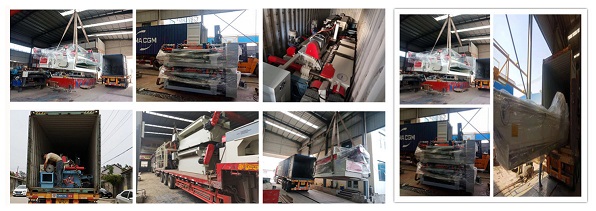

| Packaging | |
| Machine Size | (L)6500*(W)2200*(H)1900 |
| Machine Weight | 9500 KG |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
7 peoples
We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.
20 years
We have been engaged in woodworking machinery for 20 years and have extensive industry experience.
365 days
We are waiting for your call for 365 days, providing you with services such as purchase and support.
3000 customers
More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.
10000 experiments
Our factory has conducted more than 10,000 innovative experiments since its inception.
Only to produce the most suitable equipment for the customer.
