CS-8D2S2G11
Changsheng
8465960000

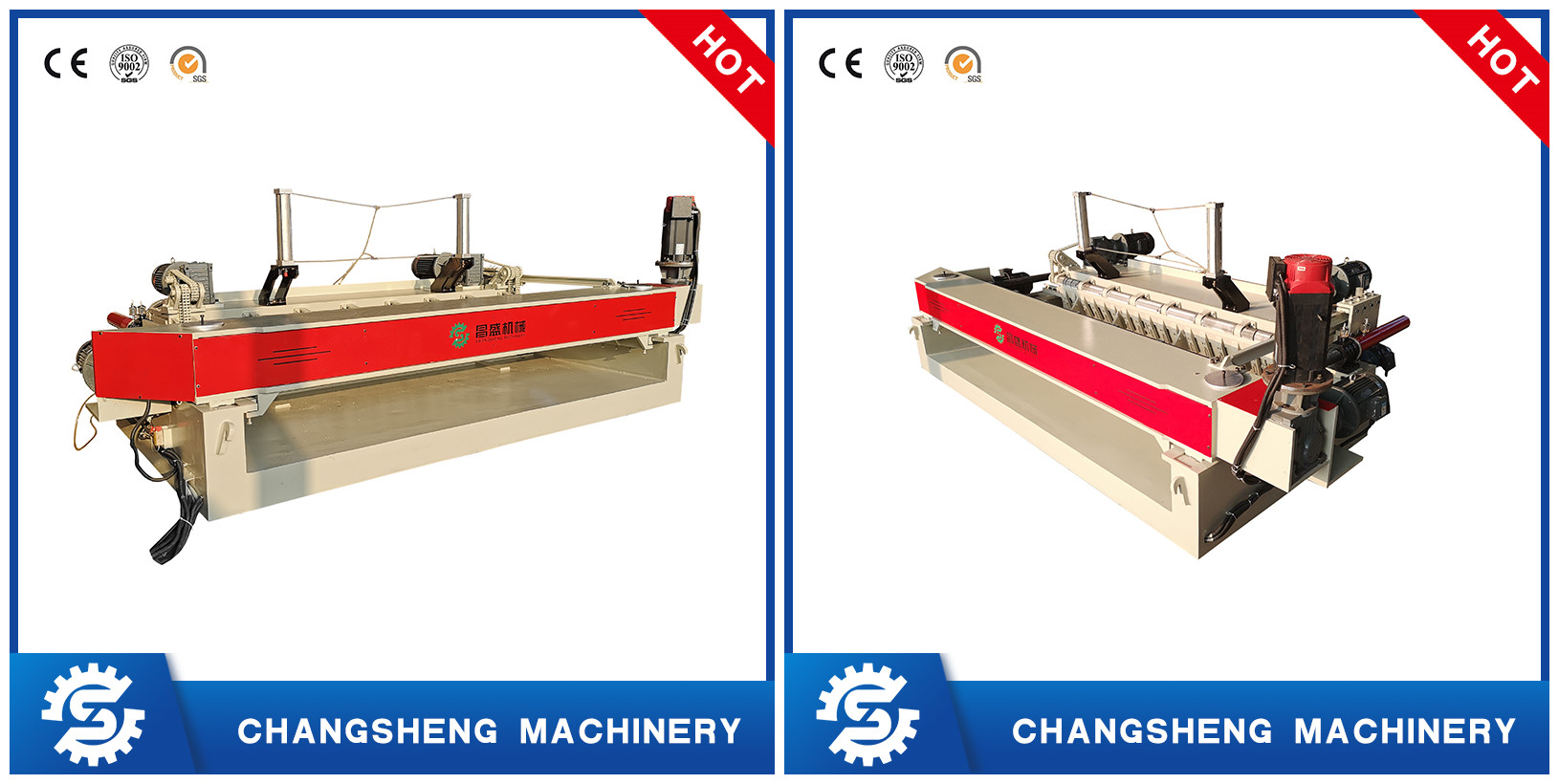

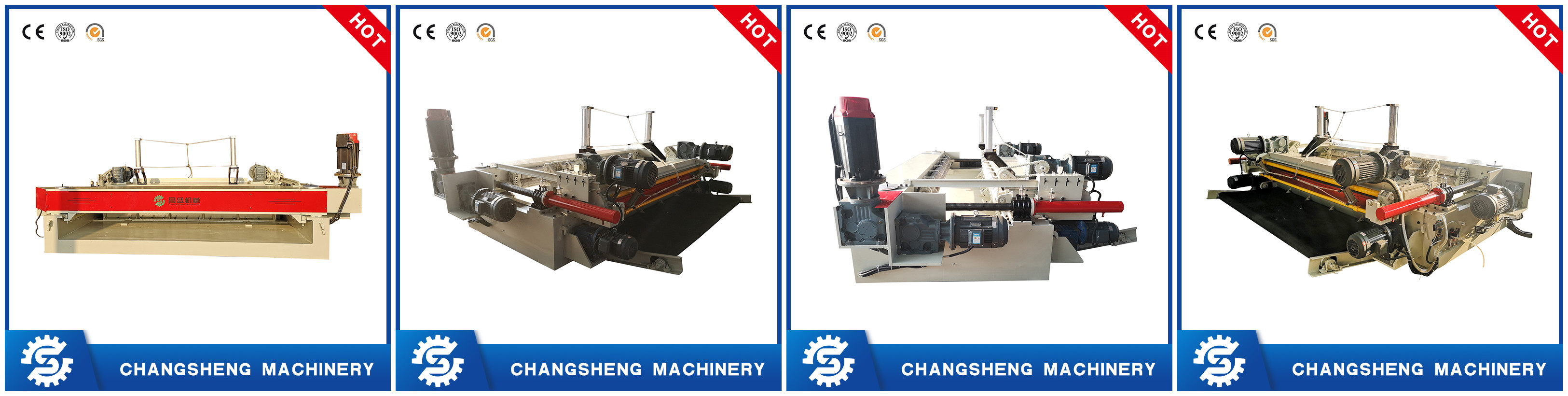

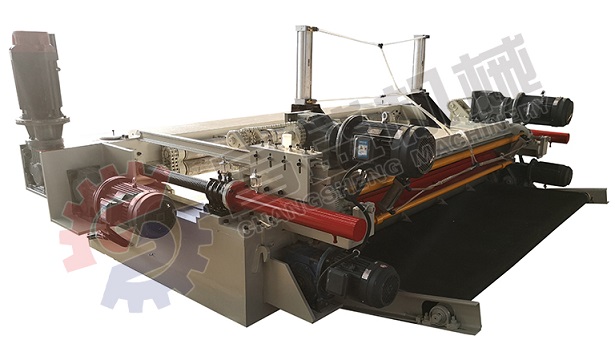

Face Veneer Peeling Machine Rotary 8 Feet Spindle-less
1,Use cylinder to hit wood core.
2.Alloy lead screw and zinc based alloy nut
3.Easy adjust knife seam function and convenient disassembly
4.The peeled veneer is smooth on both sides
5.Auto trimming function of residual tail plate,thickness error plus and minus 0.05mm
6.Advanced control system and core technology.
7.Automatic speed down when peeling end.
8.Normally the running current only the 50% of the rated current.
9.The double-roller moving seam size is more stable than the single-roller movement, and it is more energy-efficient and can save energy 20%
10.Rotary cutting knife and shear knife are combination in one machine and work at the same time.A two-in-one structure, peeling and cutting together, reduces both the space and operators.Your costs is greatly lowered.
NAME | UNIT | PARAMETER |
Power of Single Roller Motor | KW | 7.5*2 |
Power of Double Roller Motor | KW | 7.5*2 |
Power of Screw Feeding Motor | KW | 7.5(servo motor) |
Power of Clipper Motor | KW | 5.5 |
Power of Rubber Roller Motor | KW | 2.2 |
Total Power | KW | 45.2 |
Roller Reducer | R87 Helical Gear Reducer | |
Screw Feeding Reducer | R87 Helical Gear Reducer | |
Clipper Reducer | RV100 | |
Rubber Roller Reducer | RV90 | |
Peeling Knife Size | MM | 2700*140*12.7 |
Max. Log Length | MM | 2700 |
Max. Log Diameter | MM | 700 |
Min. Last Core Diameter | MM | 30 |
Veneer Output Speed | M/MIN | 20-80(Adjustable Speed) |
Veneer Thickness | MM | 0.3-4.0 |
Machine Size | MM | 6750*2000*1500 |
Machine Weight | KG | 9500 |
Machinable tree species | Eucalyptus, hybrid wood, etc. |
pre-sale service
We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.
Service during the sales:
Send technicians to the customer's factory to install and debug the machine on site, train operators for free and you can also come to our factory to learn for free.
After-sale services:
We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.
Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
Changsheng Wood Machinery comes from China, serves all the world!
