CS-8D21S21G11
Changsheng
8465960000

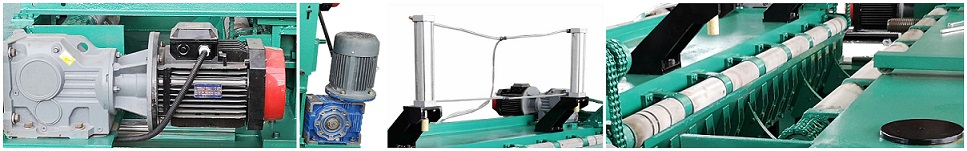

Spindle less rotary 8 feet face veneer peeling machine
| Production Description | ||
This machine uses a servo motor for single and double roller and screw feed motors. The cutting speed can reach 100m/min. Suitable for factories with a large output. | ||
Configure | ||
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2(servo motor) |
| Power of Double Roller Motor | KW | 7.5*2(servo motor) |
| Power of Screw Feeding Motor | KW | 11(servo motor) |
| Power of Clipper Motor | KW | 5.5(servo motor) |
| Power of Rubber Roller Motor | KW | 4 |
| Total Power | KW | 50.5 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R97 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV100 | |
| Peeling Knife Size | MM | 2700*140*12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 300-650 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 40-100（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-4.0 |
| Machine Size | MM | 6650*2000*1600 |
| Machine Weight | KG | 13000 |
| Machinable tree species | Eucalyptus, hybrid wood, etc. | |
1,Use cylinder to hit wood core.
2.Alloy lead screw and zinc based alloy nut
3.Easy adjust knife seam function and convenient disassembly
4.The peeled veneer is smooth on both sides
5.Auto trimming function of residual tail plate,thickness error plus and minus 0.05mm
6.Advanced control system and core technology.
pre-sale service
We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.
Service during the sales:
Send technicians to the customer's factory to install and debug the machine on site, train operators for free and you can also come to our factory to learn for free.
After-sale services:
We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.
Q&A
1. Q: Are you a factory or a trading company?
A: We are a factory that manufactures plywood machines for more than 20 years, not a distributor.

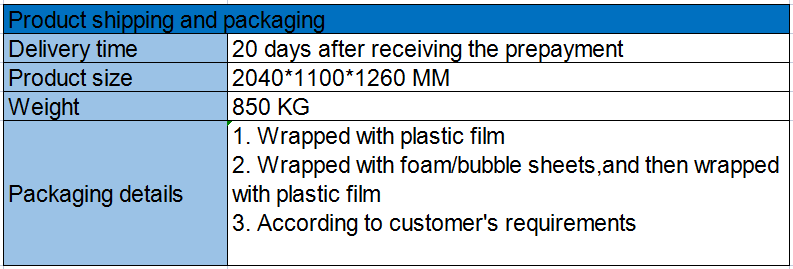

2. Q: Delivery time?
A: Generally 20 days after receiving the down payment.
3. Q: Service system?
A: One-year warranty, and we supply parts and service all the time. We supply telephone after-sales service, video service, and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
4. Q: What are the payment terms?
A:a.T/T (30% advance payment, remaining 70% payment before shipment) .
5. Q: Can we visit your factory?
A: Welcome to visit us! Every day we have customers from different countries. By now, we have exported to more than 30 countries customers.
