8 Feet Rotary Veneer Peeling Making Machine

Rotary cutting machine for face veneer, Rotary cutting machine for log dough under 2700mm. The minimum thickness of the veneer is 0.18 mm.

Veneer Output Speed:
Veneer Thickness:
Machine Size:
Quantity:
  • CS-8D2S2G1F
  • Changsheng
  • 8465960000

8 Feet Rotary Veneer Peeling Making Machine

Overview
face veneer peeling machine


Spindleless veneer peeling machine is used for make veneer .


Rotary cutting machine for face veneer, Rotary cutting machine for log dough under 2700mm. The minimum thickness of the veneer is 0.18 mm.


It is suitable for the Poplar, Eucalyptus etc.


Product Description

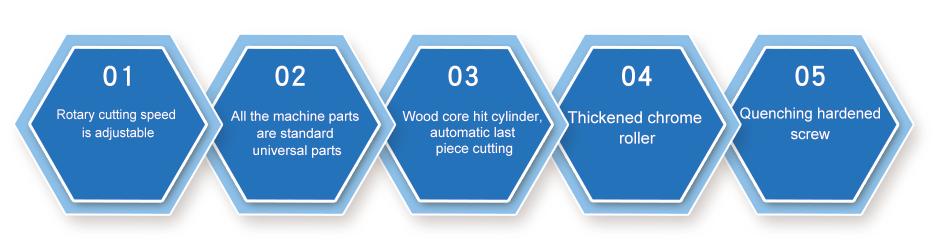

优势

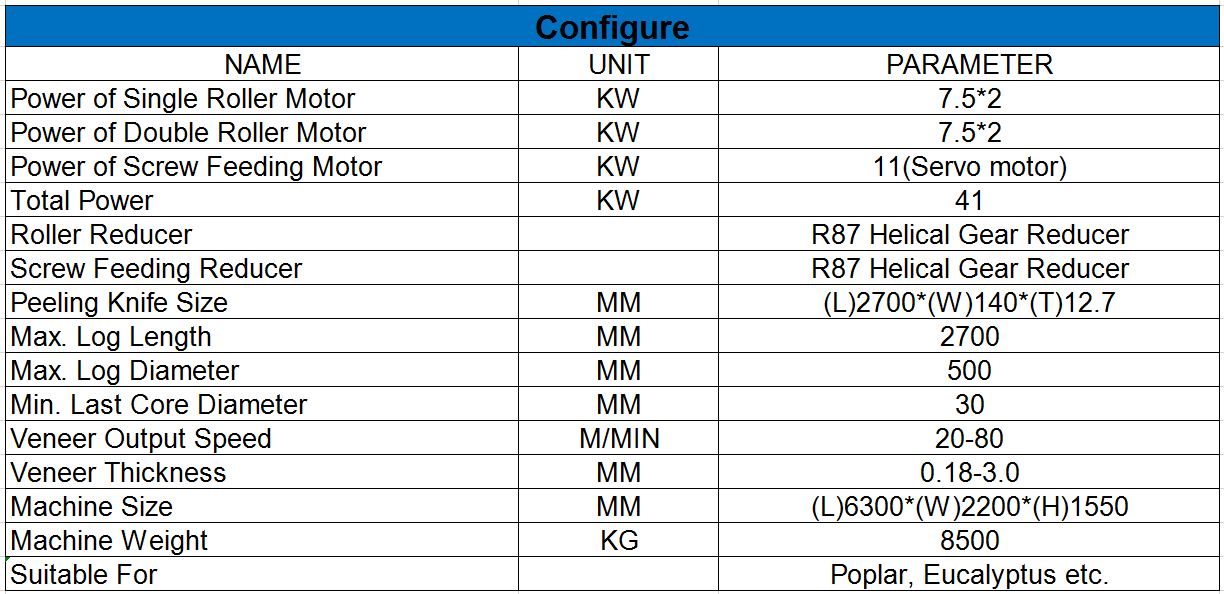

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 11(Servo motor)
Total Power KW 41
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Peeling Knife Size MM (L)2700*(W)140*(T)12.7
Max. Log Length MM 2700
Max. Log Diameter MM 500
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 20-80(Adjustable Speed)
Veneer Thickness MM 0.18-3.0
Machine Size MM (L)6300*(W)2200*(H)1550
Machine Weight KG 8500
Suitable For
Poplar, Eucalyptus etc.


Packaging & Shipping
发货-1


Delivery time is usually 20 days after receipt of advance payment.


Strentch film or according to customers requirement .


Our Services

微信图片_20190827161259

Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible


Company Information
company profile




      Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.


veneer production line

  In production technology, the company has 10 senior engineers, more than 30 technicians, more than 20 patents for machine innovation.In terms of production equipment, the company is equipped with plasma cutting machine, laser cutting machine, Lincoln brand carbon dioxide protection welder and other welding and cutting equipment.Our company has established friendly business cooperation relationship with Siemens electric, WEG electric, delta PLC, huichuan inverter and other famous brands to ensure the quality of our products.Now the main products are rotary cutting machine, log rounder, veneer stacking machine, knife grinder and dryer and other related equipment.Moreover, our company can provide a whole set of plywood production solutions to customers according to their needs.
