CS-8D2S1G1F
Changsheng
8465960000

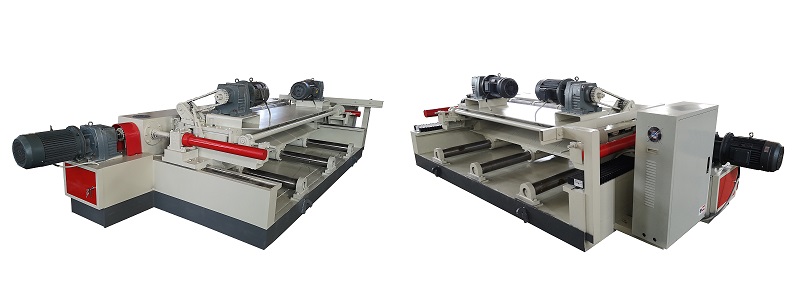

8 Feet Veneer Peeling Machine for Plywood
plywood machine: Spindleless veneer peeling machine is used for make veneer .
And it is suitable for the eucalyptus, pine, cotton wood and another log.
Rotary cutting speed can be customized.
Machine video

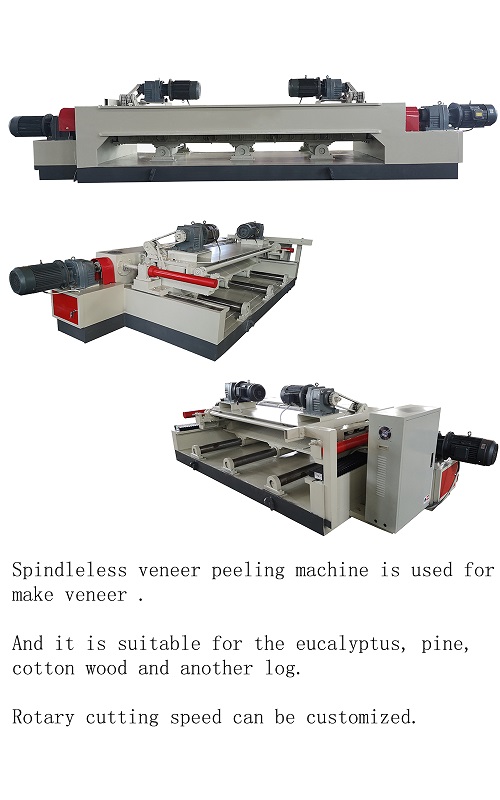

plywood machine : 8 feet veneer peeling machine
This 8-feet rotary cutter can be used for rotary cutting of hardwoods such as eucalyptus and miscellaneous wood.
The maximum diameter of logs that can be processed by this rotary cutter is 500 mm, and the maximum length of logs is 2700 mm.
The rotary cutting speed of this rotary cutter is 43/47/51/57, which can be customized according to your production requirements.
Configure
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5 |
| Power of Screw Feeding Motor | KW | 7.5 |
| Total Power | KW | 30 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Peeling Knife Size | MM | (L)2700*(W)140*(T)12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 500 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 43/47/51/57可定做can fixed speed |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | 6100*1800*1360 |
| Machine Weight | KG | 7000 |
| Suitable For | Eucalyptus, hybrid wood, etc. |
We have a professional installation team and after-sales team.
