CS-8D1S1G1F
Changsheng
8465960000
Spindle Less Rotary 8 Feet Plywood Veneer Peeling Machine
The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood. Veneer peeling machine is a very technical equipment in plywood line equipment.
This machine is specially designed for face veneer peeling. The minimum thickness can reach 0.18mm.
Machine video
Technical Details
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 11 |
| Total Power | KW | 41 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Peeling Knife Size | MM | (L)2700*(W)140*(T)12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 500 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 20-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.18-3.0 |
| Machine Size | MM | (L)6300*(W)2200*(H)1550 |
| Machine Weight | KG | 8500 |
| Suitable for | Poplar, Eucalyptus etc. |
More Products

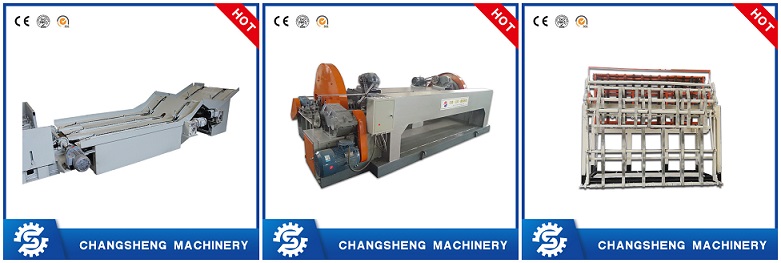

Wood automatic transmission equipment wood log debarker Swing-type veneer stacker

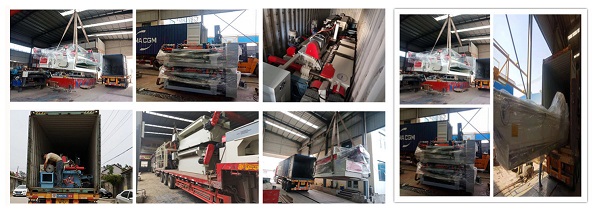

Transportation
package
| Packaging | |
| Machine Size | (L)6300*(W)2200*(H)1550 |
| Machine Weight | 8500 KG |
| Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Why Choose Us
7 peoples
We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.
20 years
We have been engaged in woodworking machinery for 20 years and have extensive industry experience.
365 days
We are waiting for your call for 365 days, providing you with services such as purchase and support.
3000 customers
More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.
10000 experiments
Our factory has conducted more than 10,000 innovative experiments since its inception.
Only to produce the most suitable equipment for the customer.

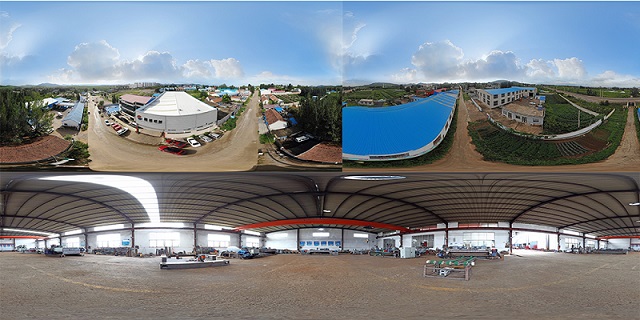

About Us
Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.
Changsheng Wood Machinery comes from China, serves all the world!
