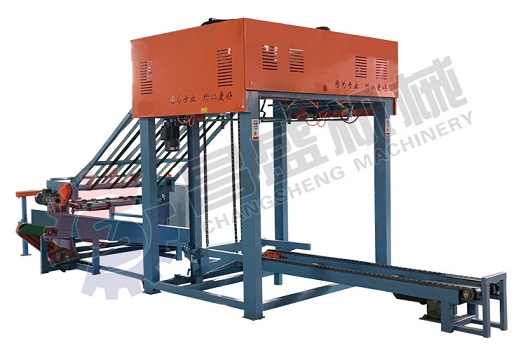

Automatic Wood Veneer Stacker for Wood Based Panels
This machine is used for the stacking of 1mm-4mm, the max stacking speed can reach 80m/min
1.It's function is to pile up the cut veneer automaticlly, commonly installed after veneer peeling machine to save labour cost and improving working efficiency.
2.High quality, the machine has been tested and upgraded several time, production sill mature and quality guaranteed
3.With First and Second Grade Veneer Grading and Sorting System."

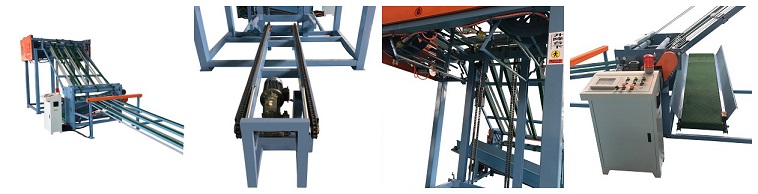

1. The veneers will be collected by a table lift and fed out by a motorized chain conveyor or roller type conveyor.The conveyor length and direction depend on the buyer's demands.
2.Controller that provides highly accurate stacking of sheets .
3.A user-friendly structure helps the operators spot any problems.
4.Plywood Veneer Stacker With First and Second Grade Veneer Grading and Sorting System to sort out second grade veneer and stack first grade veneer.
5.Saving labour cost. Without automatic veneer stacker, commonly need 2 persons for manual works to pile the cut veneer up. With this machine, the labour cost is saved and working efficiency increased.
All of our plywood machines can be customized according to your production requirement.
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
More than 20 years development'
Located in Linyi City, Shandong province,
One of the largest wood based panel production base in China.

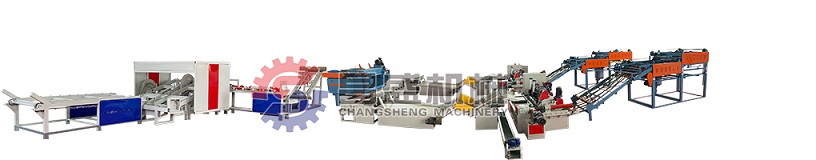

The main products include: rotary cutting machine, log rounding machine, veneer stacker, knife sharpener and dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
The products have been exported to more than 30 countries and regions including Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia and Gabon, and have been widely recognized and praised by customers at home and abroad.
Changsheng Wood Machinery comes from China, serves all the world!
