CS-8Z350-1
Changsheng
8465960000

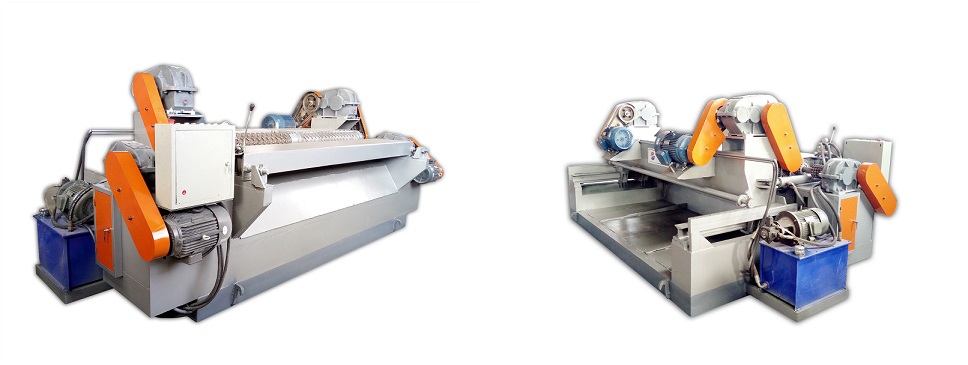

8 Feet Log Debarker Machine for Making Veneer
Plywood machine : 4ft and 8ft spindleless log debarker
It is a necessary machine in plywood product project,The purpose is to remove the bark from the tree logs and make log core round.
Usually the working width is 8ft, 6ft and 4ft.
With three sets of rollers, (double rows rollers + single row roller).

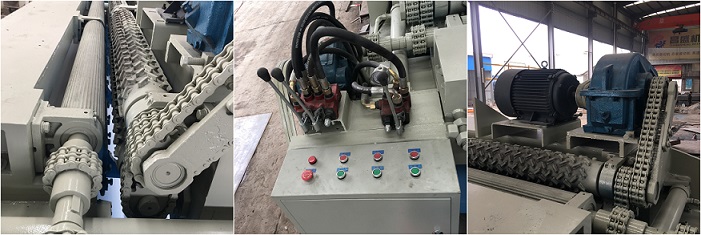

Advantages and core parts
1. Reasonable structure, easy operation and maintenance;
2. Equipment performance is stable, less wearing parts, long life;
3. Saving timber resources.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 11*2 |
| Power of Hydrualic Station | KW | 7.5 |
| Total Power | KW | 44.5 |
| Single Roller Reducer | 250*2 | |
| Double Roller Reducer | 350*2 | |
| Diameter of Single Roller | MM | 150 |
| Diameter of Double Roller | MM | 150/180/200 |
| Peeling Knife Size | MM | (L)2700*(W)140*(T)12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 80 |
| Machine Size | MM | (L）5200*(W)1900*(H)1600 |
| Machine Weight | KG | 8000 |
| Suitable For | Eucalyptus, hybrid wood, etc. |
Pre-sale services:
We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.
In-sale services:
Send technicians to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free.
After-sale services:
We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.
Q&A
Q: A FACTORY OR A DEALERS?
A: We are a factory more than 20 years in making wood based panel machines, not a dealers.

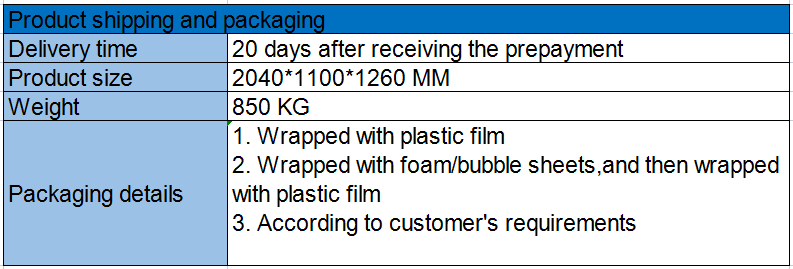

Q: DELIVERY TIME?
A: Generally 20 days after receiving the down payment.
Q: CAN WE GO TO VISIT YOUR FACTORY?
A:Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 20 countries customer.
Q: SERVICE SYSTEM?
A: One-year warranty, and we supply parts and service all the time.
Q: MOQ?
A: Our MOQ is 1 set.
Changsheng Wood Machinery comes from China, serves all the world!
