CS-8ZR87-1
Changsheng
8465960000

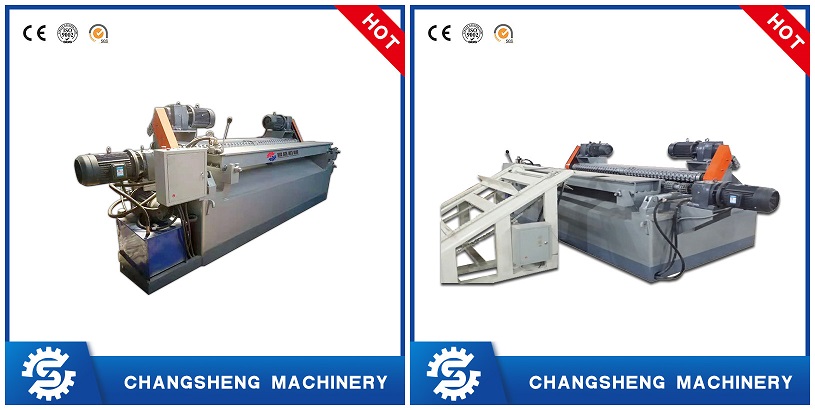

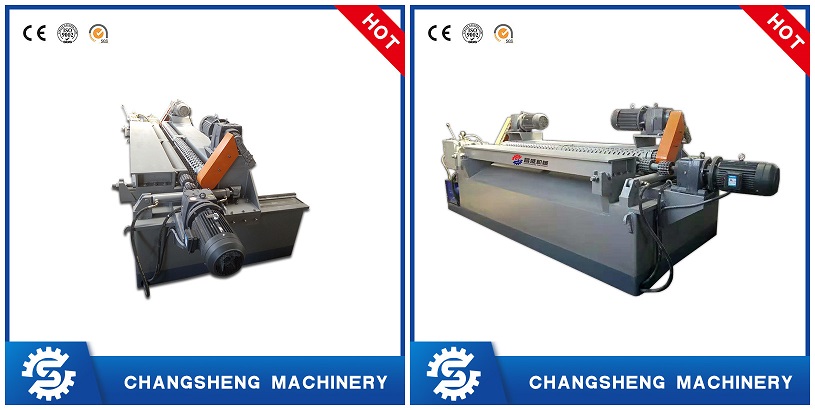

8 Feet Log Debarker Machine for Woodworking
Rounding machine is used for rounding of logs before veneer rotary cutting machine.
1. It is suitable for hardwood such as eucalyptus, cloned wood, mixed wood.
2.Hydraulic driven feed mechanism can quickly and effectively remove the bark of logs,
3.1 round finding machine can provide 2 sets of rotary cutting machine work.
4. It saves the original manual peeling and saves labor.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Hydraulic Station | KW | 7.5 |
| Total Power | KW | 37.5 |
| Single Roller Reducer | R87*2 helical gear reducer | |
| Double Roller Reducer | R87*2 helical gear reducer | |
| Diameter of Single Roller | MM | 150 |
| Diameter of Double Roller | MM | 150/180/200 |
| Peeling Knife Size | MM | (L)2700*(W)140*(T)12.7 |
| Max. Log Length | MM | 2700 |
| Max. Log Diameter | MM | 700 |
| Min. Last Core Diameter | MM | 60 |
| Machine Size | MM | (L)5700*(W)1900*(H)1800 |
| Machine Weight | KG | 8200 |
| Suitable For | Eucalyptus, hybrid wood, etc. |
1.It is heavy duty veneer peeling machine , machine weight up to 8200 KG , to guarantee the veneer quality . Suitable for Eucalyptus , Rubber and other hard wood .
2.Can be customized according to customer requirements.

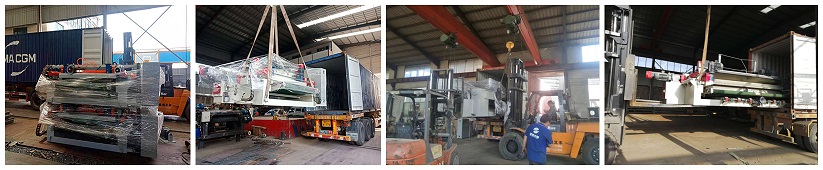

If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Other related products

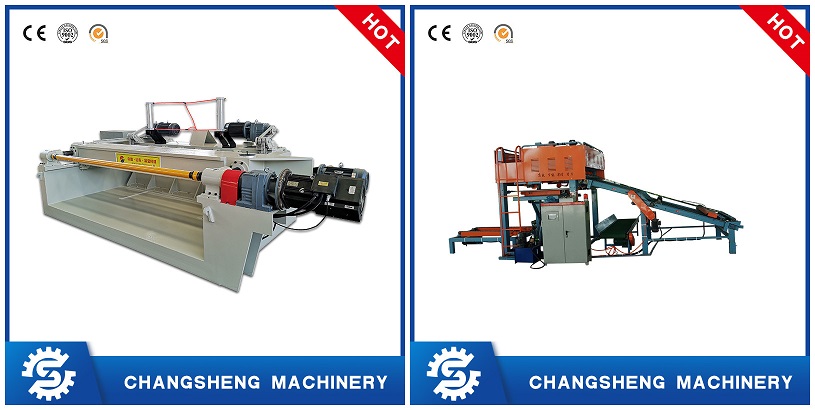

Veneer peeling machine Veneer stacker
Our services:
After Sale service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
Changsheng Wood Machinery comes from China, serves all the world!
