Spindle-less Veneer Peeling Machine Control Unit

Views:5     Author:Site Editor     Publish Time: 2019-06-11      Origin:Site

Today let us talk about the control unit of the veneer peeling machine produced by our company.

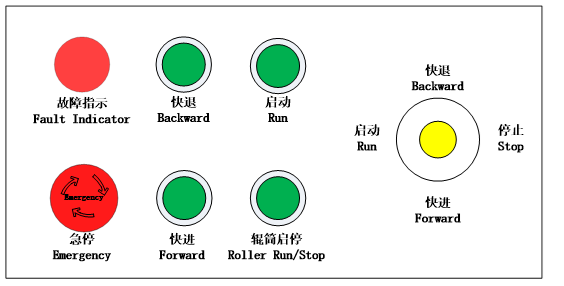

1. Control Panel Introduction

veneer peeling machine



Fault Indicator

When the system is running good, the indicator is lighting off; When the motor drive is fault, the indicator will always be lighting on; When the control system have some problem or notice some information, the indicator will be flashing, lighting on 0.5s, lighting off 0.5s.

Emergency

Press down the emergency button, the control stop all output and stop the machine, but will not cut off the power supply. When checking the machine, please cut off the main power supply.

Backward

Push this button to move the blade holder backward

Forward

Push this button to move the blade holder forward

Run

Running the feed and the clipper

Stop

Stop the feed

Roller Run/Stop


Push down this button for the first time, run the roller, Push down for the second time, Stop the roller

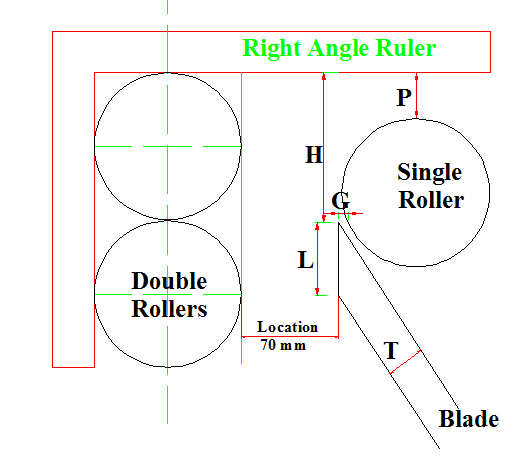

Machine Adjustment Rules

In order to get the evenness veneer, the machine need to be adjusted well, please follow the rules.


 Veneer peeling machine roller

G is automatic adjusted by the machine itself when the locaion of the blade holder is different, in this table G is the size when the location is 70mm.


2 Parameters List

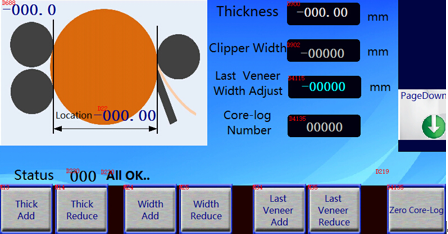

Touch screen display interface parameter list



Screen of veneer peeling machine


Screen of veneer peeling machine

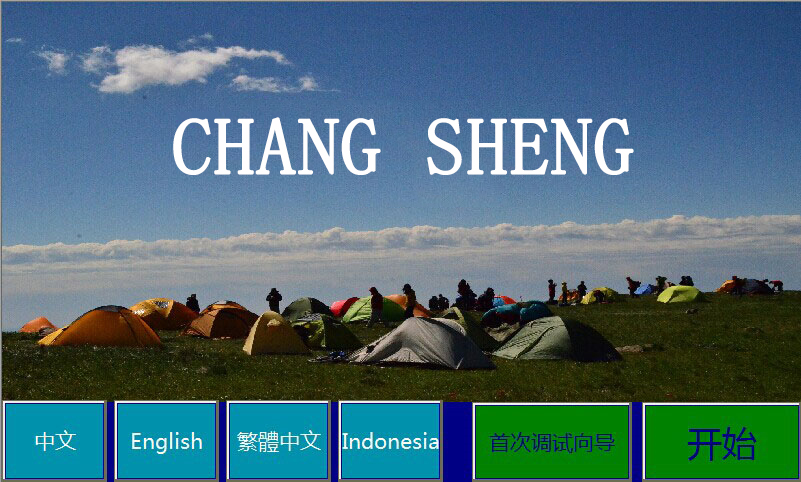

Language Selection

Boot screen as shown above, when you need to switch the language, click on the screen under the corresponding language selection buttons.



 Page

Parameter name


Display Parameters

1

Thickness,   width, tail plate, the number of Core-log, openings, work status, error code,   terminal input status.


2

Knife   sets opening, tail 2 length compensation, tail 3 length compensation,   software version, [function] position correction.


3

Peeling   Learn

1.Press   the [Set] button to enter the user parameter settings page 17.

2.Press   [System Status] button to enter the System Status to view page 4.

4

Input   output observation, Inching move test.


System Observation   Status

5

Output   frequency, work status, the highest frequency, the minimum diameter.


6

Communication   fault code, the number of communication failures.


7

Encoder   pulses.


8

PLC   work status.


9

Input   output observation, Inching move test.


User parameters

Page   3 Press the [SET] button to enter the user parameter settings.

17

Parameter   List 1.

In   the list, click on the corresponding parameters, jump to the screen   corresponding to the parameters, you can also change the parameter value   directly, and then the parameters would be modified.

18

Parameter   List 2.


19

Parameter   List 3.


20

The   thickness 1, the thickness 2, uniformity adjusting, thickness correcting.


21

Width   1, width 2, width correction.


22

The   remaining wood shaft, automatic retreat distance, maximum opening (display   only, can not be changed), fast forward and rewind frequency.


23

Roller   restart position, whether roll stop when back.


24

End   plate pressure roller depressed position, the pressure roller time, pressure   roller ban.

Automatic   pound axis position, pound axle time, pound-axis ban.

Transom   trimming delay value, edging ban.


25

Startup   mode, cycling mode, whether to stop work after jog feed.


26

tail   2 length compensation, tail 3 length compensation.

Knife   mode, a knife one stop operating frequency.


27

Roller   working frequency, roller acceleration time, start-up knife thickness   compensation.


28

Siamese   knife enabled, Siamese knife uptime, rotary cutter width compensation, rotary   cutter width correction.


29

End   plate thickness adjustment, adjust the length of the thickness, Last knife   inertia coefficient, knife inertia coefficient.


30

Run   password.


Mechanical parameters

Page   3 Press [Set] to enter the page 17, press [Advanced Parameters], select [Mechanical]   to enter the password.

38

Mechanical   parameter list 1


39

Mechanical   parameter list 2


40

Home   position, position encoder direction, position correction, no origin   proximity switch position correction.


41

Dual-stick   diameter, dual-stick center distance, Two cutting distance, roller encoder   pulses, dual-stick speed, knife transmission ratio.


42

Screw   pitch, position encoder pulse number, position encoder mounting position, the   maximum opening, the motor to the screw ratio, transmission ratio   self-learning.


43

Fast   forward stop position, velocity coefficient of roller, roller speed based,   automatic self-learning position.


44

Tail   2/3 compensation coefficient, system parameters 1.


45

Parameter   backup.


46

Run   password settings, lock time setting.


 We also have log debarker, veneer dryer and other plywood machines, if you have any need, please feel free to contact with us.Thanks.
