4 Feet High Speed Core Veneer Peeling Machine
Plywood Machine: 4 Feet Core Veneer Peeling Machine
This machine is used for the high speed rotary cutting of various hardness logs,the peeled veneers are with high flatness and evenness.This machine is the main model of exporting.
| Configure | ||
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 5.5*2 |
| Power of Double Roller Motor | KW | 5.5*2 |
| Power of Screw Feeding Motor | KW | 7.5(servo motor) |
| Power of Clipper Motor | KW | 1.5(servo motor) |
| Power of Rubber Roller Motor | KW | 1.5 |
| Total Power | KW | 32.5 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV90 | |
| Rubber Roller Reducer | RV90 | |
| Segments of Single Roller | 2 | |
| Segments of Double Roller | 2 | |
| Diameter of Single Roller | MM | 117 |
| Diameter of Double Roller | MM | 122 |
| Diameter of Rubber Roller | MM | 150 |
| Peeling Knife Size | MM | (L)1500*(W)180*(T)16 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 500（Can be customized 600） |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-90（Adjustable speed） |
| Veneer Thickness | MM | 0.5-2.0 |
| Machine Size | MM | (L)4700*(W)2100*(H)1700 |
| Machine Weight | KG | 6200 |
| Suitable For | Poplar, pine, radiata pine, Malacca wood, etc. | |
Product Description
 FEATURES: 1.Using servo motor drive precision screw feed.
2. Venner surface finish is good.
3. Change thickness of venner only need to enter the number of figures, needless to replace gear,high precision . 4. Power saving, simple operation, easy maintenance.
|
Machine details

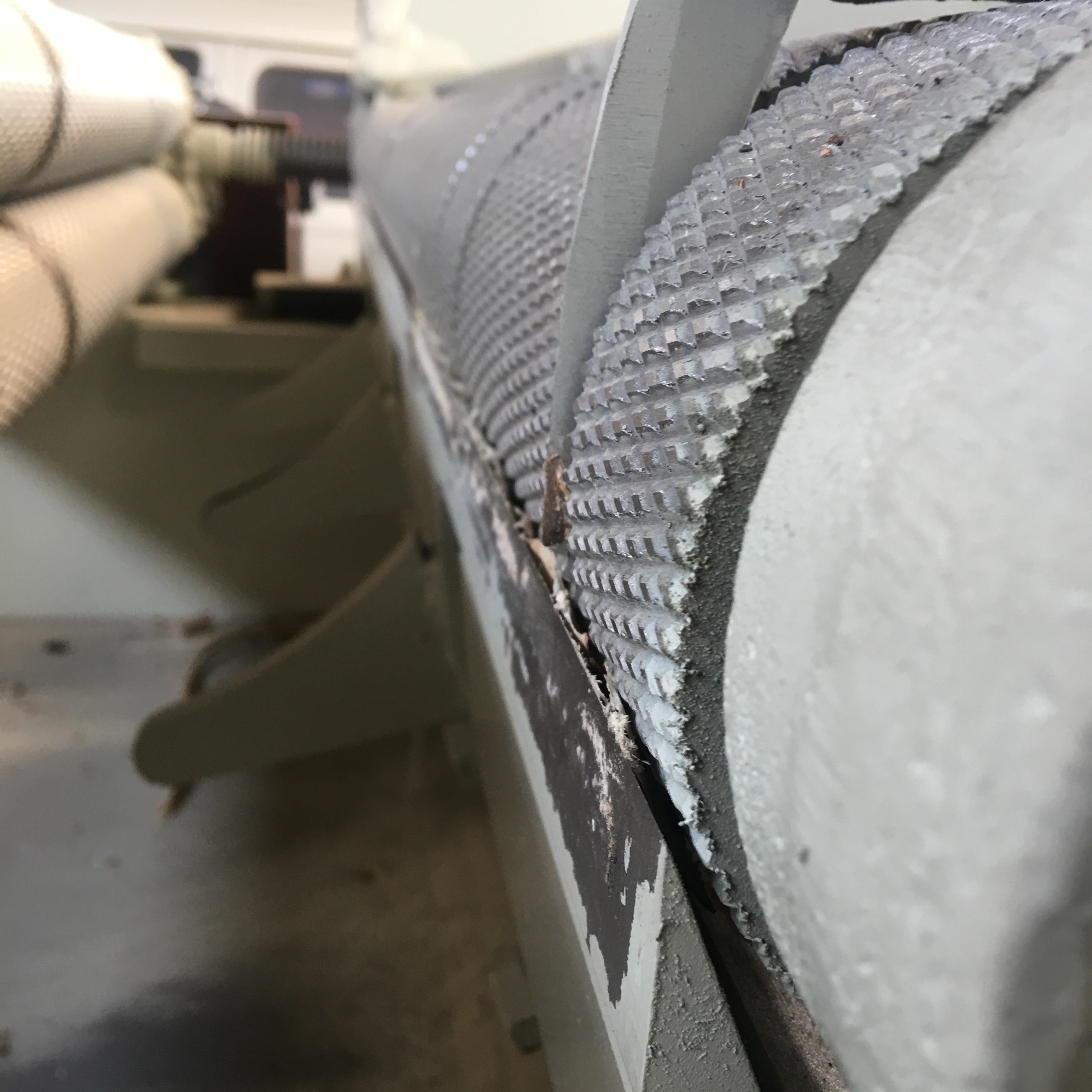

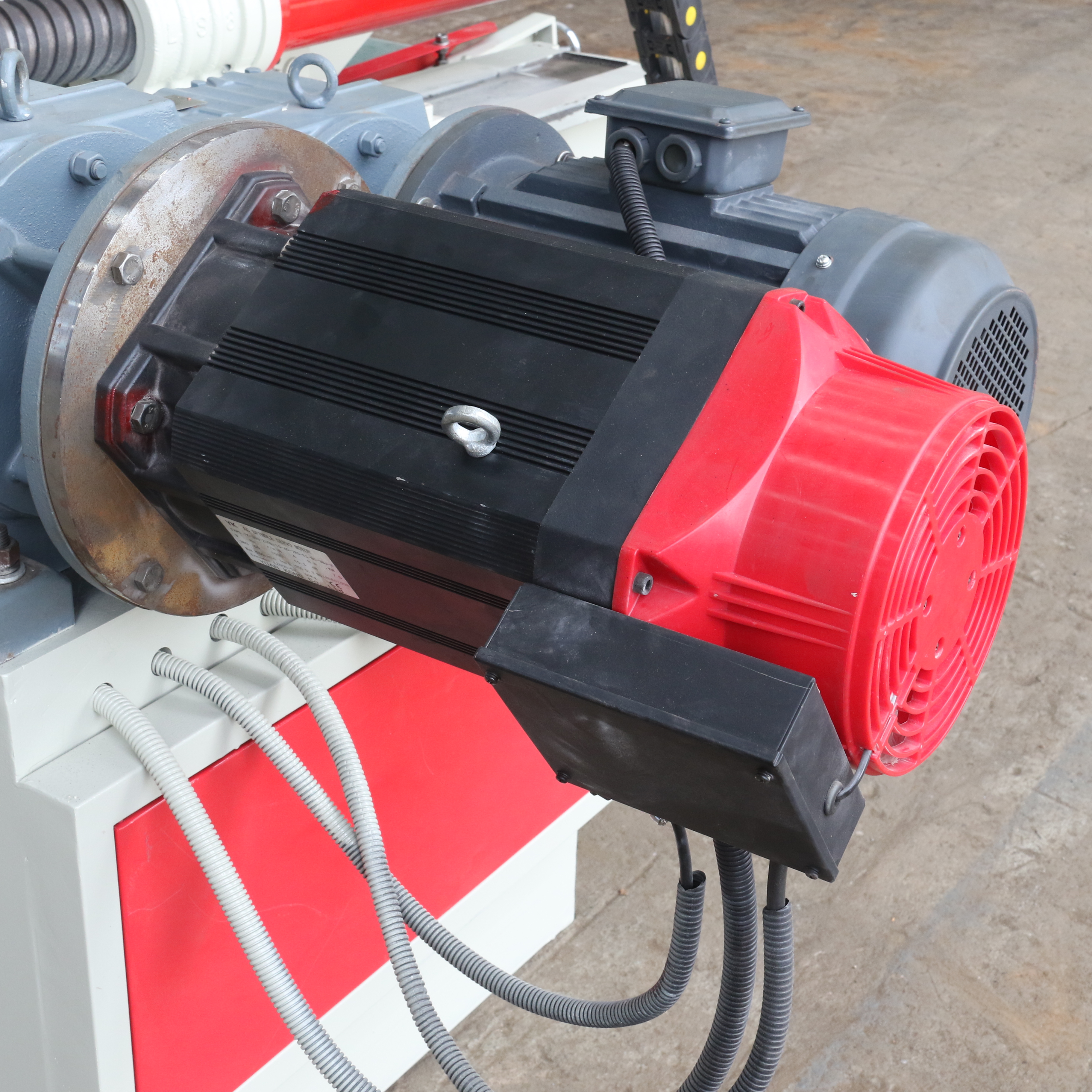

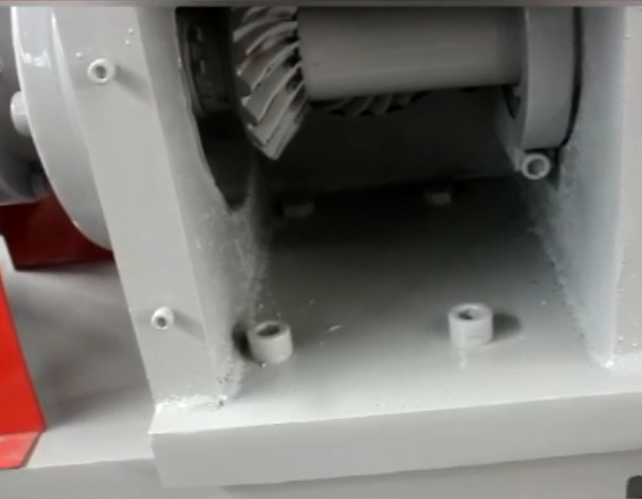

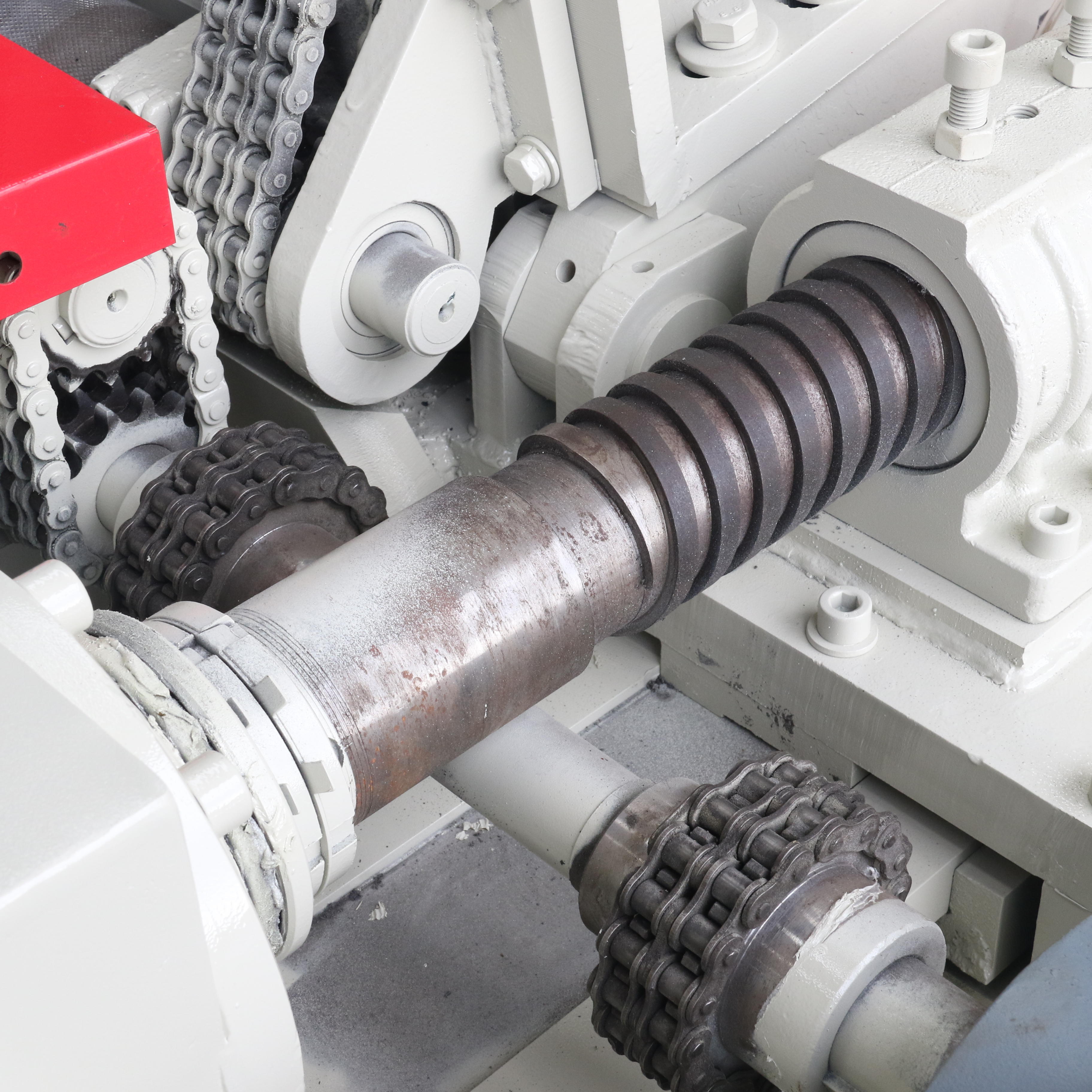

 Using servo motor drive precision screw feed. |  The screw rod processed by the quenching process is more sturdy and more durable |  Thickened chrome roller |  All mounting surfaces are machined surfaces, ensuring consistent and stable installation |
1.wrapped with plastic film. 2.wrapped with foam/bubble sheets,and then wrapped with plastic film. 3.according to customer's requirements. |
 Pre-sale services: 1) Provide the free consultation of the equipment 2) Provide the standard device and the flow chart 3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment. 4) Welcome to visit our factory Services during the sales: 1) Inspect the machine before leaving the factory. 2) Oversea install and debug the equipment 3) Train the first-line operator. After sale services: 1) 24 hours online service 2) Provide the VIDEO with Install and debug the equipment 3) Provide technical exchanging 4) Door to door service is possible |
7 peoples
We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.
20 years
We have been engaged in woodworking machinery for 20 years and have extensive industry experience.
365 days
We are waiting for your call for 365 days, providing you with services such as purchase and support.
3000 customers
More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.
10000 experiments
Our factory has conducted more than 10,000 innovative experiments since its inception.
Only to produce the most suitable equipment for the customer.
Changsheng Wood Machinery comes from China, serves all the world!
