Total Power: | |
---|---|
Max. Log Length: | |
Max. Log Diameter: | |
Availability: | |
Quantity: | |
CS-4PSZY-1
Changsheng
8465960000

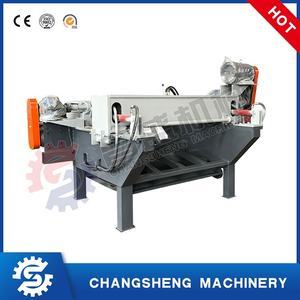

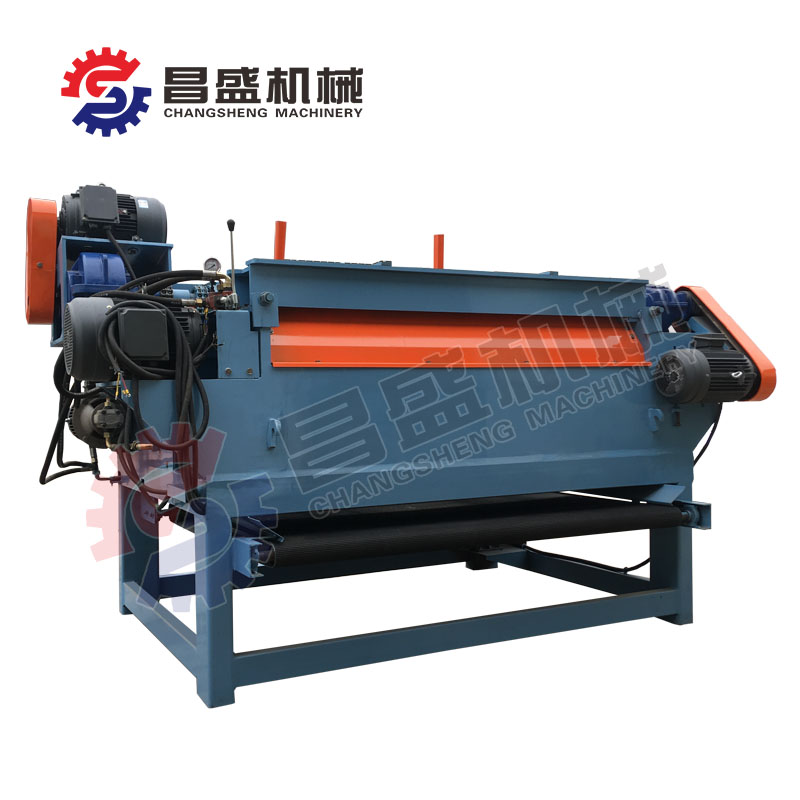

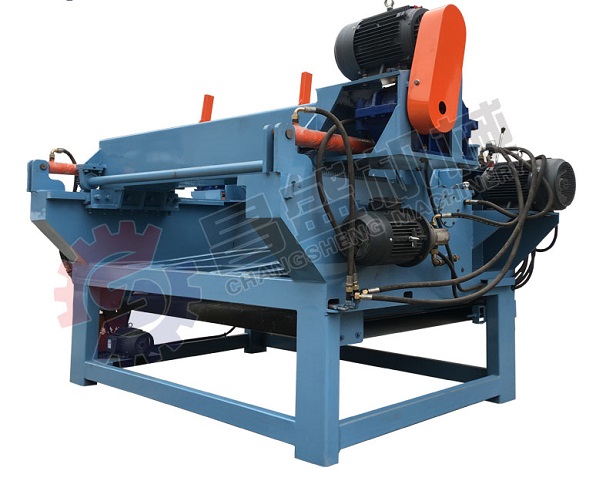

4 Feet Spindle Less Log Debarker for Sale
Used in the production of 4-foot plywood. Log debarker machine is used for peeling and rounding logs before veneer peeling. This machine is the main equipment of plywood production line. It is suitable for eucalyptus, hybrid wood, etc.. It can be quickly and effectively put into the logs to remove the bark and make it round.
|

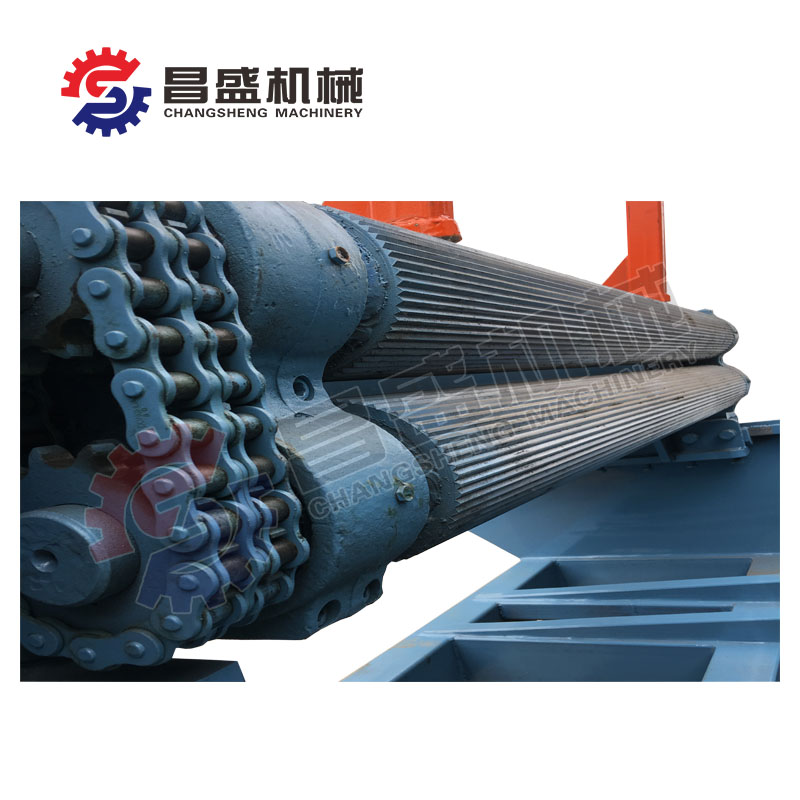

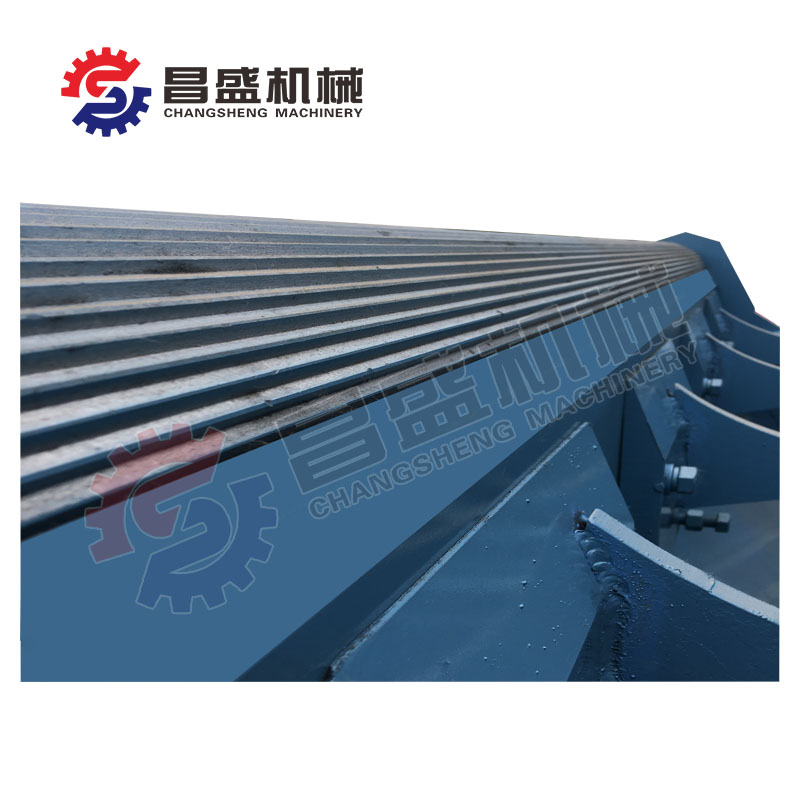

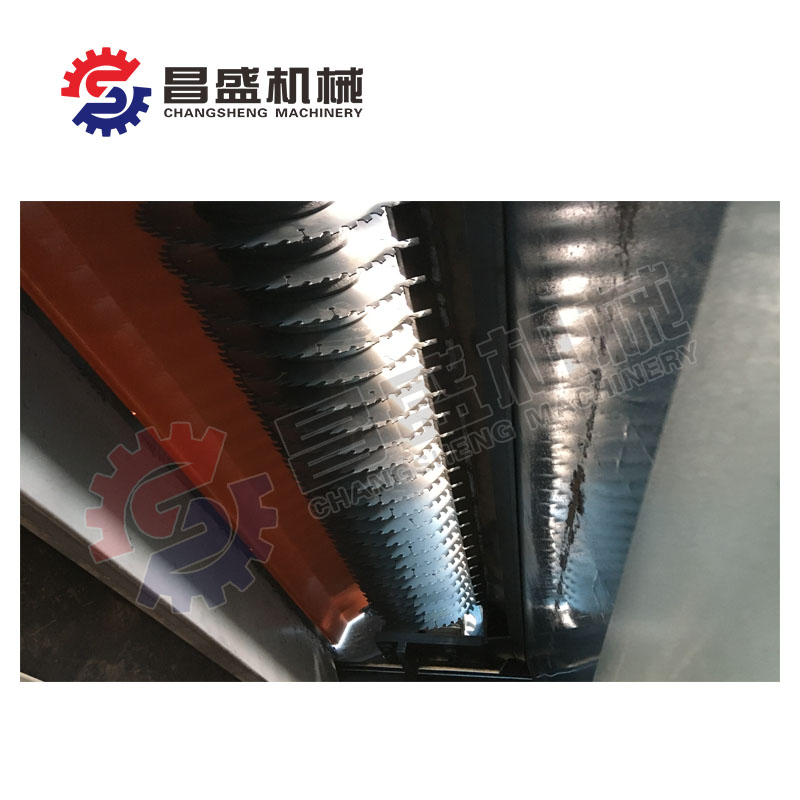

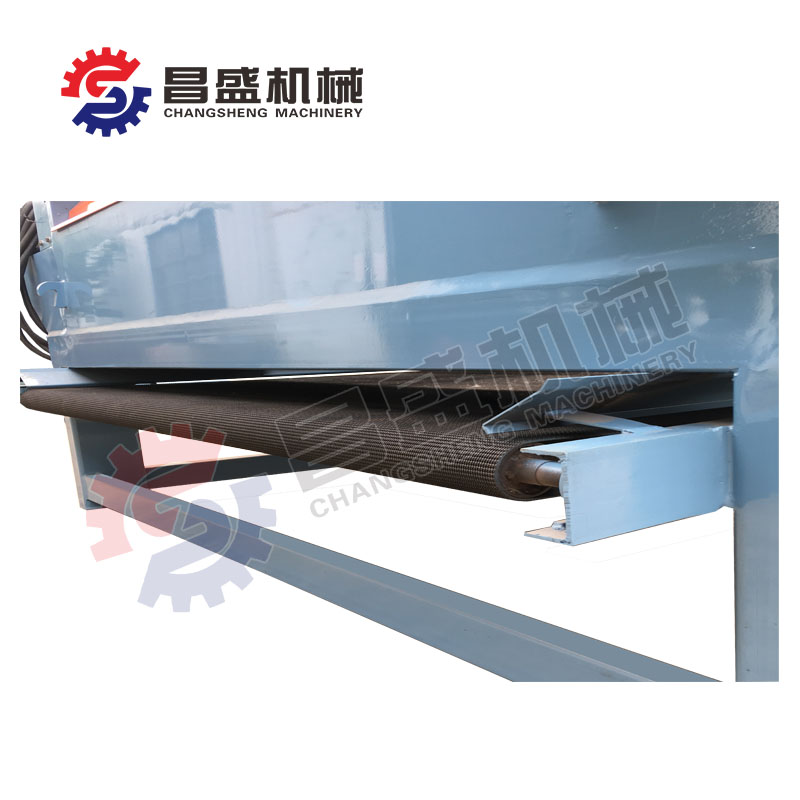

Single roller | Double roller | Saw blade | Conveyor |
The peeled bark can be crushed for further processing. Save raw materials.
NAME | UNIT | PARAMETER |
Power of Single Roller Motor | KW | 11 |
Power of Double Roller Motor | KW | 11 |
Power of Crusher Motor | KW | 11 |
Power of Bark conveyor Motor | KW | 1.5 |
Power of Log Pushing Motor | KW | 2.2 |
Total Power | KW | 36.7 |
Single Roller Reducer | 350 | |
Double Roller Reducer | 350 | |
Diameter of Single Roller Motor | MM | 150 |
Diameter of Double Roller Motor | MM | 150/180/200 |
Size of Peeling Knife | MM | (L)1500*(W)140*(T)12.7 |
Max. Log Length | MM | 1500 |
Max. Log Diameter | MM | 700 |
Minimum Log Diameter | MM | 60 |
Machine Size | MM | (L)4500*(W)1800*(H)1350 |
Machine Weight | KG | 4000 |
Suitable For | Eucalyptus, hybrid wood, etc. |
Can be customized according to customer requirements.

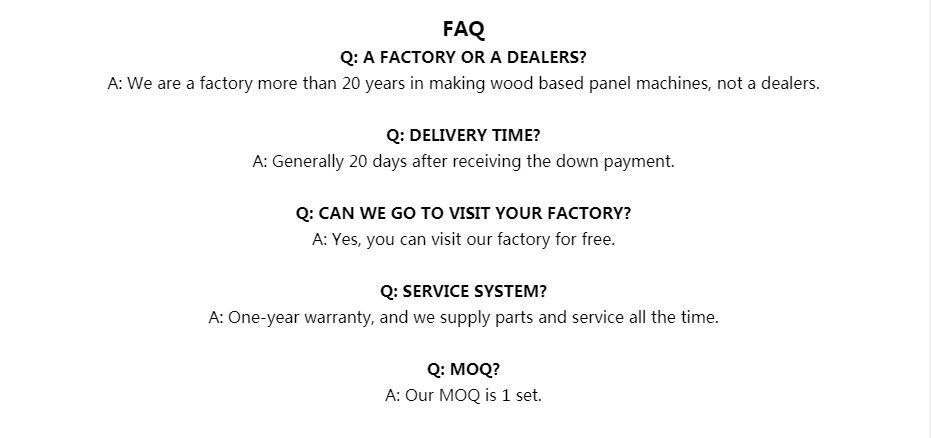

DELIVERY TIME :Generally 20 days after receiving the down payment.

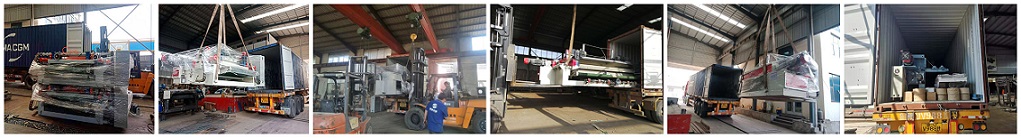

We can provide different packaging according to customer requirements.
Pre-sale services: |
1) Provide the free consultation of the equipment |
2) Provide the standard device and the flow chart |
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment. |
4) Welcome to visit our factory |
Services during the sales: |
1) Inspect the machine before leaving the factory. |
2) Oversea install and debug the equipment |
3) Train the first-line operator. |
After sale services: |
1) 24 hours online service |
2) Provide the VIDEO with Install and debug the equipment |
3) Provide technical exchanging |
4) Door to door service is possible |
Shandong changsheng wood machinery co., ltd. is located in China's largest wood-based panel production base in linyi city, shandong province.After more than 20 years of continuous development, now changsheng wood machinery has become a set of plywood production machinery design, development, production and installation as one of the modern company.
In production technology, the company has 10 senior engineers, more than 30 technicians, more than 20 patents for machine innovation.In terms of production equipment, the company is equipped with plasma cutting machine, laser cutting machine, Lincoln brand carbon dioxide protection welder and other welding and cutting equipment.Our company has established friendly business cooperation relationship with Siemens electric, WEG electric, delta PLC, huichuan inverter and other famous brands to ensure the quality of our products.Now the main products are rotary cutting machine, log rounder, veneer stacking machine, knife grinder and dryer and other related equipment.Moreover, our company can provide a whole set of plywood production solutions to customers according to their needs.
