CS-4D1S2G1-2
Changsheng
8465960000

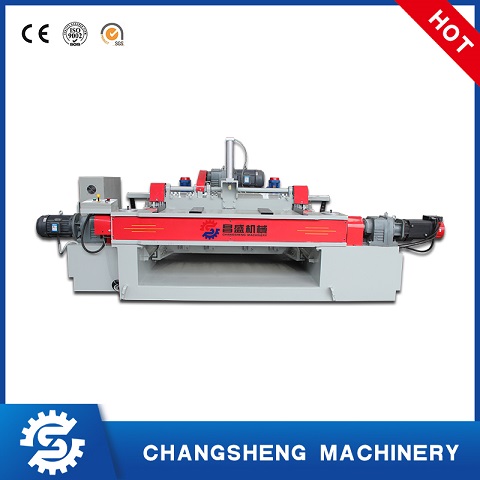

4 Feet Spindle Less Wood Veneer Rotary Peeling Machine
This machine can be used for the rotary cutting of softwood and hardwood with diameter lower than 500mm.The peeling speed can be adjusted. | |
1. CNC rotary peeling machine 2. Easy adjust knife seam function and convenient disassembly. 3. Cutting diameter 500mm . 4. An advanced CNC system ensures the veneers cut uniformly with a thickness tolerance of ± 0.05mm 5. It is equipped touch screen , very convenient to change thickness and other parameters . 6. A two-in-one structure, peeling and cutting together, reduces both the space and operators.Your costs is greatly lowered. 7. Automatic speed down when peeling end. The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood. veneer peeling machine is a very technical equipment in plywood line equipment. |
1.Various sizes are 4 feet, 6 feet, 8 feet, etc.
2.This is one of our machines, we can also design and manufacture machines according to your requirements
our company can provide customers with a complete set of plywood production solutions according to customer needs. |
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 7.5/11(servo motor) |
| Power of Clipper Motor | KW | 1.5 |
| Power of Rubber Roller Motor | KW | 1.5 |
| Total Power | KW | 33/36.5 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV90 | |
| Rubber Roller Reducer | RV90 | |
| Segments of single roller | 2 | |
| Segments of double roller | 2 | |
| Diameter of single roller | MM | 117 |
| Diameter of double roller | MM | 122 |
| Diameter of rubber roller | MM | 150 |
| Peeling Knife Size | MM | (L)1500*(W)140/160*(T)12.7 |
| Max. Log Length | MM | 1500 |
| Max. Log Diameter | MM | 500 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 23-60(Adjustable speed ) |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | （L)4450*(W)2100*(H)1700 |
| Machine Weight | KG | 6500 |
| Suitable For | Poplar, eucalyptus etc. |
plywood veneer production line
wood veneer peeling machine is important equipment in plywood production line and venner production line. It main to peeling off small diameter (max diameter to 700mm),wood and peeling plywood core plate, automatic peeling, cutting veneer, fast. Veneer size can be change, fully automated production. For eucalyptus, hybrid wood, etc. and so on.
 1.Pre-sale 1.Free consultation about the equipment. 2.Reasonable purchasing plan and the production line designing plan are offered according to the clients' special requirment to help you to select the most suitable ma.chinery. 3.Welcome to visit our factory and check our machine 2.During-sales 1.We inspect and test the machine before delivery. 2.We are willing to freely tran your technicist and first-line operator. 3.After-sales 1.Engineers are available to service overseas. 2.Videos about installing and debuging the equipment. |
