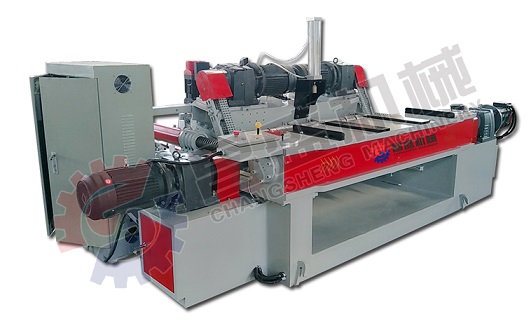

Automatic 4 Feet Hardwood Veneer Peeling Machine

Spindleless veneer peeling machine is one of the equipment for producing plywood. It is suitable for continuous cutting of the remaining wood core with a card rotary cutter, and can also be used for wood with a diameter less than 700 mm.

weigth ( KG):
Max. Log Diameter ( MM):
Quantity:

Automatic 4 Feet Hardwood Veneer Peeling Machine


Basic Info.

Origin: Shangdong , China
Model NO. CS-4D2S2G11R-1
Total Weight 7500 KG
Total Power 41.2/44.7 KW


Spindleless veneer peeling machine is one of the equipment for producing plywood. It is suitable for continuous cutting of the remaining wood core with a card rotary cutter, and can also be used for wood with a diameter less than 700 mm.

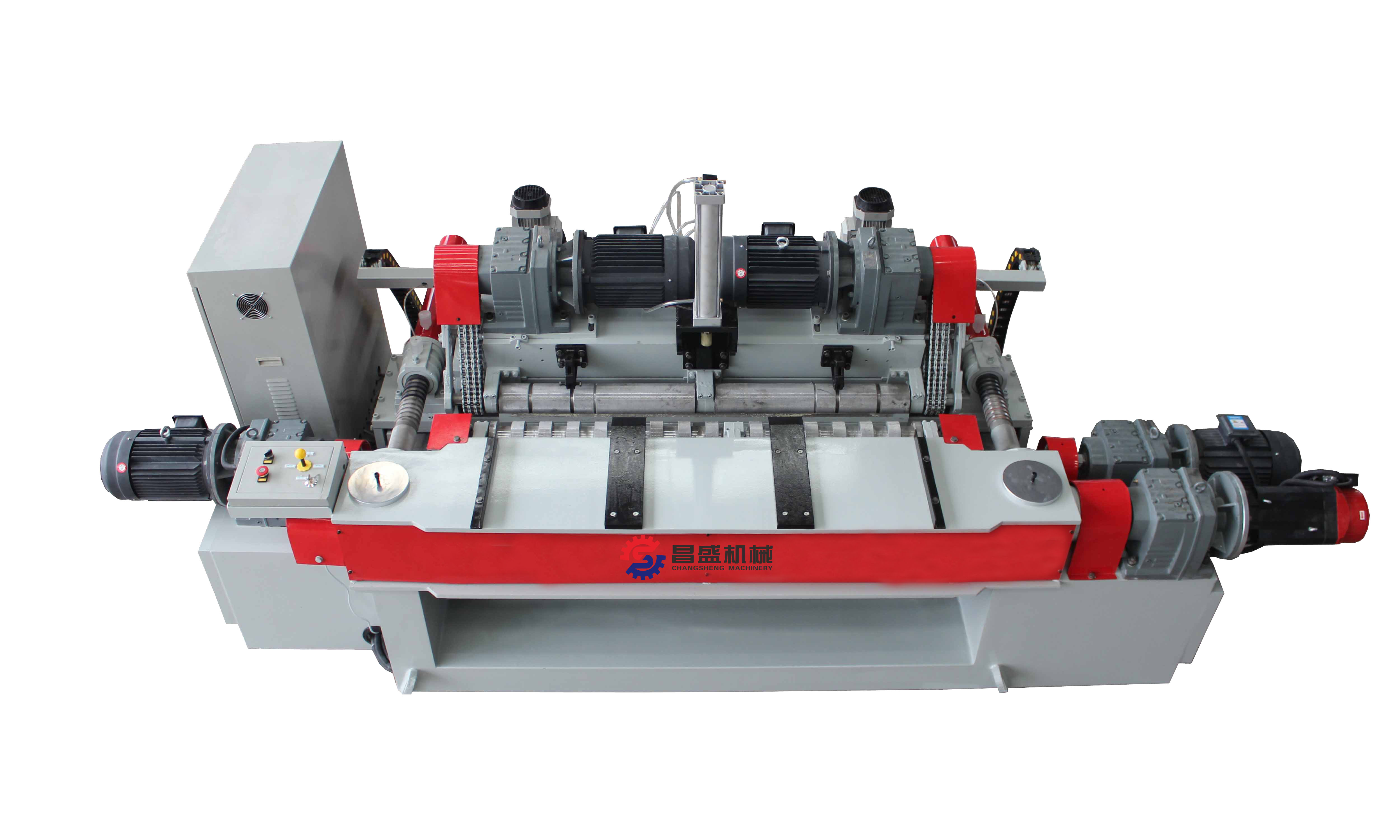

4 feet plywood veneer peeling machine

    This machine is used for the high speed rotary cutting of various hardness logs,the peeled veneers are with high flatness and evenness.This machine is the main model of exporting.

    The advantages of the 4-feet  spindleless rotary cutting machine are as follows: 1. The thickness of the processed wooden board is uniform and the surface is smooth; 2. The structure is reasonable and the operation and maintenance are convenient; 5, artificial technology is not high, in the normal peeling machine, the error is within 0.1mm.



Machine details

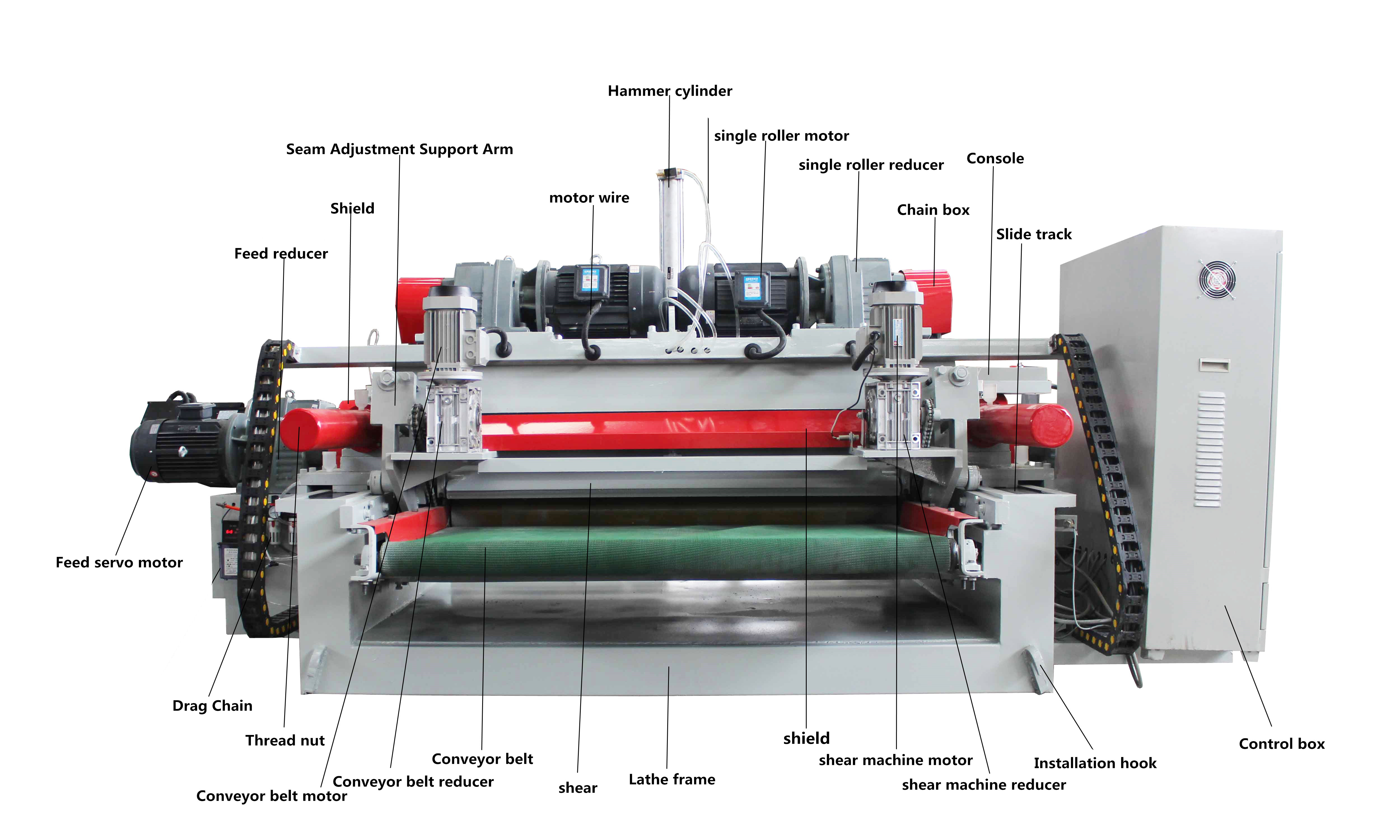

4 Feet Spindle Less High Speed Venner Peeling Machine 05

rotary veneer peeling machine

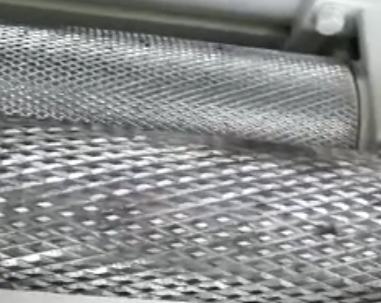

The roller is made of round steel and is quenched and chrome-plated to ensure the wear resistance of the roller surface pattern.


veneer rotary cutting machine

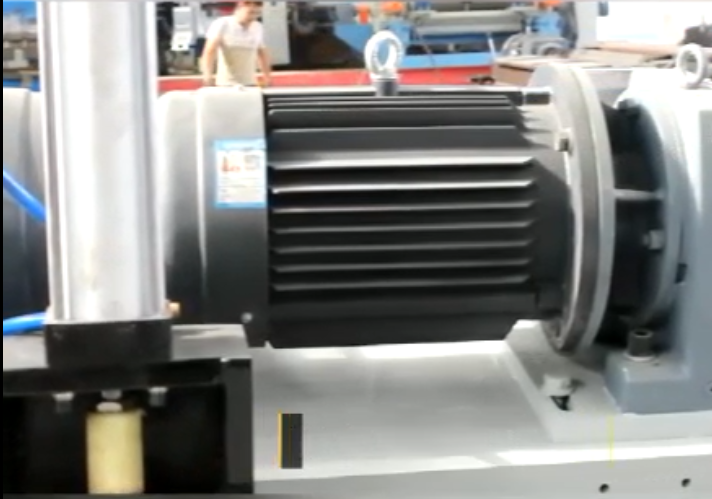

Single and double rollers all adopt double drive


rotary veneer peeling machine

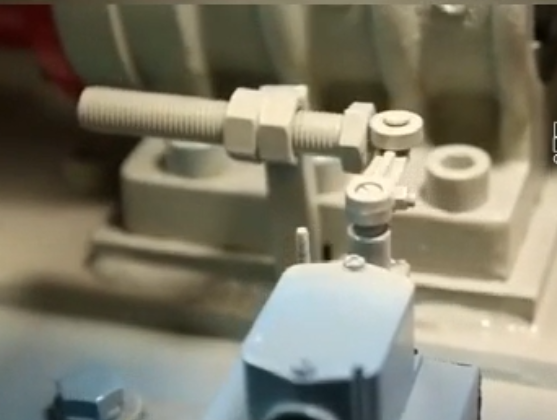

Position switch precision guidance


veneer peeling machine



Adjustable tomcat height

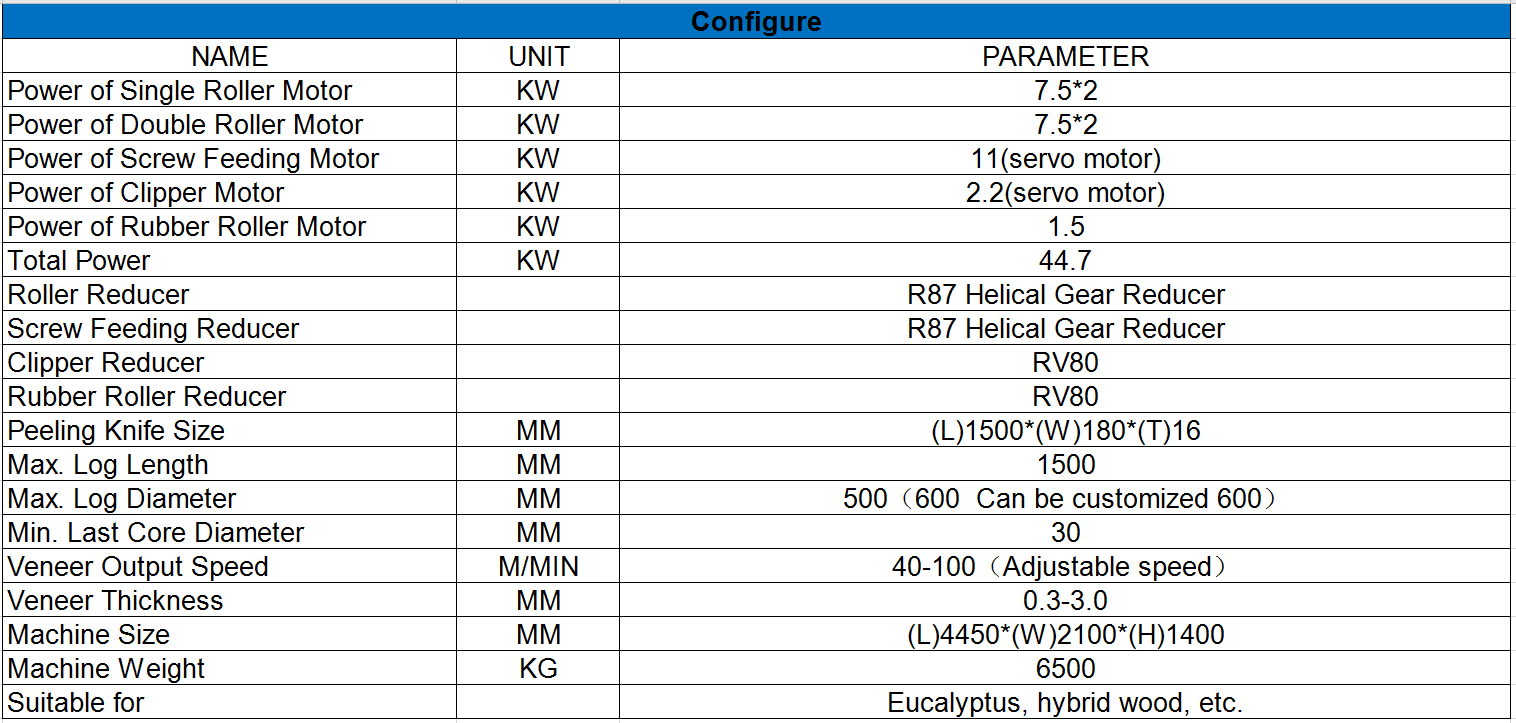

Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 7.5/11(servo motor)
Power of Clipper Motor KW 2.2(servo motor)
Power of Rubber Roller Motor KW 1.5
Total Power KW 41.2/44.7
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV90
Rubber Roller Reducer
RV90
Segments of Single Roller
3
Segments of Double Roller
2
Diameter of Single Roller MM 117
Diameter of Double Roller MM 122
Diameter of Rubber Roller MM 150
Peeling Knife Size MM (L)1500*(W)180*(T)16
Max. Log Length MM 1500
Max. Log Diameter MM 500(Can be customized 600)
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-120(Adjustable speed)
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4700*(W)2100*(H)1700
Machine Weight KG 7500
Suitable For
Eucalyptus, hybrid wood, etc.


Production of plywood veneer


plywood veneer peeling machine


木材

Why choose us

2_副;;本



7 peoples

We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.



20 years

We have been engaged in woodworking machinery for 20 years and have extensive industry experience.



365 days

We are waiting for your call for 365 days, providing you with services such as purchase and support.



3000 customers

More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.



10000 experiments

Our factory has conducted more than 10,000 innovative experiments since its inception.

Only to produce the most suitable equipment for the customer.


公司简介-3

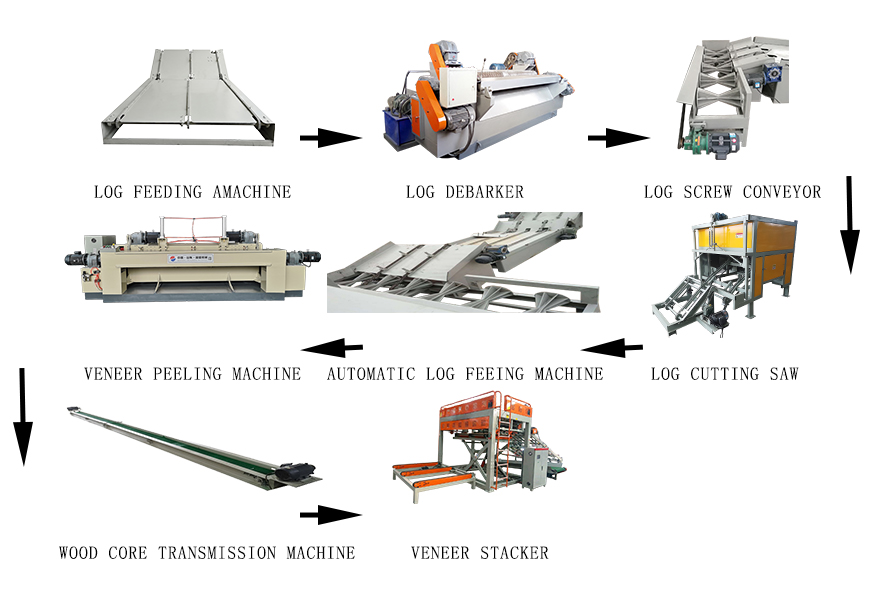

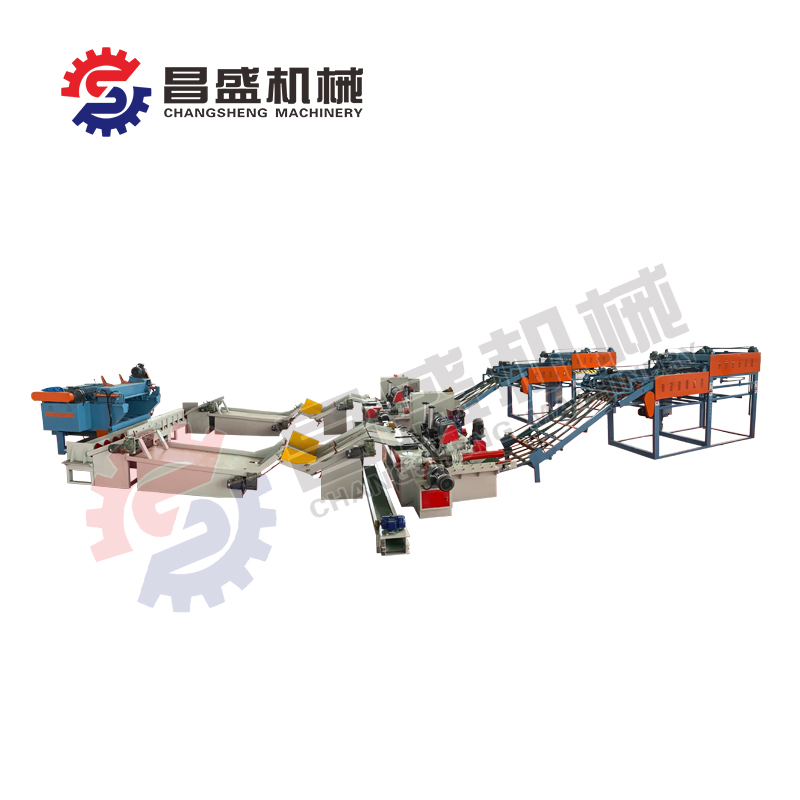

plywood veneer production line





Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.



About service


Pre-sale services:

1) Provide the free consultation of the equipment

2) Provide the standard device and the flow chart

3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

4) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible

plywood veneer production line
